Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tire Pressure Warning System

7 part groups · 2 illustrations

Illustrations

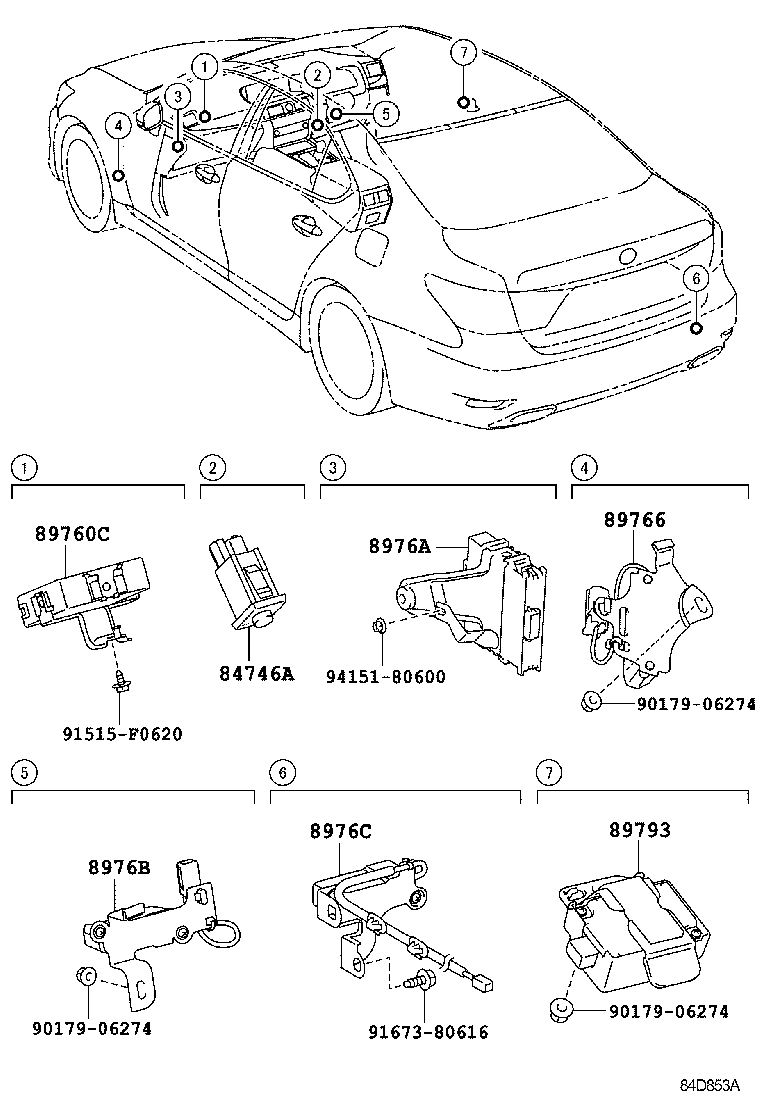

Figure 84D854 84D854 2012-09 → — Figure 84D853A 84D853A 2012-09 → —

Part groups

PNCDescription
84746A Switch, Tire Pressure Warning, NO.1
89760C Receiver Assy, Tire Pressure Monitor
89766 Antenna, Tire Pressure, Front LH
8976A Driver, Tire Pressure Monitor Initiator
8976B Initiator, Tire Pressure Monitor Front
8976C Initiator, Tire Pressure Monitor Rear
89793 Antenna, Tire Pressure Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
