Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03

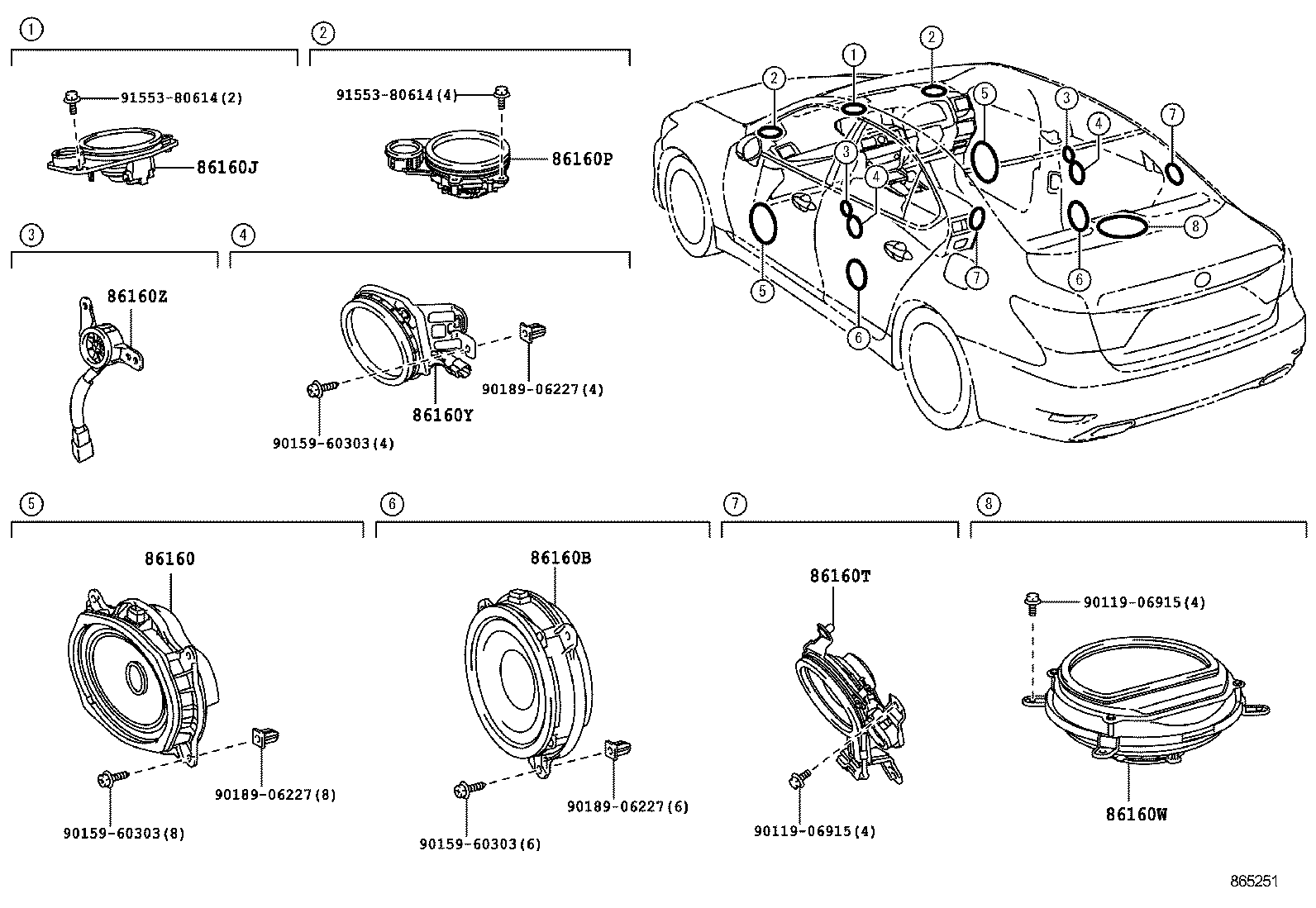

Speaker
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160T | Speaker Assy, Rear Header |
| 86160W | Speaker Assy, Stereo Component, Floor |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86160Z | Speaker Assy, Rear NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
