Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03

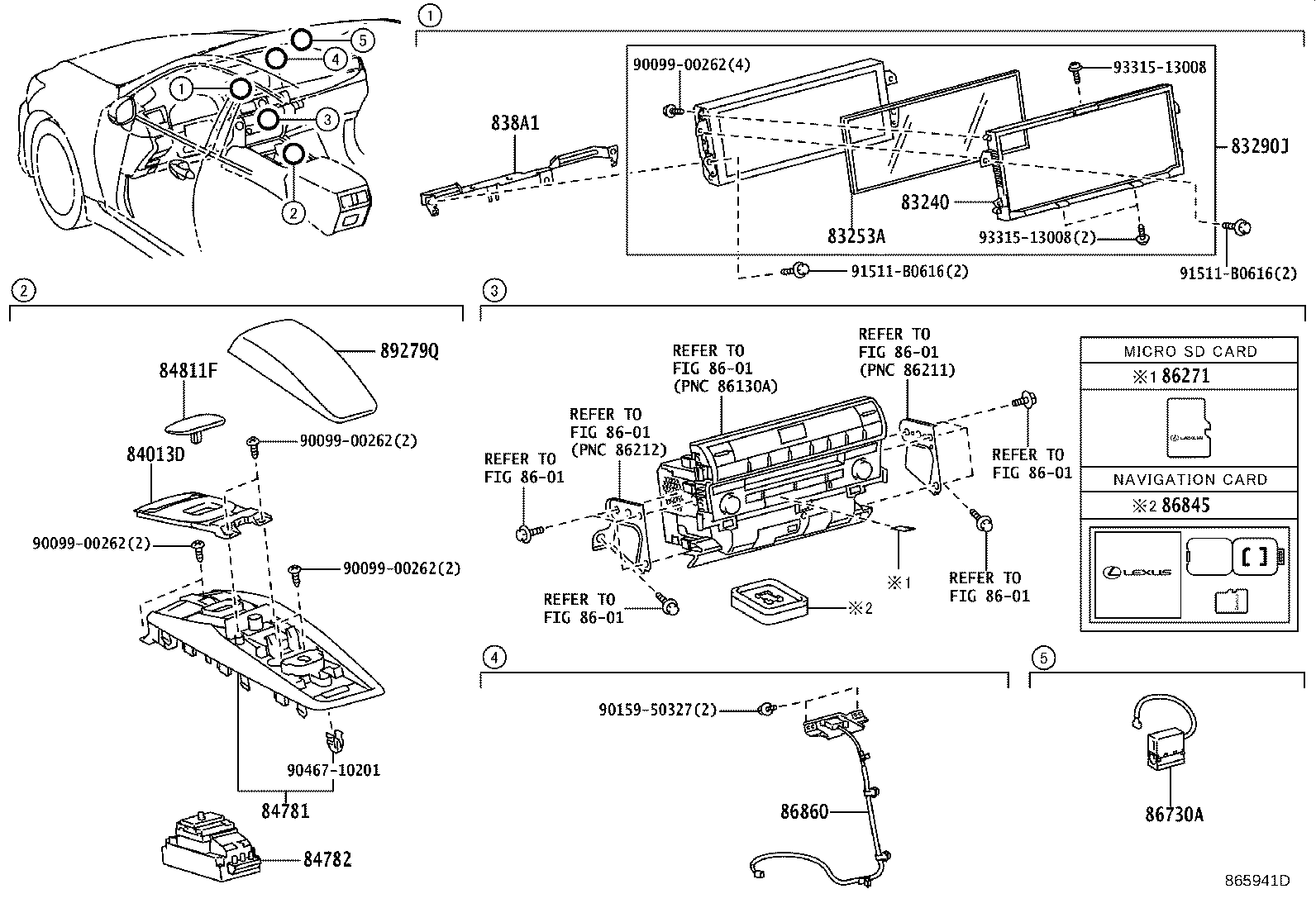

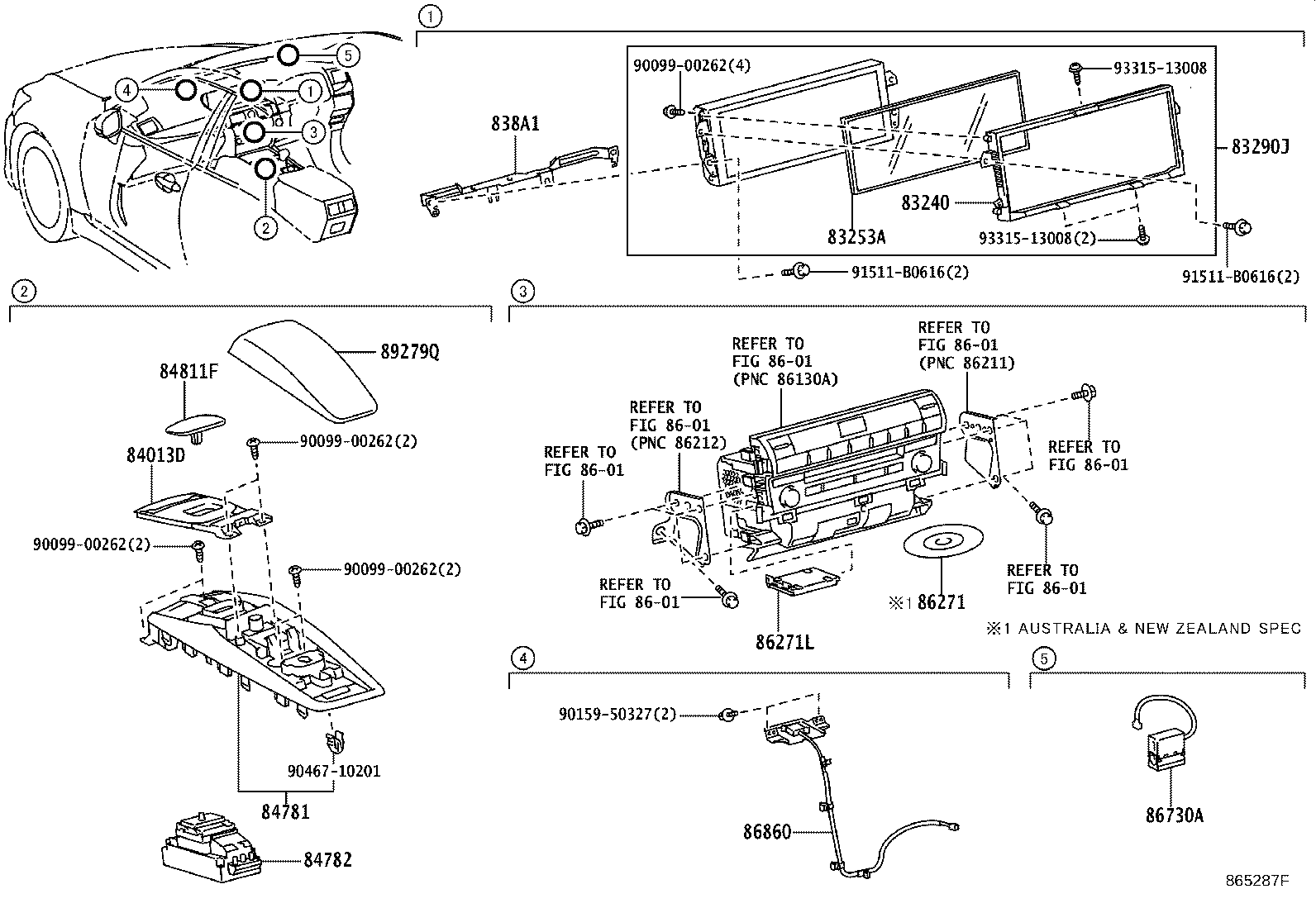

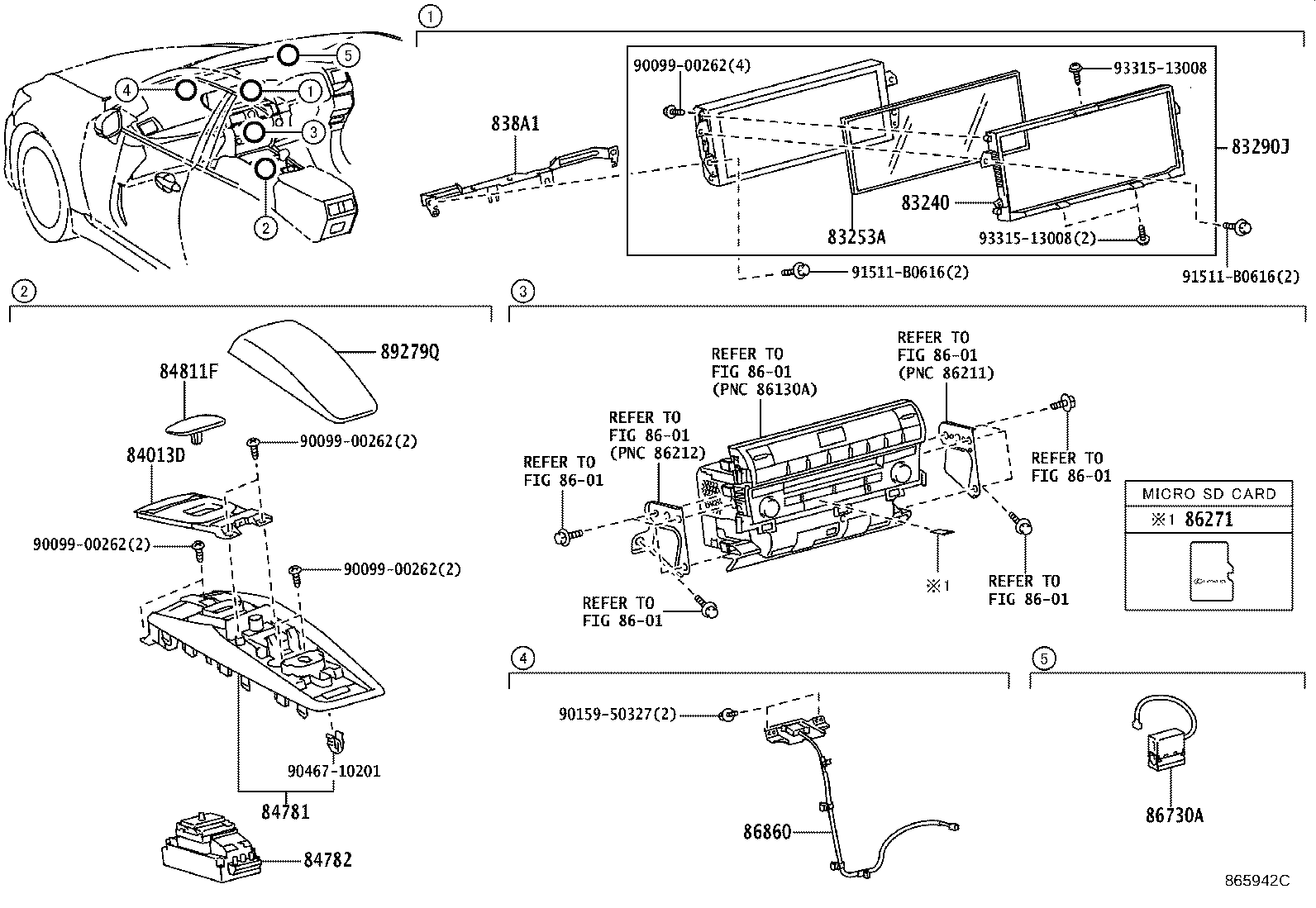

Navigation & Front Monitor Display
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83240 | Case Assy, Multi Information Display |
| 83253A | Glass, Accessory Meter |
| 83290J | Meter Assy, Accessory |
| 838A1 | Bracket, Combination Meter |
| 84013D | Panel Sub-assy, Integration |
| 84781 | Switch, Remote Operation |
| 84782 | Board, Remote Operation |
| 84811F | Knob, Switch |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86730A | Microphone Assy, Telephone |
| 86845 | Card, Navigation |
| 86860 | Antenna Assy, Navigation |
| 89279Q | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
