Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

Figure 87D277C

87D277C 2012-09 → —

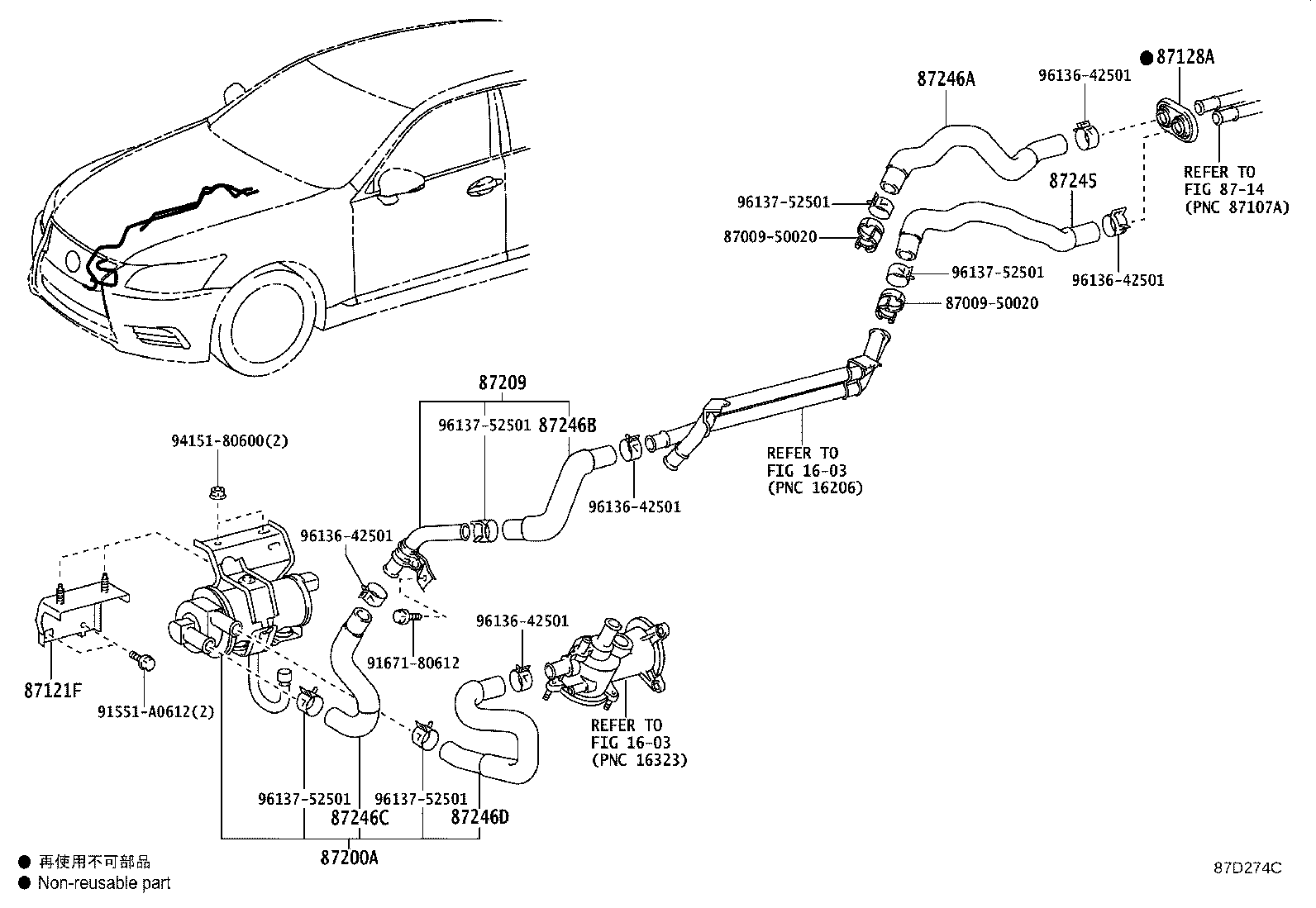

Figure 87D274C

87D274C 2012-09 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87128A	Grommet, Heater
87200A	Pump Assy, Water(FOR HEATER)
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
