Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

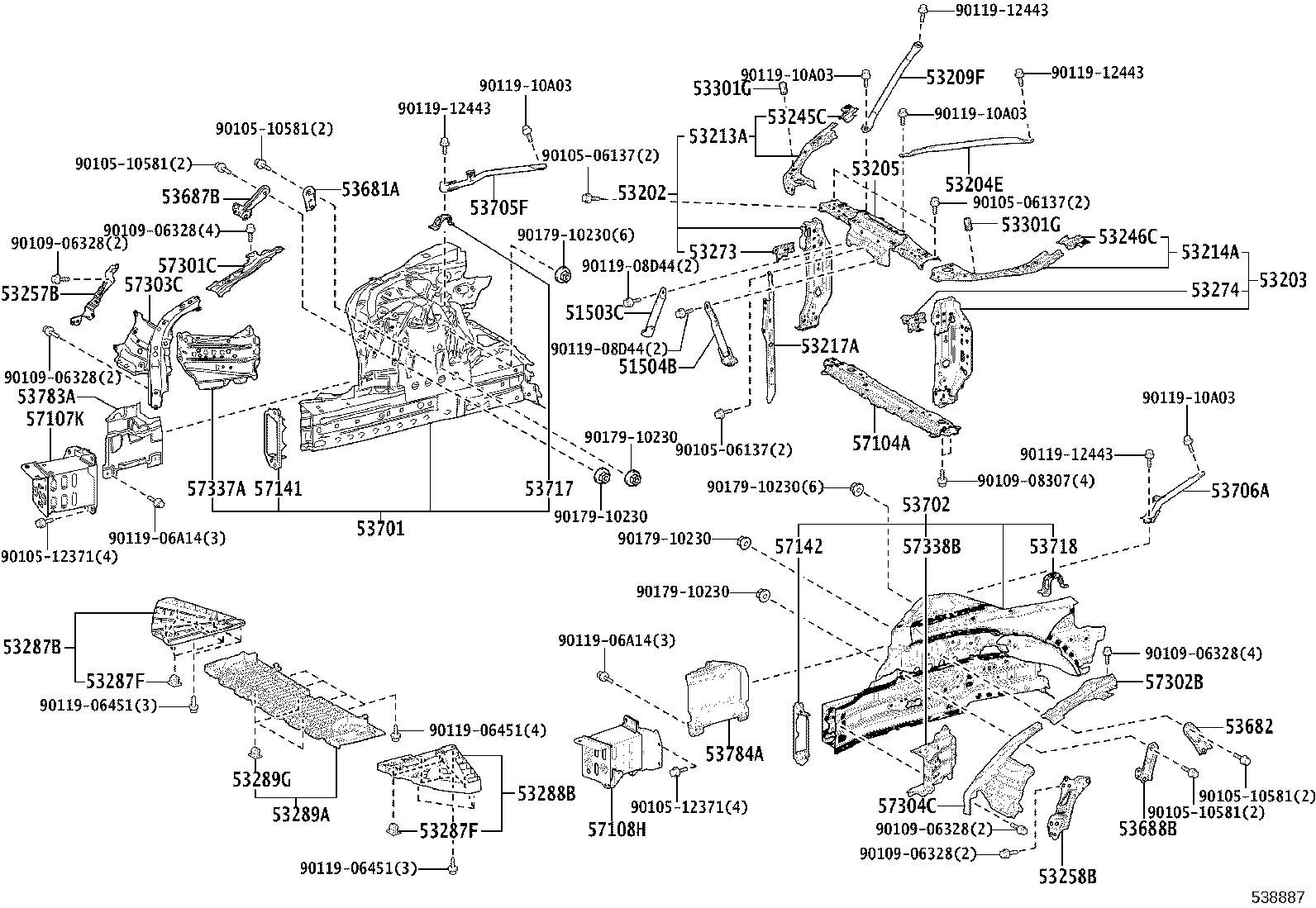

Exploded illustration 538887 53681A — BRACE, FRONT SUSPENSION UPPER TO COWL, RH (2 parts) 57107K — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH (2 parts) 9010512371 — not listed in this catalogue 9010510581 — not listed in this catalogue 9010510581 — not listed in this catalogue 53687B — BRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, RH (2 parts) 53705F — BRACE SUB-ASSY, FENDER APRON, RH (8 parts) 9011912443 — not listed in this catalogue 9011910A03 — not listed in this catalogue 53257B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER (2 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 57303C — OUTRIGGER SUB-ASSY, NO.2 RH (2 parts) 57301C — OUTRIGGER SUB-ASSY, NO.1 RH (2 parts) 53287B — EXTENSION, RADIATOR SUPPORT, RH (2 parts) 53288B — EXTENSION, RADIATOR SUPPORT, LH (2 parts) 53289A — COVER, RADIATOR SUPPORT OPENING (2 parts) 9011906451 — not listed in this catalogue 9011906451 — not listed in this catalogue 9011906451 — not listed in this catalogue 53287F — GROMMET, NO.1 (2 parts) 53289G — GROMMET, NO.2 (2 parts) 9017910230 — not listed in this catalogue 9017910230 — not listed in this catalogue 9017910230 — not listed in this catalogue 53258B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH (2 parts) 53682 — BRACE, FRONT SUSPENSION UPPER TO COWL, LH (2 parts) 53688B — BRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, LH (2 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (2 parts) 53706A — BRACE SUB-ASSY, FENDER APRON, LH (8 parts) 57108H — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH (2 parts) 57142 — SUPPORT, FRONT BUMPER ARM, RH (2 parts) 57338B — GUSSET, OUTRIGGER, NO.1 LH (2 parts) 53718 — PLATE, FENDER APRON, LH (2 parts) 57302B — OUTRIGGER SUB-ASSY, NO.1 LH (2 parts) 57304C — OUTRIGGER SUB-ASSY, NO.2 LH (2 parts) 53783A — INSULATOR, APRON FRONT FENDER, RH (4 parts) 53784A — INSULATOR, APRON FRONT FENDER, LH (2 parts) 9010510581 — not listed in this catalogue 9010510581 — not listed in this catalogue 9010512371 — not listed in this catalogue 9010906328 — not listed in this catalogue 9011906A14 — not listed in this catalogue 9011906A14 — not listed in this catalogue 9011910A03 — not listed in this catalogue 9011912443 — not listed in this catalogue 9017910230 — not listed in this catalogue 9017910230 — not listed in this catalogue 9017910230 — not listed in this catalogue 57141 — SUPPORT, FRONT BUMPER ARM, RH (2 parts) 53717 — PLATE, FENDER APRON, RH (2 parts) 57337A — GUSSET, OUTRIGGER, NO.1 RH (2 parts) 51503C — BRACE SUB-ASSY, LOWER ARM BRACKET, RH (2 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (2 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53209F — BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH (2 parts) 53204E — BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH (2 parts) 53213A — SUPPORT, RADIATOR, UPPER RH (2 parts) 53273 — BRACKET, FRONT BUMPER ARM MOUNTING, RH (2 parts) 53214A — SUPPORT, RADIATOR, UPPER LH (2 parts) 53274 — BRACKET, FRONT BUMPER ARM MOUNTING, LH (2 parts) 53217A — BRACE, HOOD LOCK SUPPORT (2 parts) 53245C — BRACKET, HEADLAMP MOUNTING, UPPER RH (2 parts) 53246C — BRACKET, HEADLAMP MOUNTING, UPPER LH (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 57104A — MEMBER SUB-ASSY, FRONT CROSS (2 parts) 9010506137 — not listed in this catalogue 9010506137 — not listed in this catalogue 9010506137 — not listed in this catalogue 9010908307 — not listed in this catalogue 9011910A03 — not listed in this catalogue 9011910A03 — not listed in this catalogue 9011912443 — not listed in this catalogue 9011912443 — not listed in this catalogue 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (2 parts) 9011908D44 — not listed in this catalogue 9011908D44 — not listed in this catalogue 51504B — BRACE SUB-ASSY, LOWER ARM BRACKET, LH (2 parts) 9010906328 — not listed in this catalogue 9010906328 — not listed in this catalogue 9010906328 — not listed in this catalogue 53287F — GROMMET, NO.1 (2 parts) 9010906328 — not listed in this catalogue 9010906328 — not listed in this catalogue
538887 · 47 callouts, 37 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
51503C — Brace Sub-assy, Lower Arm Bracket, RH
51503-11020 Brace Sub-assy, Lower Arm Bracket, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
51503-11020 Brace Sub-assy, Lower Arm Bracket, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
51504B — Brace Sub-assy, Lower Arm Bracket, LH
51504-11010 Brace Sub-assy, Lower Arm Bracket, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
51504-11010 Brace Sub-assy, Lower Arm Bracket, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53202 — Support Sub-assy, Radiator, RH
53202-11900 Support Sub-assy, Radiator, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53202-11900 Support Sub-assy, Radiator, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53203 — Support Sub-assy, Radiator, LH
53203-11900 Support Sub-assy, Radiator, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53203-11900 Support Sub-assy, Radiator, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53204E — Brace Sub-assy, Radiator Support TO Crossmember, LH
53204-11020 Brace Sub-assy, Radiator Support TO Crossmember, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53204-11020 Brace Sub-assy, Radiator Support TO Crossmember, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53205 — Support Sub-assy, Radiator, Upper
53205-11903 Support Sub-assy, Radiator, Upper
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53205-11903 Support Sub-assy, Radiator, Upper
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53209F — Brace Sub-assy, Radiator Support TO Crossmember, RH
53209-11020 Brace Sub-assy, Radiator Support TO Crossmember, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53209-11020 Brace Sub-assy, Radiator Support TO Crossmember, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53213A — Support, Radiator, Upper RH
53213-11900 Support, Radiator, Upper RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53213-11900 Support, Radiator, Upper RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53214A — Support, Radiator, Upper LH
53214-11900 Support, Radiator, Upper LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53214-11900 Support, Radiator, Upper LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53217A — Brace, Hood Lock Support
53217-11011 Brace, Hood Lock Support
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53217-11011 Brace, Hood Lock Support
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53245C — Bracket, Headlamp Mounting, Upper RH
53245-11010 Bracket, Headlamp Mounting, Upper RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53245-11010 Bracket, Headlamp Mounting, Upper RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53246C — Bracket, Headlamp Mounting, Upper LH
53246-11010 Bracket, Headlamp Mounting, Upper LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53246-11010 Bracket, Headlamp Mounting, Upper LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53257B — Bracket, Radiator Support TO Front Fender
53257-11010 Bracket, Radiator Support TO Front Fender
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53257-11010 Bracket, Radiator Support TO Front Fender
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53258B — Bracket, Radiator Support TO Front Fender, LH
53258-11010 Bracket, Radiator Support TO Front Fender, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53258-11010 Bracket, Radiator Support TO Front Fender, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53273 — Bracket, Front Bumper Arm Mounting, RH
53273-11010 Bracket, Front Bumper Arm Mounting, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53273-11010 Bracket, Front Bumper Arm Mounting, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53274 — Bracket, Front Bumper Arm Mounting, LH
53274-11010 Bracket, Front Bumper Arm Mounting, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53274-11010 Bracket, Front Bumper Arm Mounting, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53287B — Extension, Radiator Support, RH
53287-11010 Extension, Radiator Support, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53287-11010 Extension, Radiator Support, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53287F — Grommet, NO.1
90189-06237 Grommet, NO.1
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
90189-06237 Grommet, NO.1
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53288B — Extension, Radiator Support, LH
53288-11010 Extension, Radiator Support, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53288-11010 Extension, Radiator Support, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53289A — Cover, Radiator Support Opening
53289-11010 Cover, Radiator Support Opening
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53289-11010 Cover, Radiator Support Opening
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53289G — Grommet, NO.2
90189-06237 Grommet, NO.2
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
90189-06237 Grommet, NO.2
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53301G — Cushion, Hood Bumper
90541-15034 Cushion, Hood Bumper
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
90541-15034 Cushion, Hood Bumper
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53681A — Brace, Front Suspension Upper TO Cowl, RH
53681-11010 Brace, Front Suspension Upper TO Cowl, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53681-11010 Brace, Front Suspension Upper TO Cowl, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53682 — Brace, Front Suspension Upper TO Cowl, LH
53682-11010 Brace, Front Suspension Upper TO Cowl, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53682-11010 Brace, Front Suspension Upper TO Cowl, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53687B — Brace, Front Suspension Lower TO Crossmember, RH
53687-11010 Brace, Front Suspension Lower TO Crossmember, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53687-11010 Brace, Front Suspension Lower TO Crossmember, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53688B — Brace, Front Suspension Lower TO Crossmember, LH
53688-11010 Brace, Front Suspension Lower TO Crossmember, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53688-11010 Brace, Front Suspension Lower TO Crossmember, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53701 — Apron Sub-assy, Front Fender, RH
53701-11010 Apron Sub-assy, Front Fender, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53701-11010 Apron Sub-assy, Front Fender, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53702 — Apron Sub-assy, Front Fender, LH
53702-11010 Apron Sub-assy, Front Fender, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53702-11010 Apron Sub-assy, Front Fender, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53705F — Brace Sub-assy, Fender Apron, RH
53705-11020 Brace Sub-assy, Fender Apron, RH
2023-05 → 2024-03 ended
GWZ100 LHD EUR —
53705-11020 Brace Sub-assy, Fender Apron, RH
2023-05 → —
GWZ100 CHI,GCC,GEN —
53705-11030 Brace Sub-assy, Fender Apron, RH
2023-05 → 2024-03 ended
GWZ100 RHD EUR —
53705-11030 Brace Sub-assy, Fender Apron, RH
2023-05 → —
GWZ100 ARL —
53705-11040 Brace Sub-assy, Fender Apron, RH
2023-05 → 2024-03 ended
URZ100 LHD EUR —
53705-11040 Brace Sub-assy, Fender Apron, RH
2023-05 → —
URZ100 GCC,GEN —
53706-11060 Brace Sub-assy, Fender Apron, RH
2023-05 → 2024-03 ended
URZ100 RHD EUR —
53706-11060 Brace Sub-assy, Fender Apron, RH
2023-05 → —
URZ100 ARL —
53706A — Brace Sub-assy, Fender Apron, LH
53705-11050 Brace Sub-assy, Fender Apron, LH
2023-05 → 2024-03 ended
URZ100 RHD EUR —
53705-11050 Brace Sub-assy, Fender Apron, LH
2023-05 → —
URZ100 ARL —
53706-11020 Brace Sub-assy, Fender Apron, LH
2023-05 → 2024-03 ended
GWZ100 LHD EUR —
53706-11020 Brace Sub-assy, Fender Apron, LH
2023-05 → —
GWZ100 CHI,GCC,GEN —
53706-11030 Brace Sub-assy, Fender Apron, LH
2023-05 → 2024-03 ended
GWZ100 RHD EUR —
53706-11030 Brace Sub-assy, Fender Apron, LH
2023-05 → —
GWZ100 ARL —
53706-11050 Brace Sub-assy, Fender Apron, LH
2023-05 → 2024-03 ended
URZ100 LHD EUR —
53706-11050 Brace Sub-assy, Fender Apron, LH
2023-05 → —
URZ100 GCC,GEN —
53717 — Plate, Fender Apron, RH
53717-11010 Plate, Fender Apron, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53717-11010 Plate, Fender Apron, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53718 — Plate, Fender Apron, LH
53718-11010 Plate, Fender Apron, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
53718-11010 Plate, Fender Apron, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
53783A — Insulator, Apron Front Fender, RH
53783-11020 Insulator, Apron Front Fender, RH
2023-05 → —
GWZ100 CHI,GCC,GEN —
53783-11020 Insulator, Apron Front Fender, RH
2023-05 → 2024-03 ended
GWZ100 LHD EUR —
53783-11030 Insulator, Apron Front Fender, RH
2023-05 → —
GWZ100 ARL —
53783-11030 Insulator, Apron Front Fender, RH
2023-05 → 2024-03 ended
GWZ100 RHD EUR —
53784A — Insulator, Apron Front Fender, LH
53784-11020 Insulator, Apron Front Fender, LH
2023-05 → 2024-03 ended
GWZ100 EUR —
53784-11020 Insulator, Apron Front Fender, LH
2023-05 → —
GWZ100 ARL,CHI,GCC,GEN —
57104A — Member Sub-assy, Front Cross
57104-11010 Member Sub-assy, Front Cross
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57104-11010 Member Sub-assy, Front Cross
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57107K — Reinforce Sub-assy, Front Bumper Mounting, RH
57107-11010 Reinforce Sub-assy, Front Bumper Mounting, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57107-11010 Reinforce Sub-assy, Front Bumper Mounting, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57108H — Reinforce Sub-assy, Front Bumper Mounting, LH
57108-11011 Reinforce Sub-assy, Front Bumper Mounting, LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57108-11011 Reinforce Sub-assy, Front Bumper Mounting, LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57141 — Support, Front Bumper Arm, RH
57141-11010 Support, Front Bumper Arm, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57141-11010 Support, Front Bumper Arm, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57142 — Support, Front Bumper Arm, RH
57142-11010 Support, Front Bumper Arm, RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57142-11010 Support, Front Bumper Arm, RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57301C — Outrigger Sub-assy, NO.1 RH
57301-11010 Outrigger Sub-assy, NO.1 RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57301-11010 Outrigger Sub-assy, NO.1 RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57302B — Outrigger Sub-assy, NO.1 LH
57302-11010 Outrigger Sub-assy, NO.1 LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57302-11010 Outrigger Sub-assy, NO.1 LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57303C — Outrigger Sub-assy, NO.2 RH
57303-11010 Outrigger Sub-assy, NO.2 RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57303-11010 Outrigger Sub-assy, NO.2 RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57304C — Outrigger Sub-assy, NO.2 LH
57304-11010 Outrigger Sub-assy, NO.2 LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57304-11010 Outrigger Sub-assy, NO.2 LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57337A — Gusset, Outrigger, NO.1 RH
57337-11010 Gusset, Outrigger, NO.1 RH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57337-11010 Gusset, Outrigger, NO.1 RH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
57338B — Gusset, Outrigger, NO.1 LH
57338-11010 Gusset, Outrigger, NO.1 LH
2023-05 → 2024-03 ended
GWZ100,URZ100 EUR —
57338-11010 Gusset, Outrigger, NO.1 LH
2023-05 → —
GWZ100,URZ100 ARL,CHI,GCC,GEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
