Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

87 part groups · 8 illustrations

Illustrations

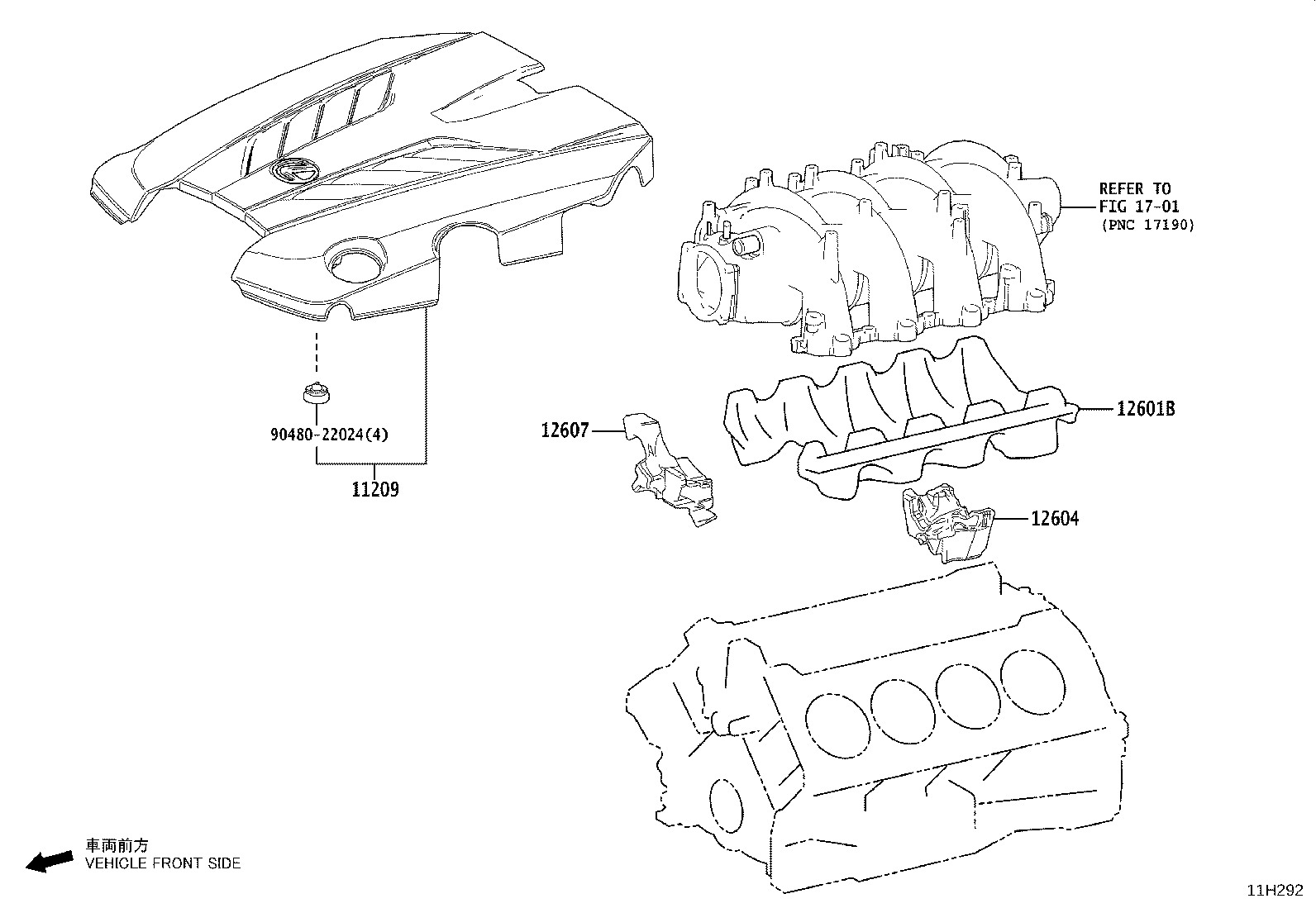

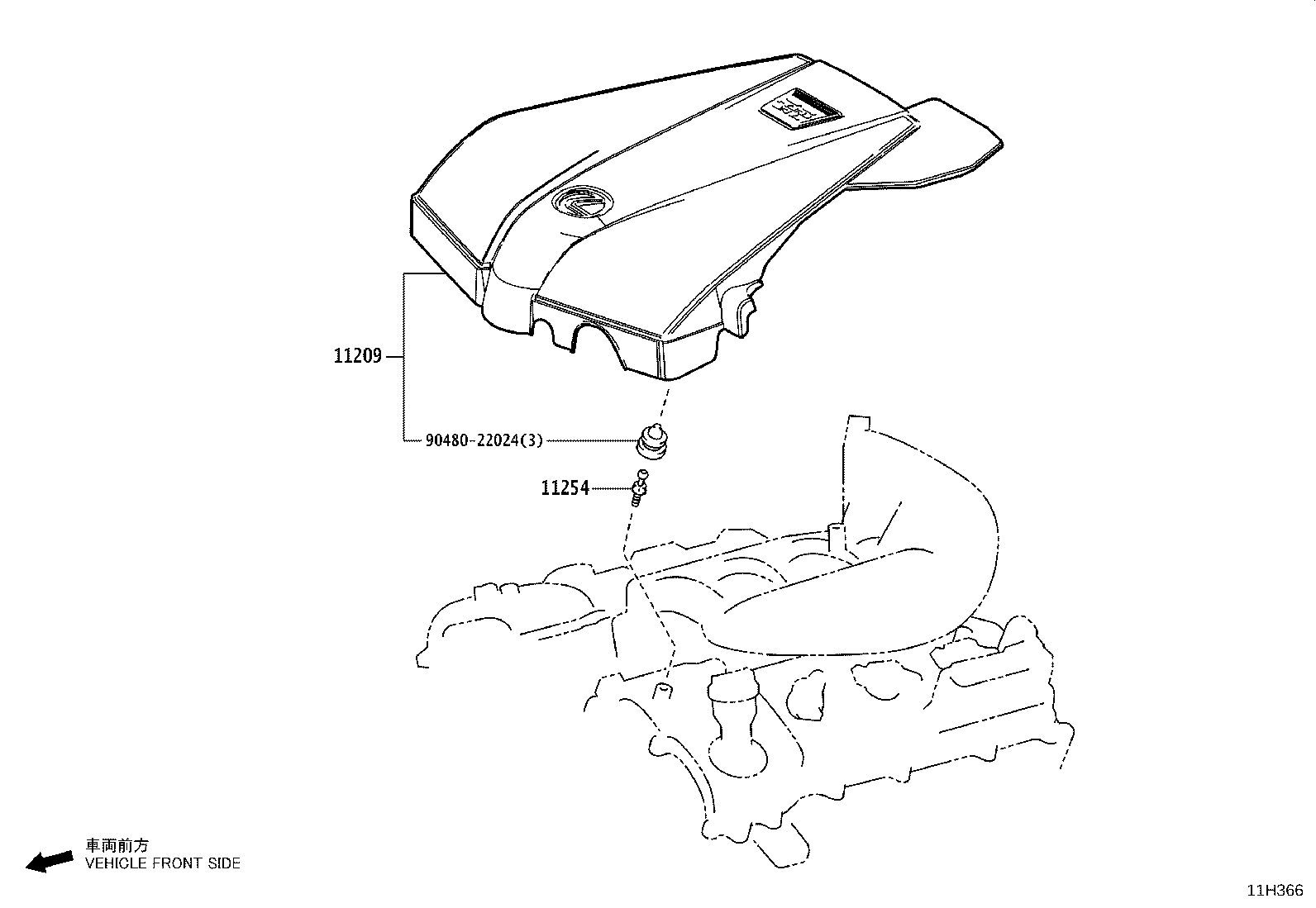

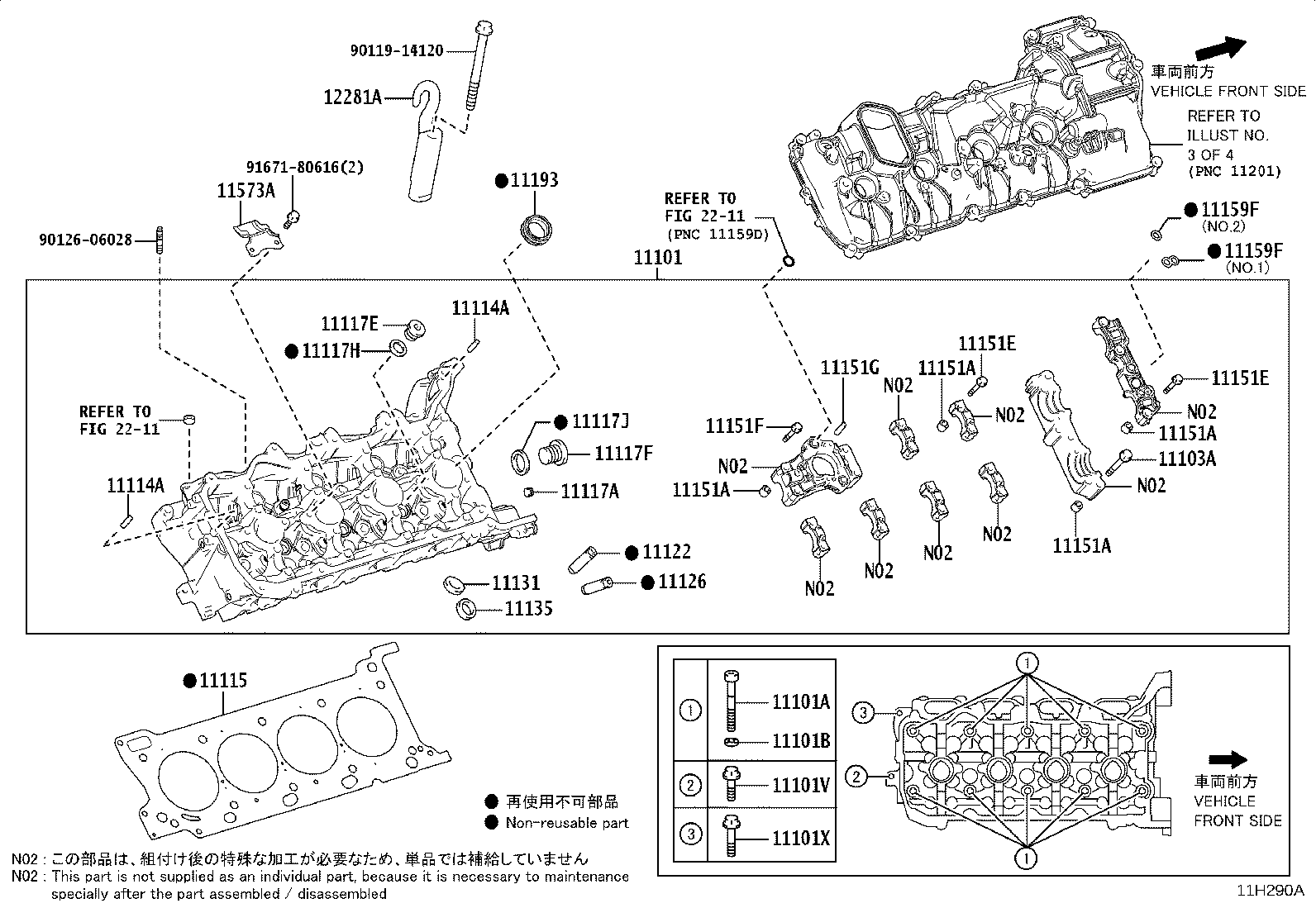

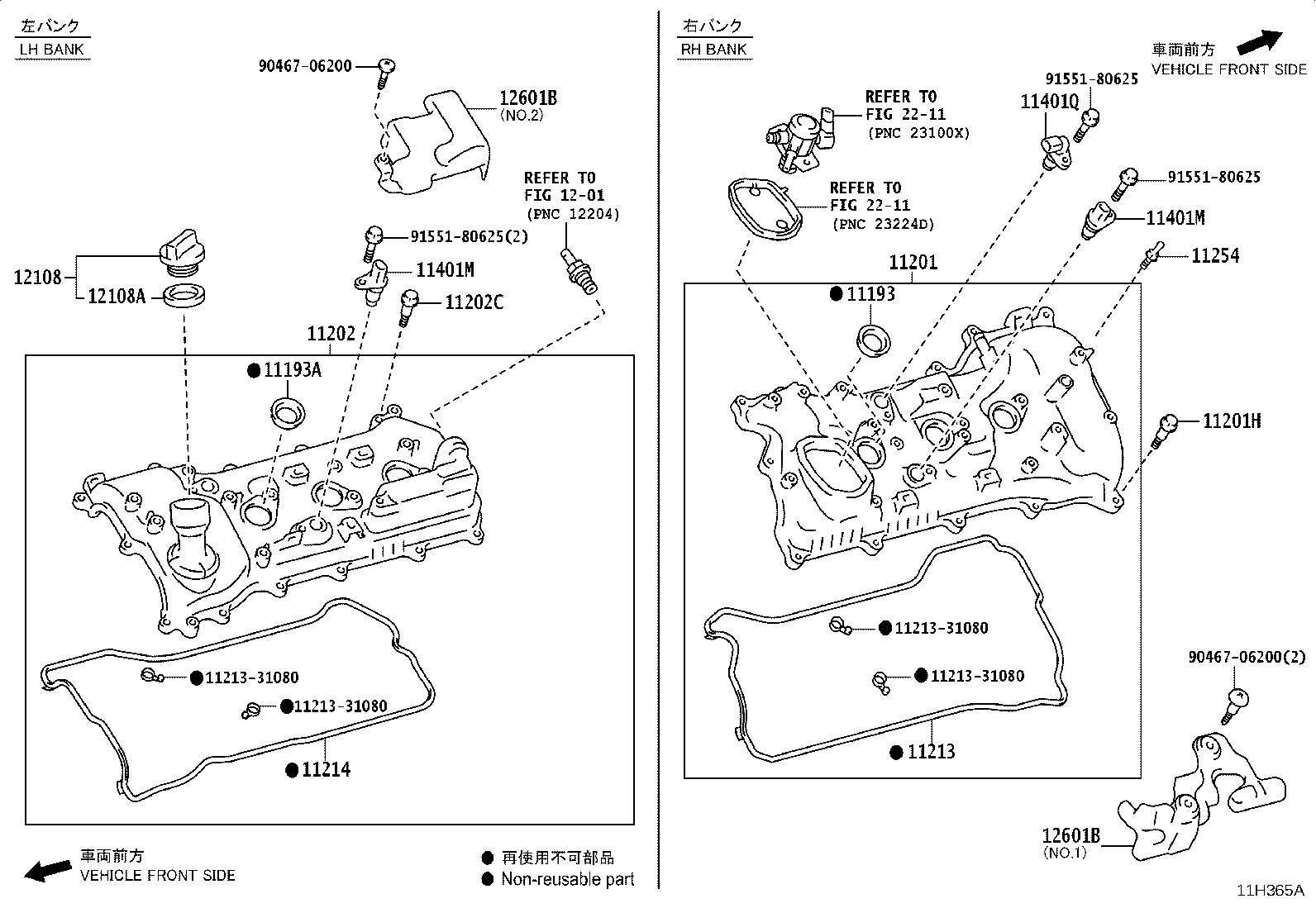

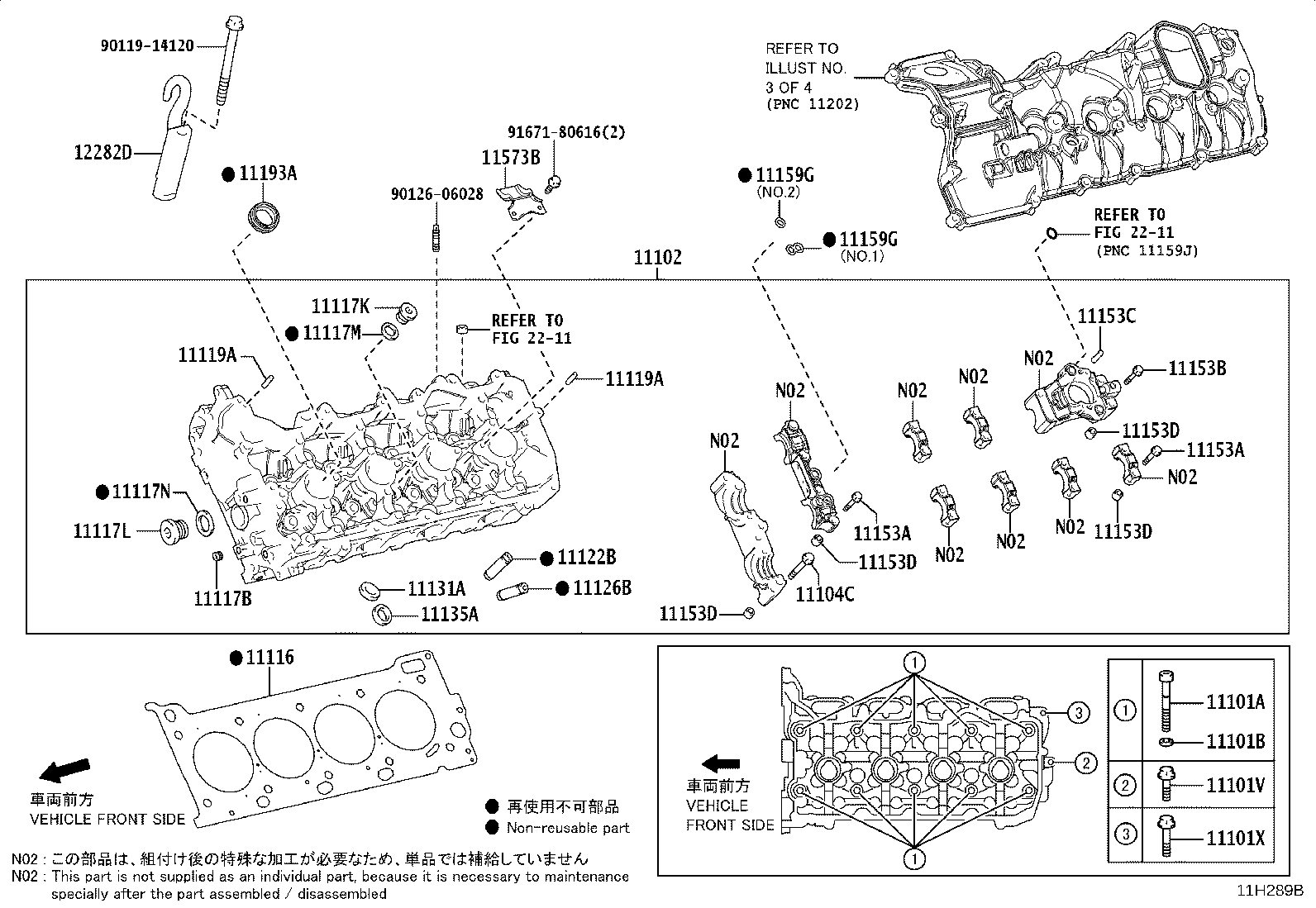

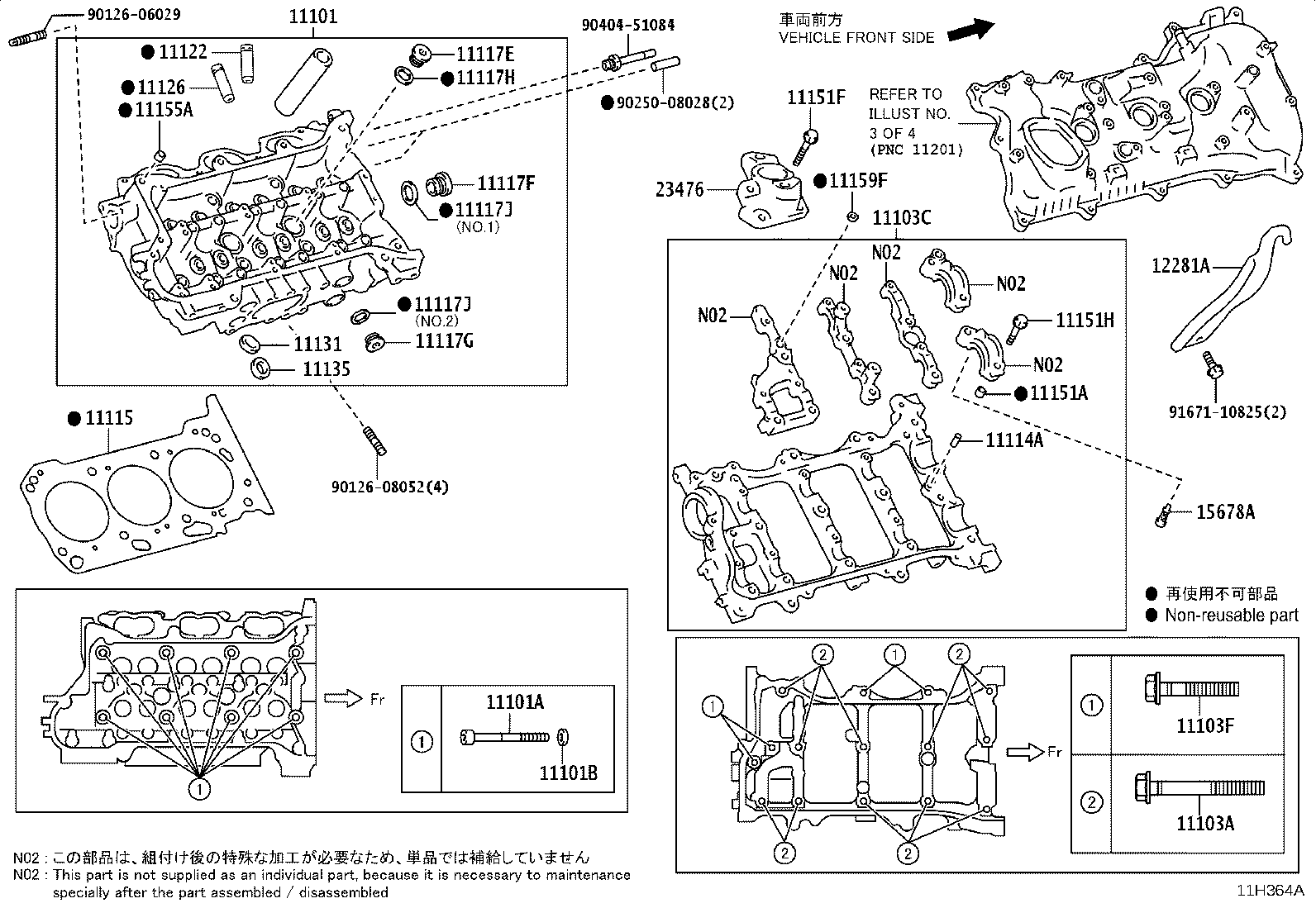

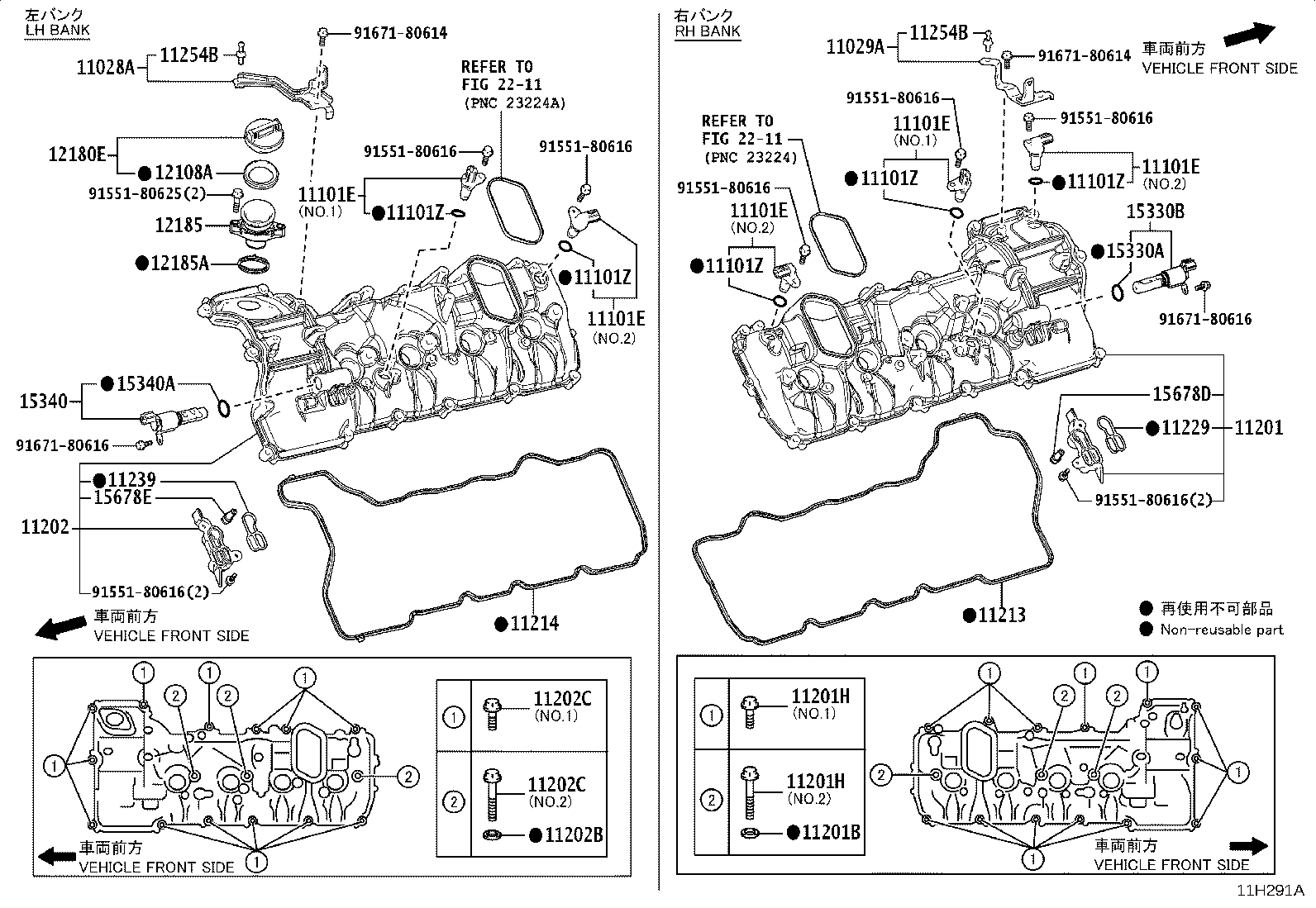

Figure 11H363A 11H363A 2023-05 → — Figure 11H364A 11H364A 2023-05 → — Figure 11H365A 11H365A 2023-05 → — Figure 11H366 11H366 2023-05 → — Figure 11H289B 11H289B 2023-05 → — Figure 11H290A 11H290A 2023-05 → — Figure 11H291A 11H291A 2023-05 → — Figure 11H292 11H292 2023-05 → —

Part groups

PNCDescription
11028A Bracket Sub-assy, V-bank Cover, NO.4
11029A Bracket Sub-assy, V-bank Cover, NO.3
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11101X Bolt(FOR CYLINDER HEAD SET SUB)
11101Z O Ring, Cam Position Sensor
11102 Head, Cylinder, LH
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103C Housing Sub-assy, Camshaft, RH
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11104A Housing Sub-assy, Camshaft, LH
11104C Bolt(FOR CAMSHAFT HOUSING SET LH)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116 Gasket, Cylinder Head, NO.2
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117K Plug, W/Head Straight Screw, LH NO.1
11117L Plug, W/Head Straight Screw, LH NO.2
11117M Gasket(FOR WATER HOLE NO.2)
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11122B Bush, Intake Valve Guide, NO.2
11126 Bush, Exhaust Valve Guide
11126B Bush, Exhaust Valve Guide, NO.2
11131 Seat, Intake Valve
11131A Seat, Intake Valve, NO.2
11135 Seat, Exhaust Valve
11135A Seat, Exhaust Valve, NO.2
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151E Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11151F Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11151G Pin, Straight(FOR CAMSHAFT HOUSING RH)
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11153A Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153B Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11153C Pin, Straight(FOR CAMSHAFT HOUSING LH)
11153D Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH)
11155A Pin, Ring W/Head
11159F Gasket, Camshaft Bearing Cap Oil Hole, RH
11159G Gasket, Camshaft Bearing Cap Oil Hole, LH
11193 Gasket, Spark Plug Tube
11193A Gasket, Spark Plug Tube, LH
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11202 Cover Sub-assy, Cylinder Head, LH
11202B Washer, Seal(FOR CYLINDER HEAD COVER, LH)
11202C Bolt(FOR CYLINDER HEAD COVER LH)
11209 Cover Sub-assy, V-bank
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11229 Gasket, Cylinder Head Cover, NO.3
11239 Gasket, Clinder Head Coner, NO.4
11254 Bracket, V-bank Cover, NO.1
11254B Bolt, V-bank Cover
11401M Sensor, Crank Position, NO.2
11401Q Sensor, Crank Position
11573A Plate, Oil Reflector, RH
11573B Plate, Oil Reflector, LH
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12185 Housing, Oil Filler Cap
12185A Gasket, Oil Filler Cap Housing
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12604 Cover Sub-assy, Engine, NO.4
12607 Cover Sub-assy, Engine, LH NO.2
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15330B Valve Assy, Cam Timing Oil Control, RH
15340 Valve Assy, Cam Timing Oil Control, LH
15340A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
15678D Filter, Oil Control Valve, RH
15678E Filter, Oil Control Valve, LH
23476 Housing, Fuel Pump Lifter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
