Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

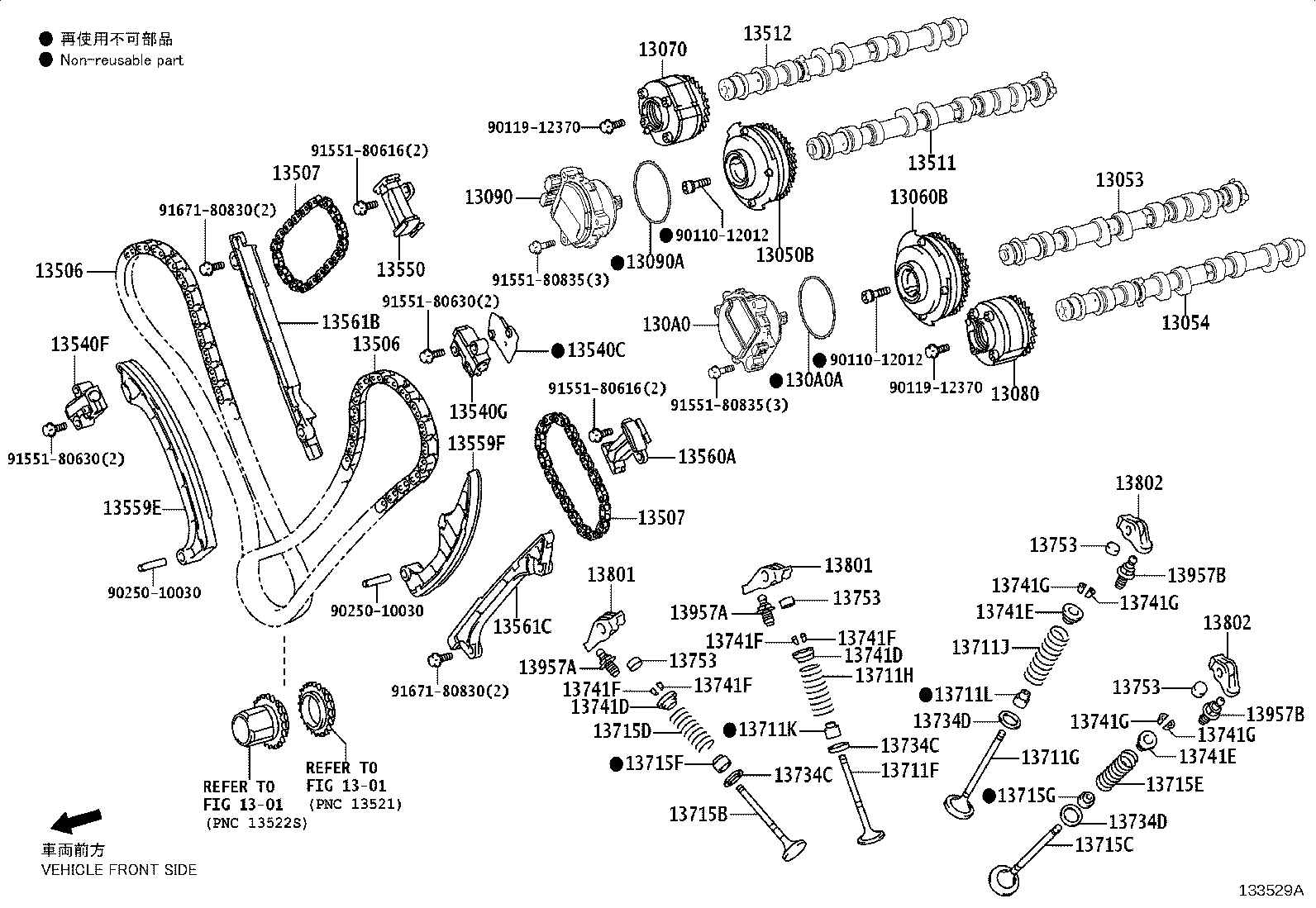

Camshaft & Valve
64 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13050B | Gear Assy, Camshaft Timing Intake, RH |
| 13053 | Camshaft Sub-assy, NO.3 |
| 13054 | Camshaft Sub-assy, NO.4 |
| 13060B | Gear Assy, Camshaft Timing Intake, LH |
| 13070 | Gear Assy, Camshaft Timing Exhaust, RH |
| 13080 | Gear Assy, Camshaft Timing Exhaust, LH |
| 13090 | Motor Assy, Cam Timing Control W/Edu, RH |
| 13090A | Ring, O(FOR CAM TIMING CONTROL MOTOR RH) |
| 130A0 | Motor Assy, Cam Timing Control W/Edu, LH |
| 130A0A | Ring, O(FOR CAM TIMING CONTROL MOTOR LH) |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13530 | Sprocket Assy, Idle |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13540F | Tensioner Assy, Chain, NO.1 RH |
| 13540G | Tensioner Assy, Chain, NO.1 LH |
| 13550 | Tensioner Assy, Chain, NO.2 |
| 13559 | Slipper, Chain Tensioner |
| 13559E | Slipper, Chain Tensioner, RH |
| 13559F | Slipper, Chain Tensioner, LH |
| 13560A | Tensioner Assy, Chain, NO.3 |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13561B | Damper, Chain Vibration, RH |
| 13561C | Damper, Chain Vibration, LH |
| 13562 | Damper, Chain Vibration, NO.2 |
| 135A0 | Bolt Assy, Camshaft Timing Gear, Center(FOR INTAKE) |
| 135A0A | Bolt Assy, Camshaft Timing Gear, Center(FOR EXHAUST) |
| 13711 | Valve, Intake |
| 13711B | Spring, Compression(FOR INNER) |
| 13711E | Seal, Intake Valve Stem Oil |
| 13711F | Valve, Intake(FOR RH CYLINDER HEAD) |
| 13711G | Valve, Intake(FOR LH CYLINDER HEAD) |
| 13711H | Spring, Intake Valve Compression(FOR RH CYLINDER HEAD) |
| 13711J | Spring, Intake Valve Compression(FOR LH CYLINDER HEAD) |
| 13711K | Seal, Intake Valve Stem Oil(FOR RH CYLINDER HEAD) |
| 13711L | Seal, Intake Valve Stem Oil(FOR LH CYLINDER HEAD) |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13715B | Valve, Exhaust(FOR RH CYLINDER HEAD) |
| 13715C | Valve, Exhaust(FOR LH CYLINDER HEAD) |
| 13715D | Spring, Compression(FOR RH EXHAUST VALVE) |
| 13715E | Spring, Compression(FOR LH EXHAUST VALVE) |
| 13715F | Seal, Exhaust Valve Stem Oil(FOR RH CYLINDER HEAD) |
| 13715G | Seal, Exhaust Valve Stem Oil(FOR LH CYLINDER HEAD) |
| 13716 | Cap, Valve Stem |
| 13734 | Seat, Valve Spring |
| 13734C | Seat, Valve Spring(FOR RH CYLINDER HEAD) |
| 13734D | Seat, Valve Spring(FOR LH CYLINDER HEAD) |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13741D | Retainer, Valve Spring(FOR RH CYLINDER HEAD) |
| 13741E | Retainer, Valve Spring(FOR LH CYLINDER HEAD) |
| 13741F | Lock, Valve Spring Retainer(FOR RH CYLINDER HEAD) |
| 13741G | Lock, Valve Spring Retainer(FOR LH CYLINDER HEAD) |
| 13750 | Adjuster Assy, Valve Lash |
| 13753 | Shim, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13802 | Arm Sub-assy, Valve Rocker, NO.2 |
| 13957A | Pivot, Valve Rocker Arm(FOR RH CYLINDER HEAD) |
| 13957B | Pivot, Valve Rocker Arm(FOR LH CYLINDER HEAD) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
