Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

20 part groups · 2 illustrations

Illustrations

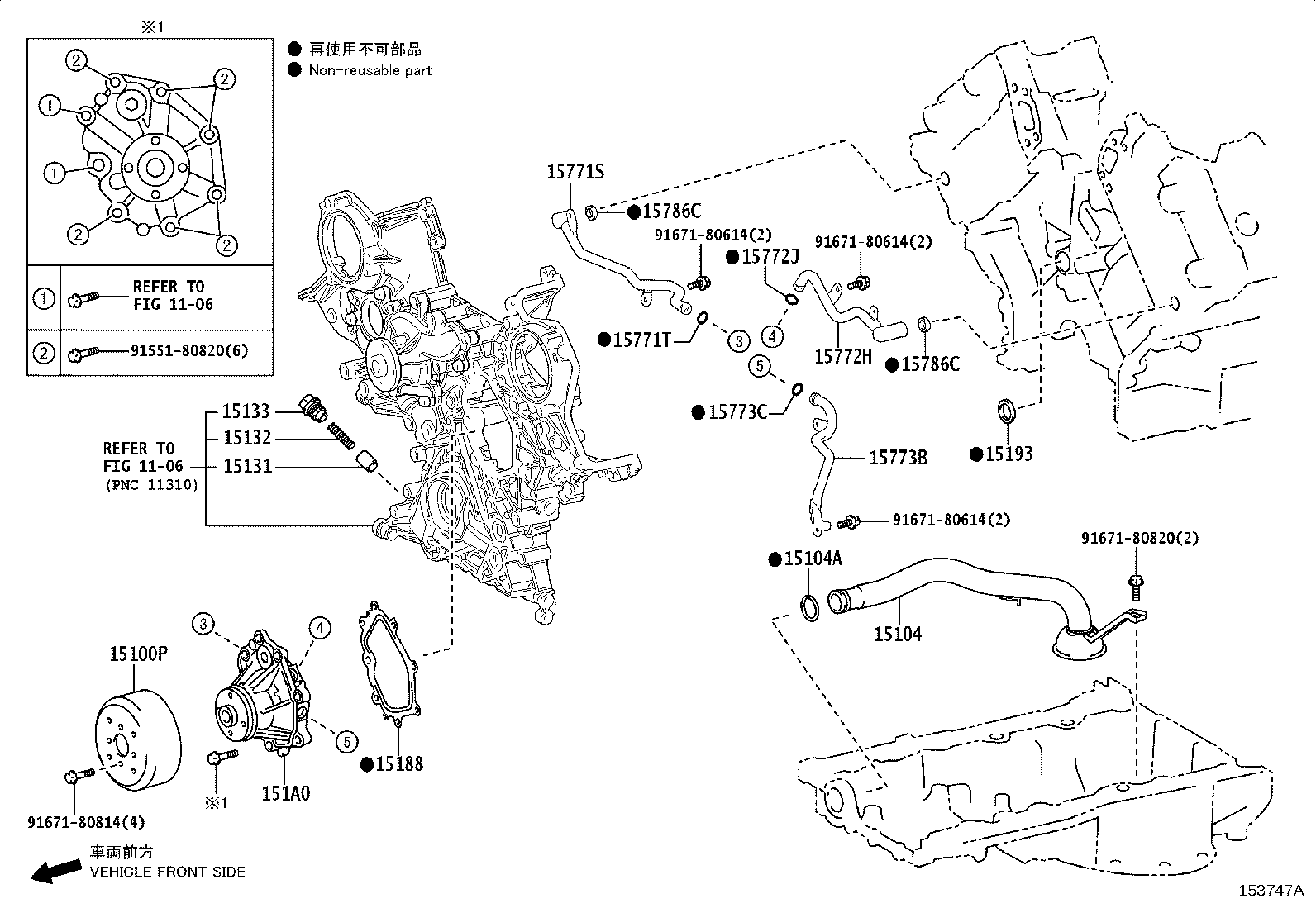

Figure 153776A 153776A 2023-05 → — Figure 153747A 153747A 2023-05 → —

Part groups

PNCDescription
15100P Pulley, Oil Pump Drive Shaft
15103A Rotor Sub-assy, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15183B Bolt, Oil Pump Cover
15188 Gasket, Oil Pump
15193 Gasket, Oil Pump
151A0 Pump Assy, Scavenging
15771S Pipe, Oil, NO.1
15771T Ring, O(FOR OIL PIPE NO.1)
15772H Pipe, Oil, NO.2
15772J Ring, O(FOR OIL PIPE NO.2)
15773B Pipe, Oil, NO.3
15773C Ring, O(FOR OIL PIPE NO.3)
15786C Seal, Oil Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
