Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 4 illustrations

Illustrations

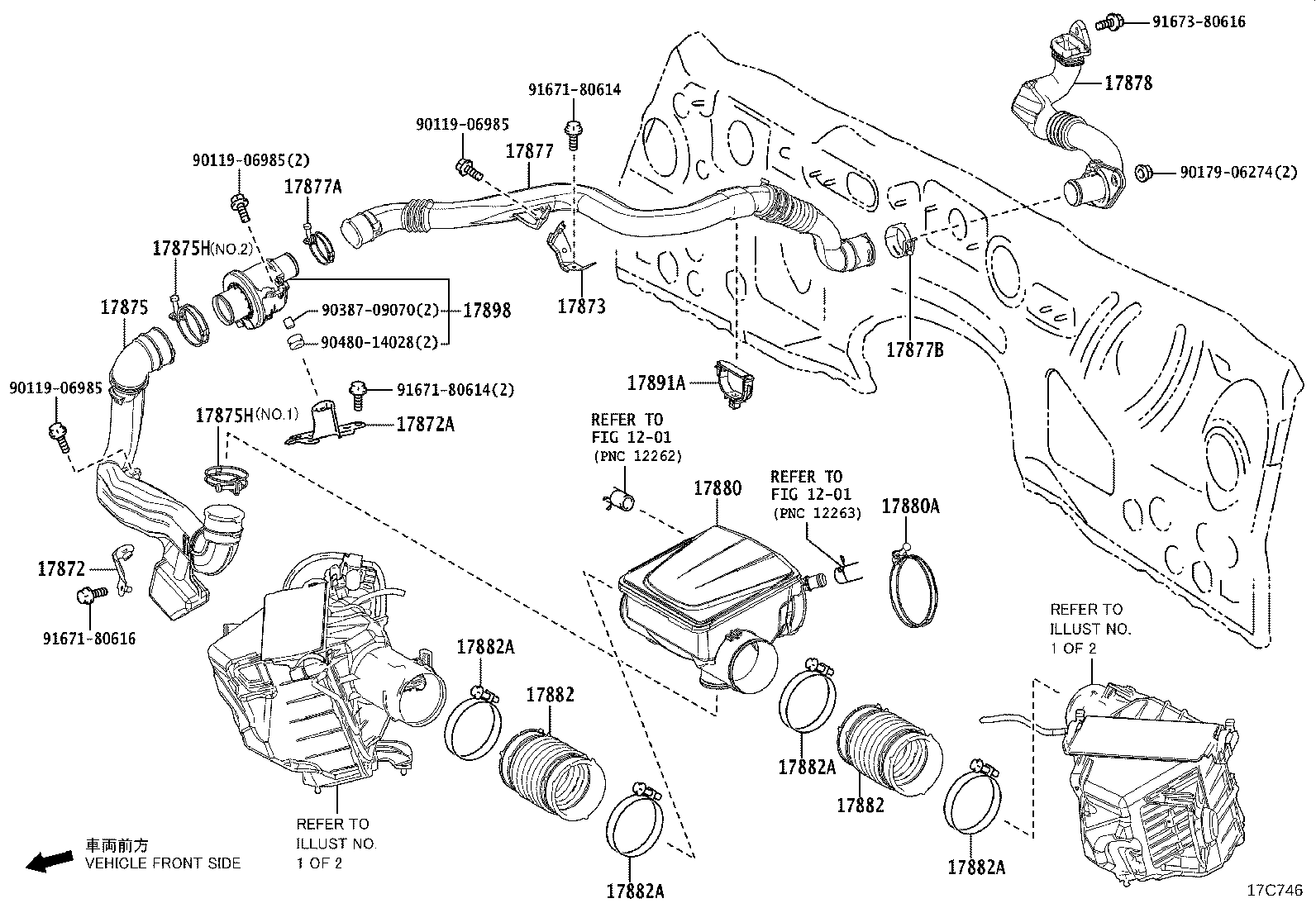

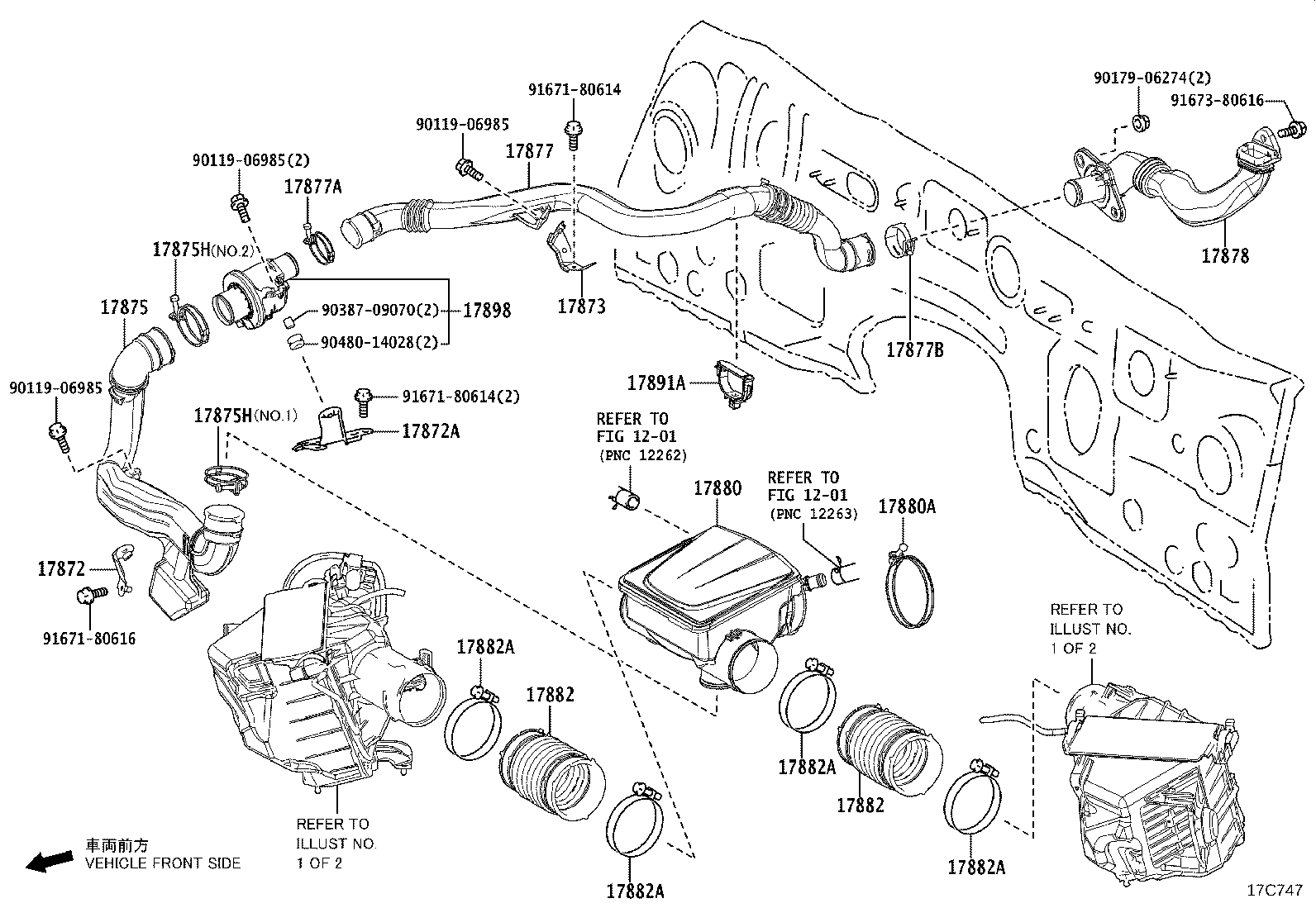

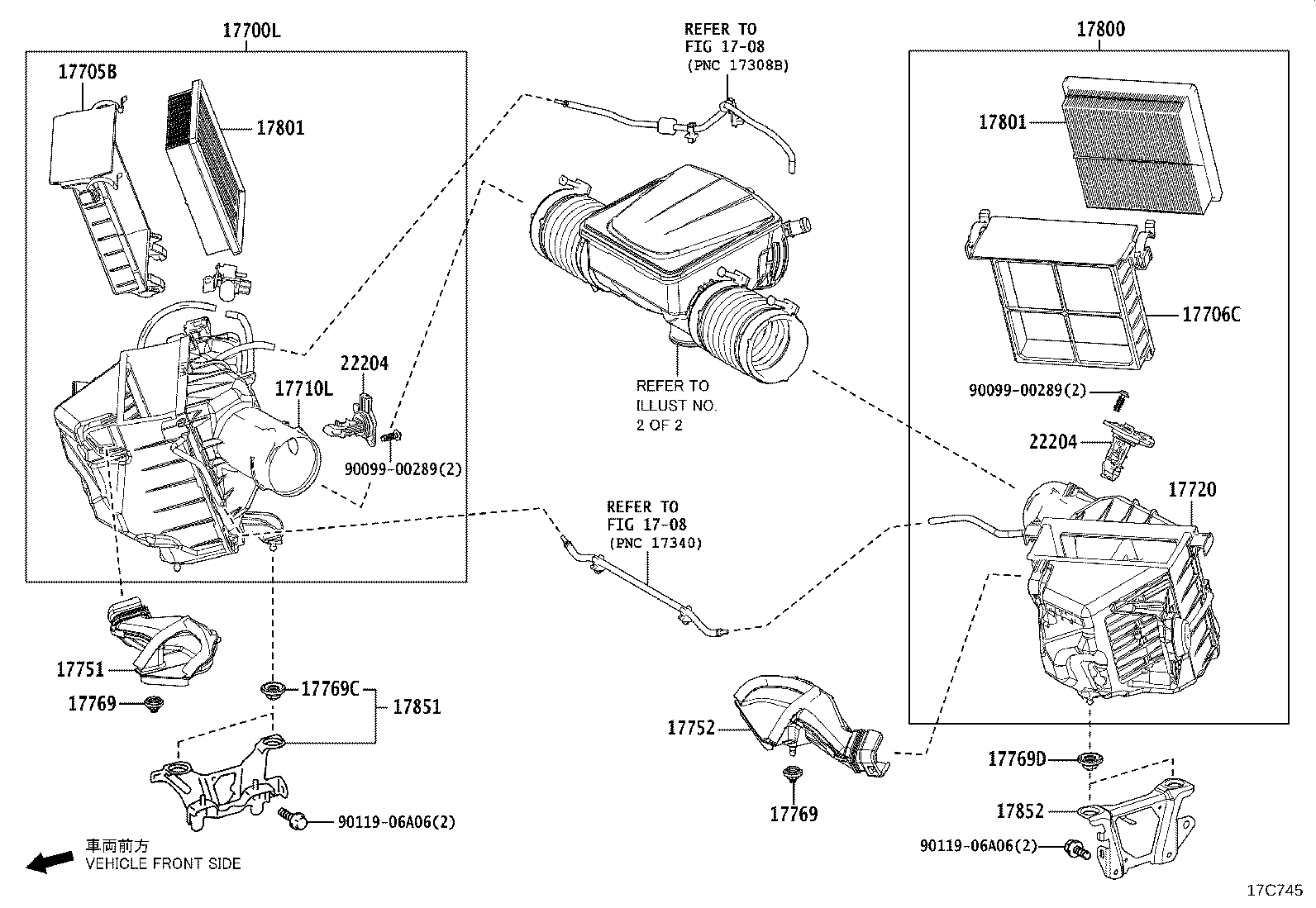

Figure 17C801 17C801 2023-05 → — Figure 17C745 17C745 2023-05 → — Figure 17C747 17C747 2023-05 → — Figure 17C746 17C746 2023-05 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700L Cleaner Assy, Air W/Element, RH
17705 Cap Sub-assy, Air Cleaner
17705B Cap Sub-assy, Air Cleaner RH
17706C Cap Sub-assy, Air Cleaner, LH
17710L Cleaner Assy, Air W/O Element, RH
17710M Cleaner Assy, Air (WITHOUT ELEMENT)
17720 Cleaner Assy, Air W/O Element, LH
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17769D Support, Air Cleaner, NO.2
17800 Cleaner Assy, Air W/Element, LH
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17872 Bracket, Intake Air Connector
17872A Bracket, Intake Air Connector, NO.1
17873 Bracket, Intake Air Connector, NO.2
17875 Pipe, Intake Air Connector
17875H Clamp, Hose(FOR INTAKE AIR CONNECTOR PIPE)
17877 Pipe, Intake Air Connector, NO.2
17877A Clamp, Hose(FOR INTAKE AIR CONNECTOR PIPE, NO.2)
17877B Clip, Hose(FOR INTAKE AIR CONNECTOR PIPE, NO.2)
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17891A Clamp, Air Cleaner Hose
17893A Clamp, Hose
17898 Creator, Intake Air Sound
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
