Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05
Torque Converter, Front Oil Pump & Chain (ATM)

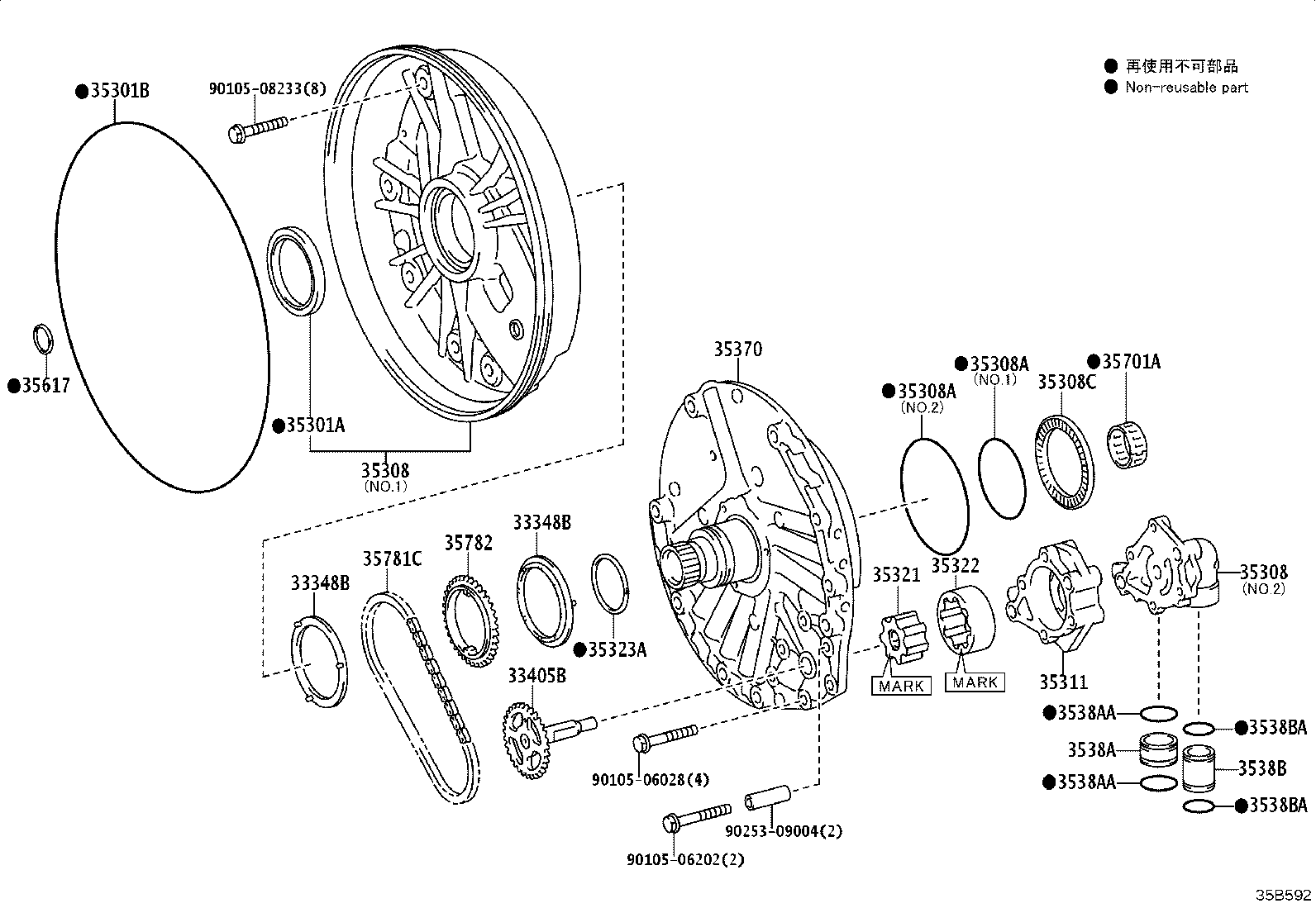

26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000 | Converter Assy, Torque |
| 32101 | Gear Sub-assy, Drive Plate & Ring |
| 32101A | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101C | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32117 | Spacer, Drive Plate, Rear |
| 32118 | Rotor, Crankshaft Angle Sensor |
| 33348B | Washer, Gear Thrust |
| 33405B | Shaft Sub-assy, Oil Pump Drive |
| 35301A | Seal, Oil (FOR FRONT OIL PUMP) |
| 35301B | Ring, O (FOR FRONT OIL PUMP BODY) |
| 35308 | Cover Sub-assy, Front Oil Pump |
| 35308A | Seal, Oil (FOR FRONT OIL PUMP COVER) |
| 35308C | Race, Thrust Bearing (FOR FRONT OIL PUMP COVER) |
| 35311 | Body, Front Oil Pump |
| 35321 | Gear, Front Oil Pump Drive |
| 35322 | Gear, Front Oil Pump Driven |
| 35323A | Ring(FOR OIL SEAL) |
| 35370 | Shaft Assy, Stator |
| 3538A | Pipe, Oil Pump Suction |
| 3538AA | Ring, O(FOR OIL PUMP SUCTION PIPE) |
| 3538B | Pipe, Oil Pump Delivery |
| 3538BA | Ring, O(FOR OIL PUMP DELIVERY PIPE) |
| 35617 | Ring, Clutch Drum Oil Seal |
| 35701A | Bearing, Thrust (FOR INPUT SHAFT FRONT) |
| 35781C | Chain, Transmission Drive |
| 35782 | Sprocket, Drive |
