Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05
Valve Body & Oil Strainer (ATM)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35210A | Valve, Solenoid(SL1) |
| 35210B | Valve, Solenoid(SL3) |
| 35210C | Valve, Solenoid(SL2) |
| 35210D | Valve, Solenoid(SL4) |
| 35210E | Valve, Solenoid(SL5) |
| 35210F | Valve, Solenoid(SL6) |
| 35240D | Valve, Solenoid(SL) |
| 35240J | Valve, Solenoid(SR) |
| 35240K | Solenoid Assy, Transmission 3Way(SC1) |
| 35240L | Solenoid Assy, Transmission 3Way(SC2) |
| 35240Q | Solenoid Assy, Transmission 3Way(SC3) |
| 35280A | Valve, Solenoid(SLU) |
| 35280B | Valve, Solenoid(SLT) |
| 35285 | Plate, Solenoid Lock |
| 35400A | Body Assy, Transmission Valve W/Solenoid |
| 35481B | Clamp, Valve Body Wire Harness |
| 35482B | Clamp, Temperature Sensor |

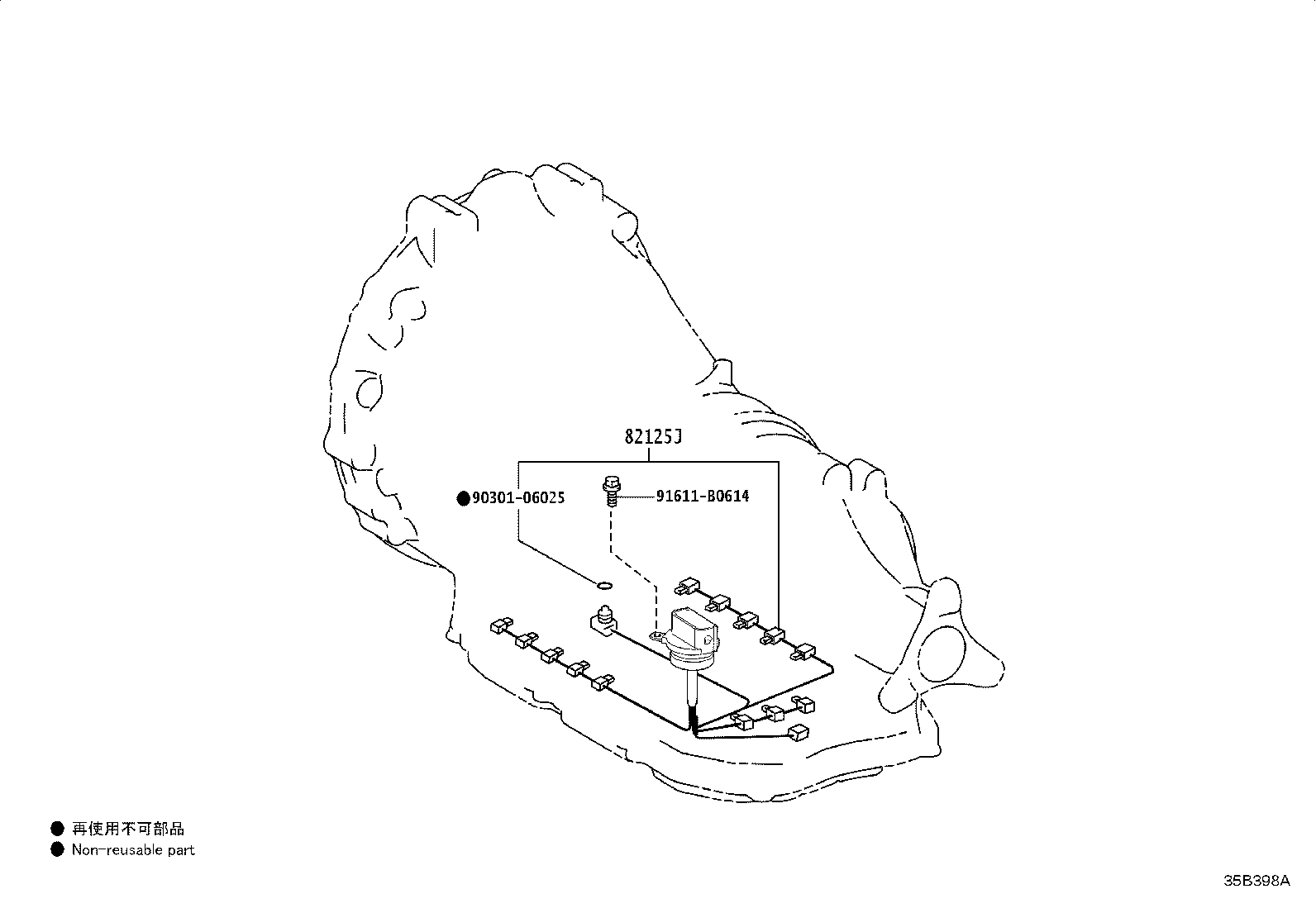

| 82125J | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
