Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

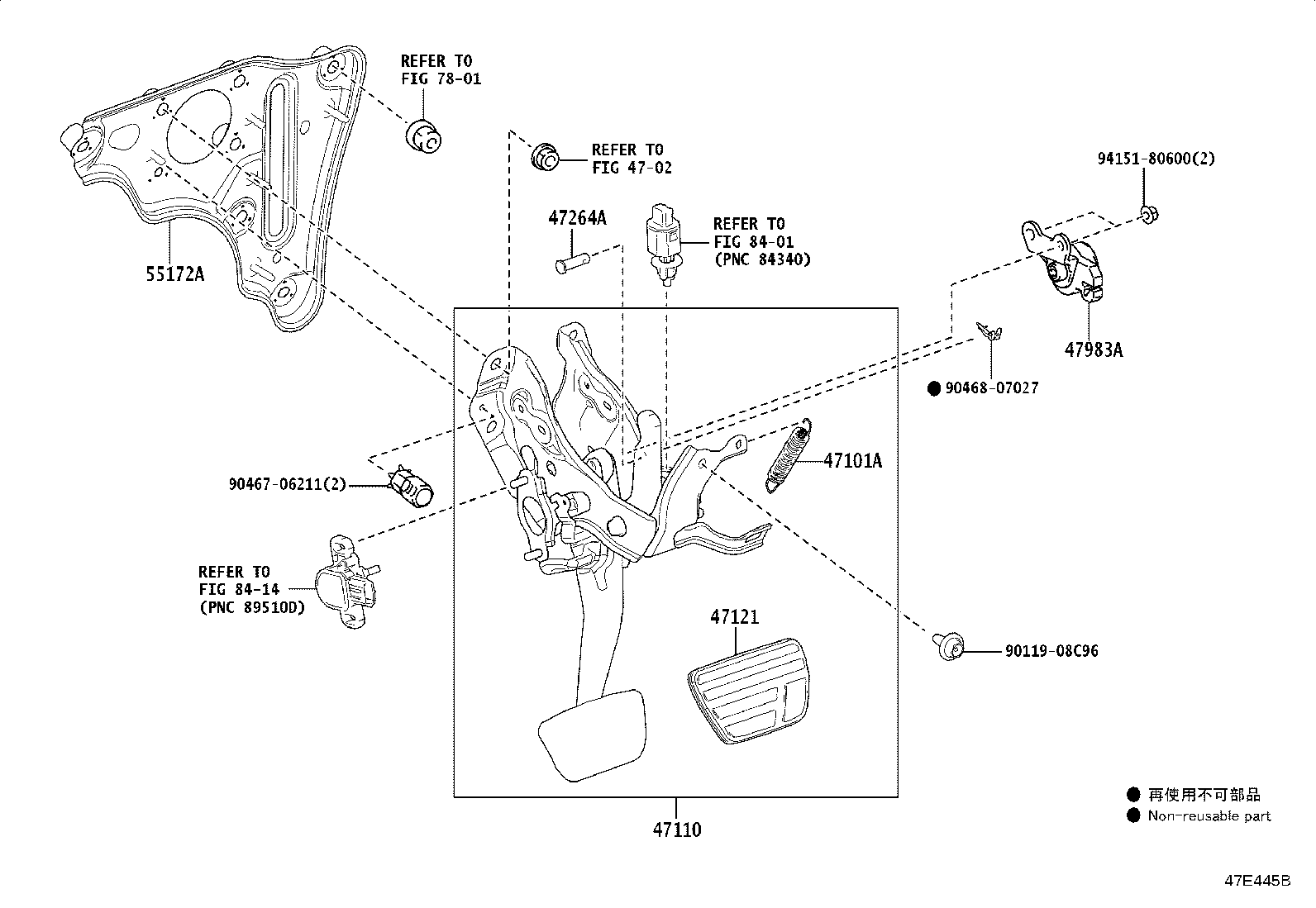

Brake Pedal & Bracket
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47264A | Pin(FOR PUSH ROD) |
| 47983A | Damper, Brake Traction |
| 55172A | Base, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
