Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05
Hood & Front Fender
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382F | Seal, Hood TO Radiator Support, RH |
| 53382G | Seal, Hood TO Radiator Support, LH |
| 53382H | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382J | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53807D | Reinforcement Sub-assy, Front Fender, Top RH |
| 53808D | Reinforcement Sub-assy, Front Fender, Top LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53827Q | Clip, Front Fender Side Panel Protector, NO.1 |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53828N | Clip, Front Fender Side Panel Protector, NO.1 |
| 53833A | Panel, Front Fender Side, Lower RH |
| 53834 | Panel, Front Fender Side, Lower LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

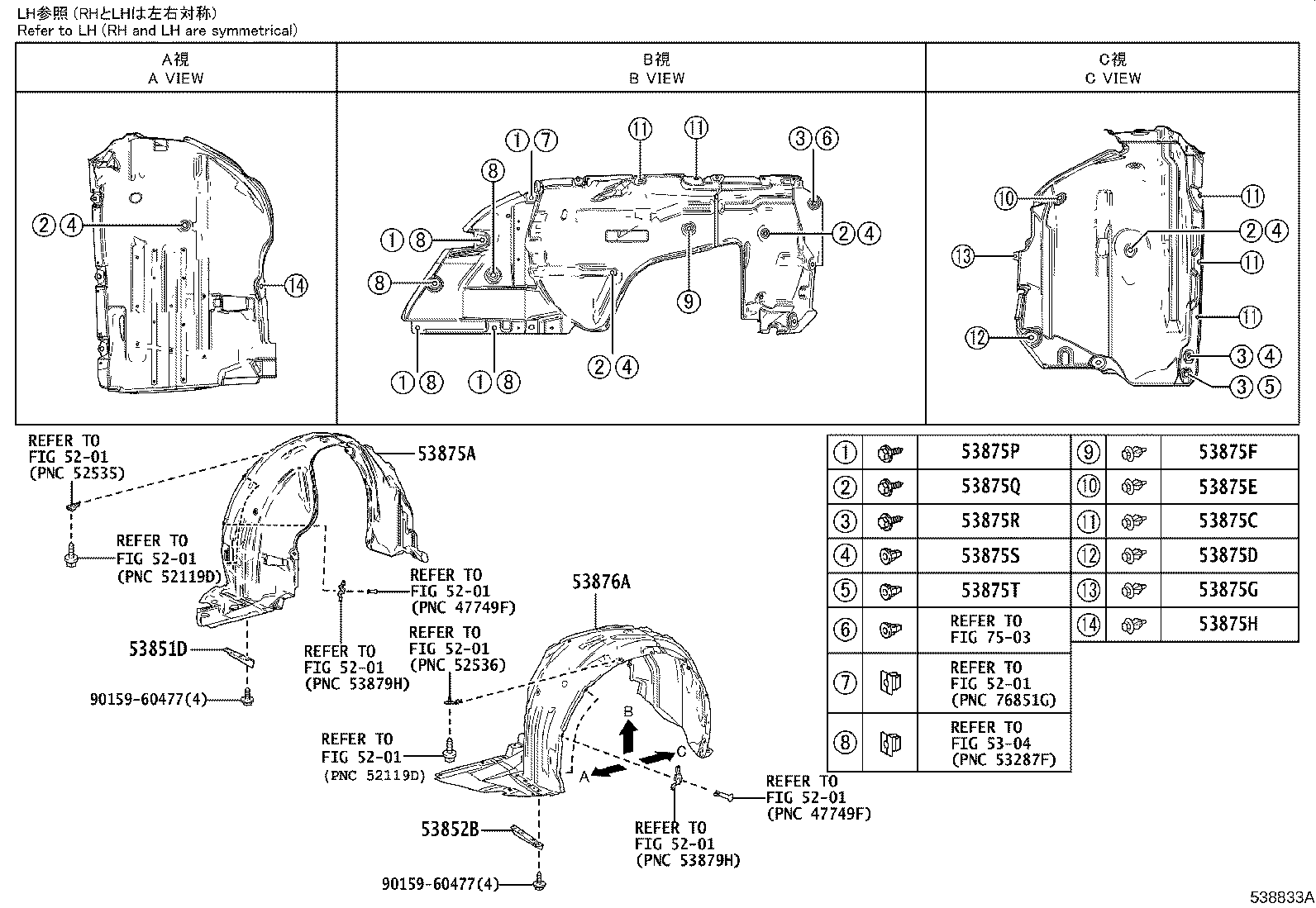

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875E | Clip, Front Fender Liner, NO.3 |
| 53875F | Clip, Front Fender Liner, NO.4 |
| 53875G | Clip, Front Fender Liner, NO.5 |
| 53875H | Clip, Front Fender Liner, NO.6 |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53875R | Screw, NO.3 |
| 53875S | Grommet, NO.1 |
| 53875T | Grommet, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 65487A | Clip, Corner Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
