Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

92 part groups · 4 illustrations

Illustrations

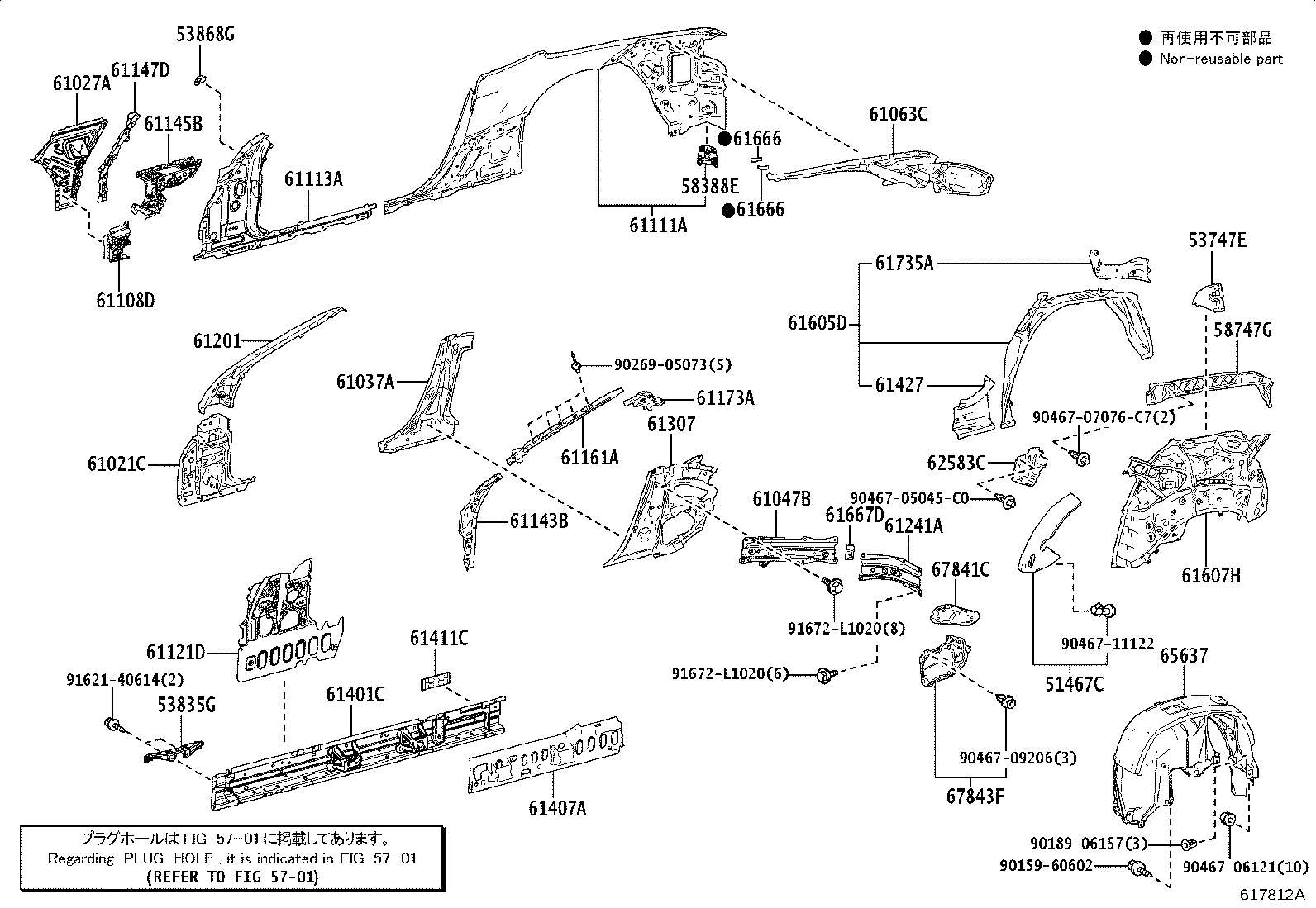

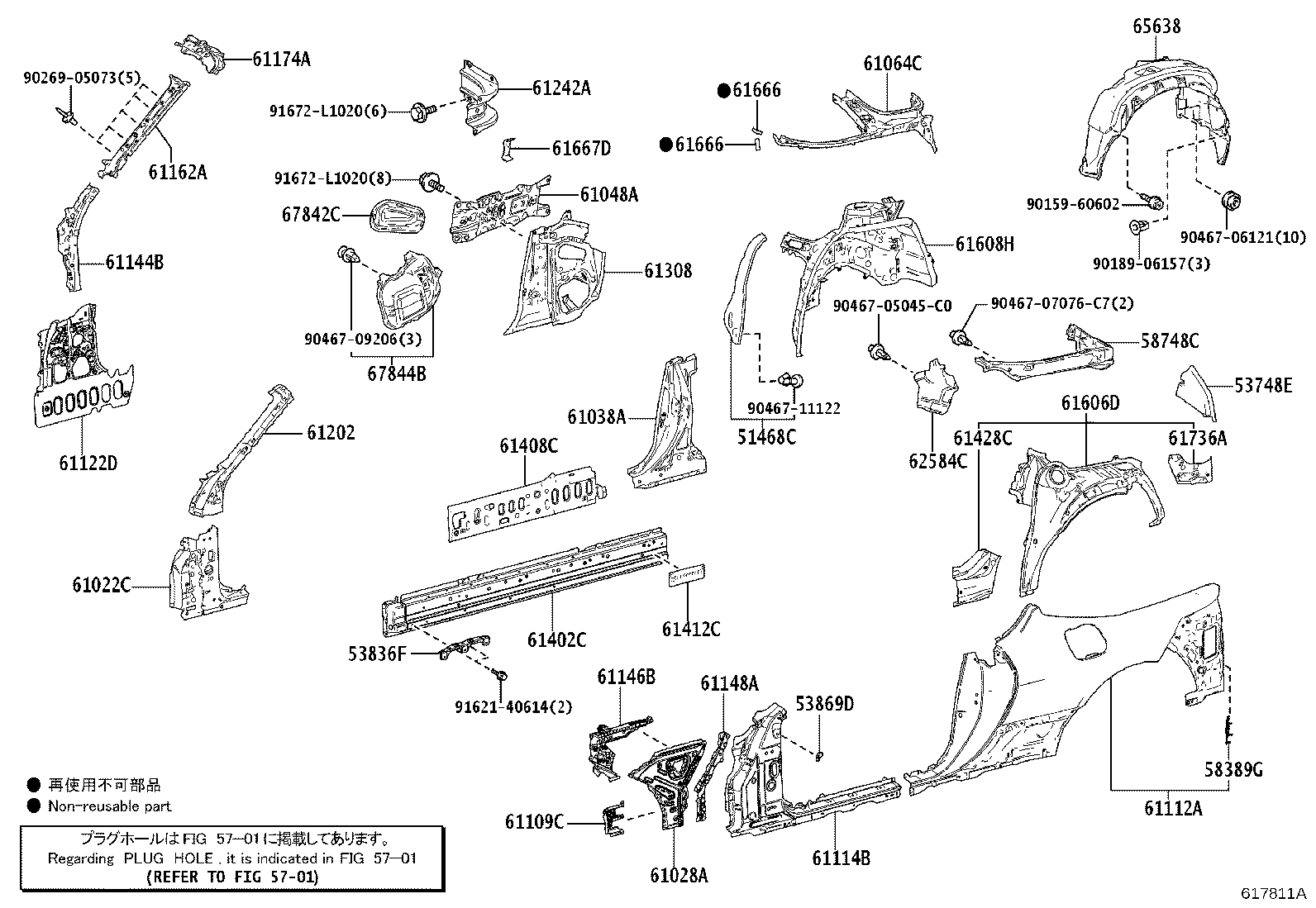

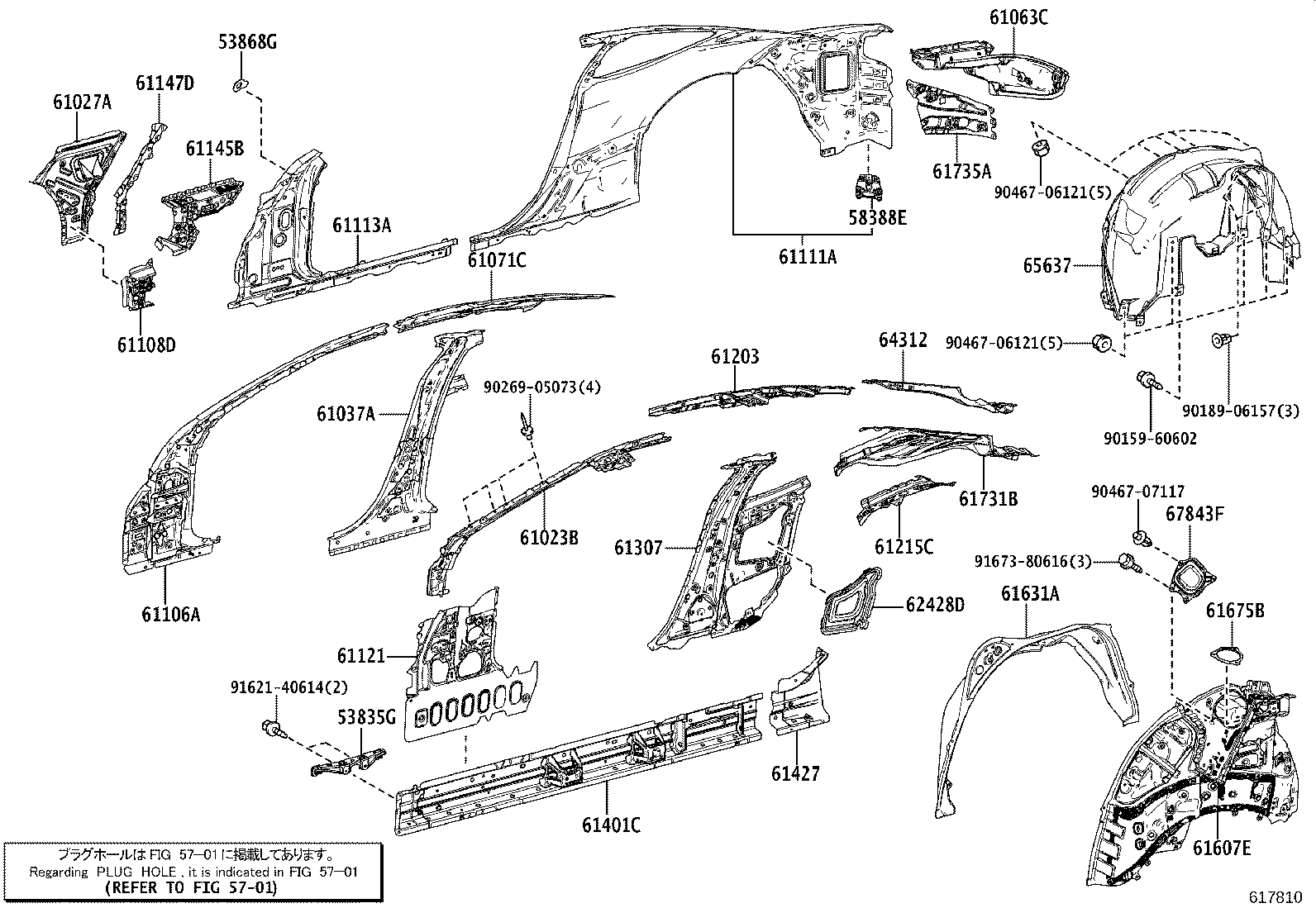

Figure 617809A 617809A 2023-05 → — Figure 617810 617810 2023-05 → — Figure 617811A 617811A 2023-05 → — Figure 617812A 617812A 2023-05 → —

Part groups

PNCDescription
51467C Silencer, Side Rail Inner, NO.2 RH
51468C Silencer, Side Rail Inner, NO.2 LH
53747E Plate, Air Sealed, RH
53748E Plate, Air Sealed, LH
53835G Bracket, Front Side Panel, RH
53836F Bracket, Front Side Panel, LH
53868G Seal, Front Fender TO Cowl Side, NO.2 RH
53869D Seal, Front Fender TO Cowl Side, NO.2 LH
58388E Plate, Body Lower Back Reinforcement, RH
58389G Plate, Body Lower Back Reinforcement, LH
58747G Protector, Quarter Panel, Rear RH
58748C Protector, Quarter Panel, Rear LH
61021C Pillar Sub-assy, Front Body, RH
61022C Pillar Sub-assy, Front Body, LH
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61027A Pillar Sub-assy, Front Body, Outer RH
61028A Pillar Sub-assy, Front Body, Outer LH
61037A Reinforcement Sub-assy, Center Body Pillar, RH
61038A Reinforcement Sub-assy, Center Body Pillar, LH
61047B Reinforcement Sub-assy, Center Body Pillar, Center RH
61048A Reinforcement Sub-assy, Center Body Pillar, Center LH
61063C Trough Sub-assy, Luggage Door Opening, Front RH
61064C Trough Sub-assy, Luggage Door Opening, Front LH
61071C Reinforcement Sub-assy, Seat Belt Ancer, Upper RH
61072C Reinforcement Sub-assy, Seat Belt Ancer, Upper LH
61106A Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B Reinforce Sub-assy, Front Body Pillar, Upper LH
61108D Reinforcement Sub-assy, Front Pillar, Lower RH
61109C Reinforcement Sub-assy, Front Pillar, Lower LH
61111A Panel, Front Side, Outer RH
61112A Panel, Front Side, Outer LH
61113A Panel, Side, Outer NO.2 RH
61114B Panel, Side, Outer NO.2 LH
61121 Panel, Cowl Side, Outer RH
61121D Panel, Cowl Side, RH
61122D Panel, Cowl Side, LH
61143B Gusset, Front Body Pillar, Upper Inner RH
61144B Gusset, Front Body Pillar, Upper Inner LH
61145B Gusset, Front Body Pillar, Lower RH
61146B Gusset, Front Body Pillar, Lower LH
61147D Extension, Front Body Pillar, Upper Outer RH
61148A Extension, Front Body Pillar, Upper Outer LH
61161A Pillar, Front Body, Inner RH
61162A Pillar, Front Body, Inner LH
61173A Reinforcement, Front Body Pillar, Upper Inner RH
61174A Reinforcement, Front Body Pillar, Upper Inner LH
61201 Rail Sub-assy, Roof Side, RH
61202 Rail Sub-assy, Roof Side, LH
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61215C Rail, Roof Side, Outer Rear RH
61216A Rail, Roof Side, Outer Rear LH
61241A Gusset, Roof Side Rail, Rear RH
61242A Gusset, Roof Side Rail, Rear LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61401C Panel Sub-assy, Rocker, Outer RH
61402C Panel Sub-assy, Rocker, Outer LH
61407A Plate Sub-assy, Step, Lower RH
61408C Plate Sub-assy, Step, Lower LH
61411C Extension, Rocker, Outer RH
61412C Extension, Rocker, Outer LH
61427 Reinforcement, Rocker Panel, NO.5 RH
61428C Reinforcement, Rocker Panel, NO.5 LH
61605D Panel Sub-assy, Quarter Wheel House, Outer RH
61606D Panel Sub-assy, Quarter Wheel House, Outer LH
61607E Panel, Quarter Wheel House, Inner RH
61607H Panel Sub-assy, Quarter Wheel House, Inner RH
61608H Panel Sub-assy, Quarter Wheel House, Inner LH
61631A Panel, Quarter Wheel House, Outer RH
61632A Panel, Quarter Wheel House, Outer LH
61666 Seal, Quarter Panel
61667D Seal, Quarter Panel
61675B Reinforcement, Rear Suspension Spring Support
61676E Reinforcement, Rear Suspension Spring Support
61731B Panel, Roof Side, Inner RH
61732B Panel, Roof Side, Inner LH
61735A Panel, Roof Side, Inner Rear RH
61736A Panel, Roof Side, Inner Rear LH
62428D Cover, Center Pillar, RH
62429D Cover, Center Pillar, LH
62583C Cover, Quarter Pillar, Upper RH
62584C Cover, Quarter Pillar, Upper LH
64312 Bracket, Package Tray, RH
64313 Bracket, Package Tray, LH
65637 Liner, Rear Wheel House, RH
65638 Liner, Rear Wheel House, LH
67841C Cover, Quarter Service Hole, RH
67842C Cover, Quarter Service Hole, LH
67843F Cover, Quarter Service Hole, NO.2 RH
67844B Cover, Quarter Service Hole, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
