Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

29 part groups · 3 illustrations

Illustrations

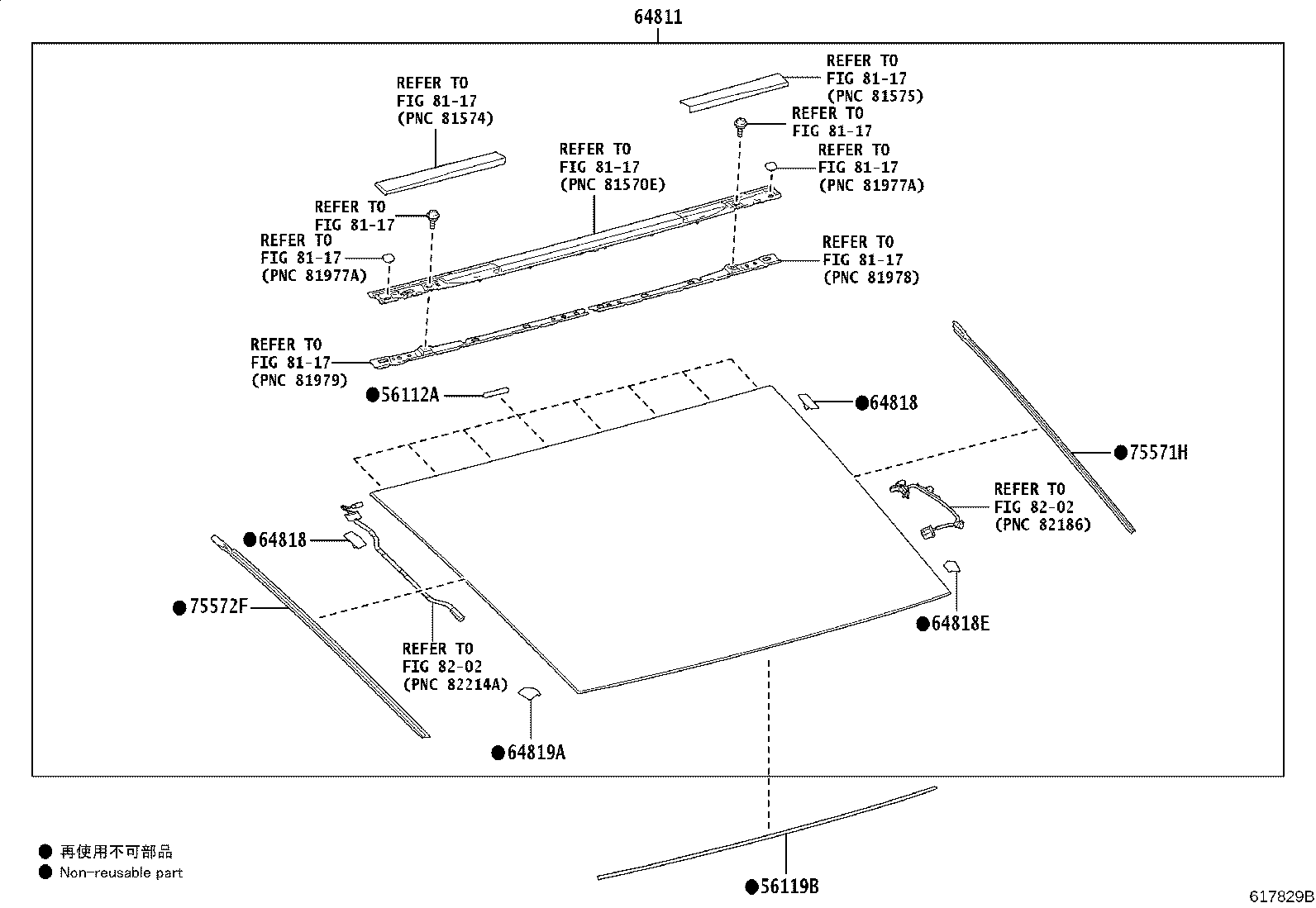

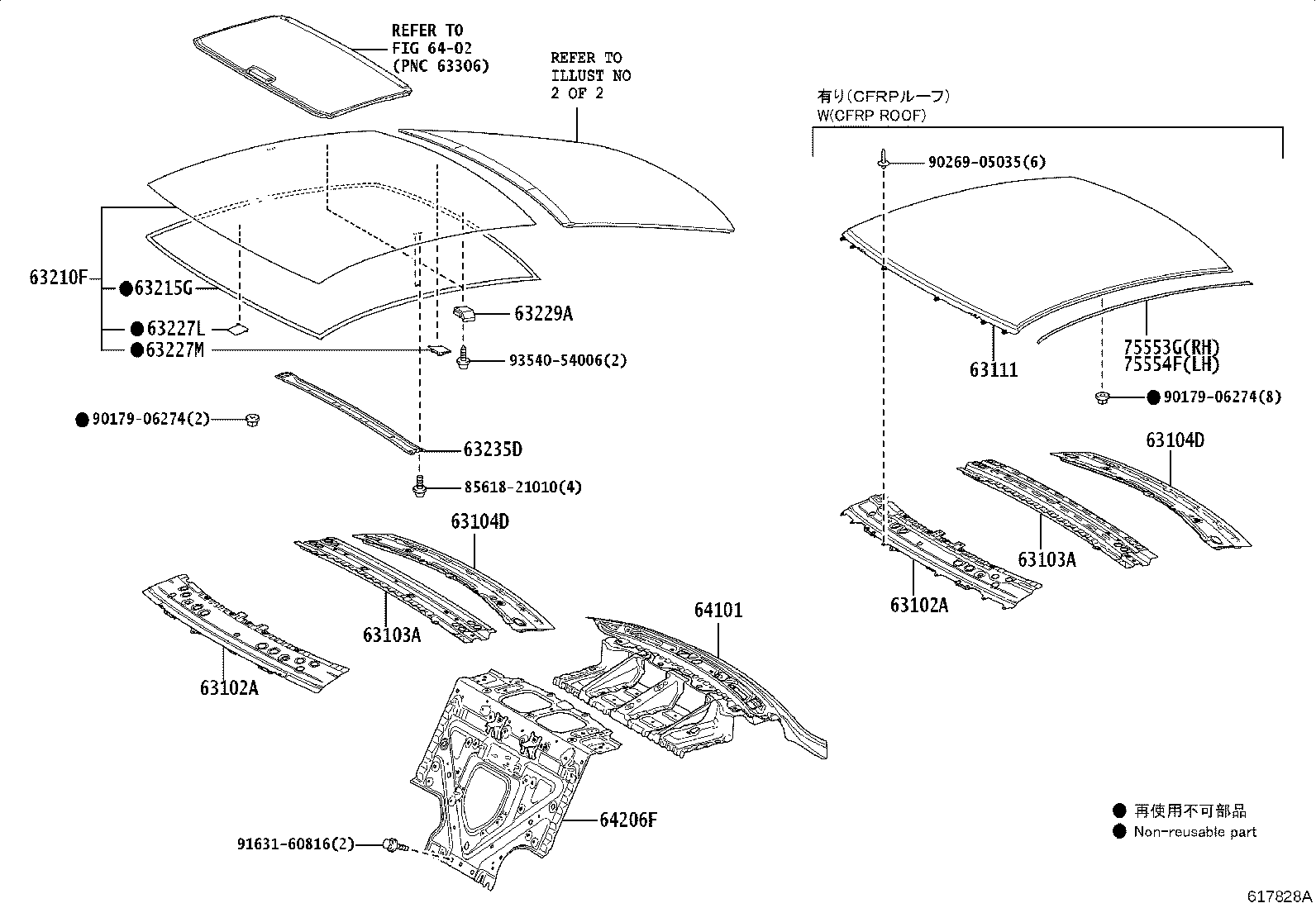

Figure 617827 617827 2023-05 → — Figure 617828A 617828A 2023-05 → — Figure 617829B 617829B 2023-05 → —

Part groups

PNCDescription
56112A Dam, Window Glass Adhesive
56119B Dam, Back Window Glass Adhesive
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63111 Panel, Roof
63132C Panel, Windshield Header, Inner
63210F Glass Assy, Moon Roof
63215G Moulding, Moon Roof, Front
63227L Clip, Roof Window
63227M Clip, Roof Window, Lower
63229A Stopper, Sliding Roof Sunshade
63235D Frame, Sliding Roof Housing, Center
63281F Stopper, Removable Roof Lock
64101 Panel Sub-assy, Upper Back
64206F Panel Sub-assy, Room Partition
64208B Member Sub-assy, Room Partition Cross
64811 Glass, Back Window
64818 Spacer, Back Window Glass
64818E Spacer, Back Window Glass, NO.1
64819A Spacer, Back Window Glass, NO.2
66433 Brace, Side Rear Step, RH
66434 Brace, Side Rear Step, LH
69431 Striker, Top Cover Lock, NO.1 RH
69432 Striker, Top Cover Lock, NO.1 LH
75553G Moulding, Roof Drip Side, Rear RH
75554F Moulding, Roof Drip Side, Rear LH
75571H Moulding, Back Window, Outside Upper RH
75572F Moulding, Back Window, Outside Upper LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
