Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

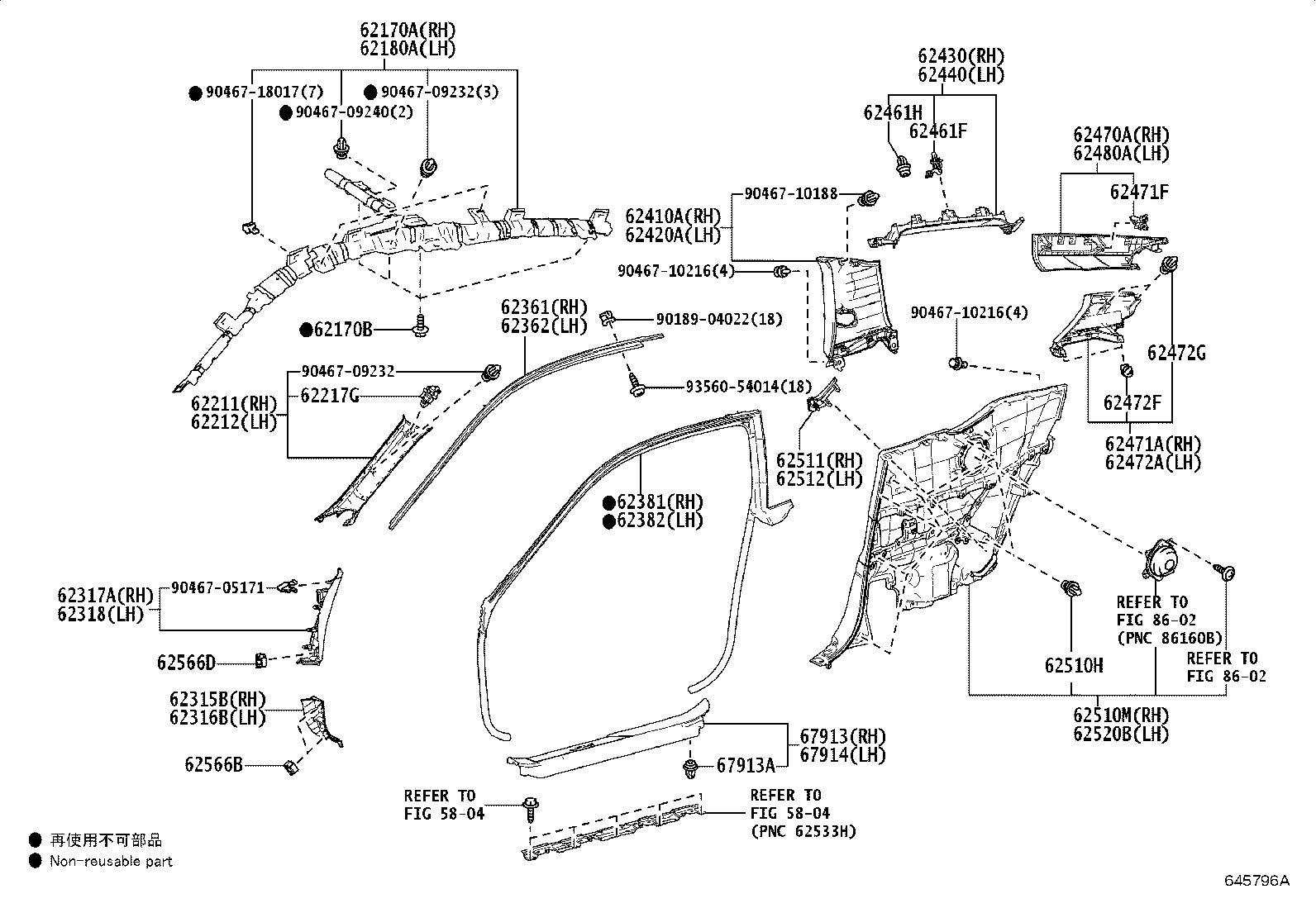

Inside Trim Board & Door Opening Trim Moulding
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62315B | Cover, Front Door Opening Trim, RH |
| 62316B | Cover, Front Door Opening Trim, LH |
| 62317A | Cover, Front Door Opening Trim, NO.2 RH |
| 62318 | Cover, Front Door Opening Trim, NO.2 LH |
| 62361 | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362 | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62383A | Weatherstrip, Roof Side Rail, Rear RH |
| 62384A | Weatherstrip, Roof Side Rail, Rear LH |
| 62410A | Garnish Assy, Center Pillar, RH |
| 62420A | Garnish Assy, Center Piller, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62472F | Clip(FOR REAR PILLAR GARNISH) |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510M | Panel Assy, Quarter Trim, RH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62520B | Panel Assy, Quarter Trim, LH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62566D | Clamp, Front Door Opening Trim Cover |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 68173E | Weatherstrip, Quarter Trim Panel, Inner RH |
| 68174D | Weatherstrip, Quarter Trim Panel, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
