Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

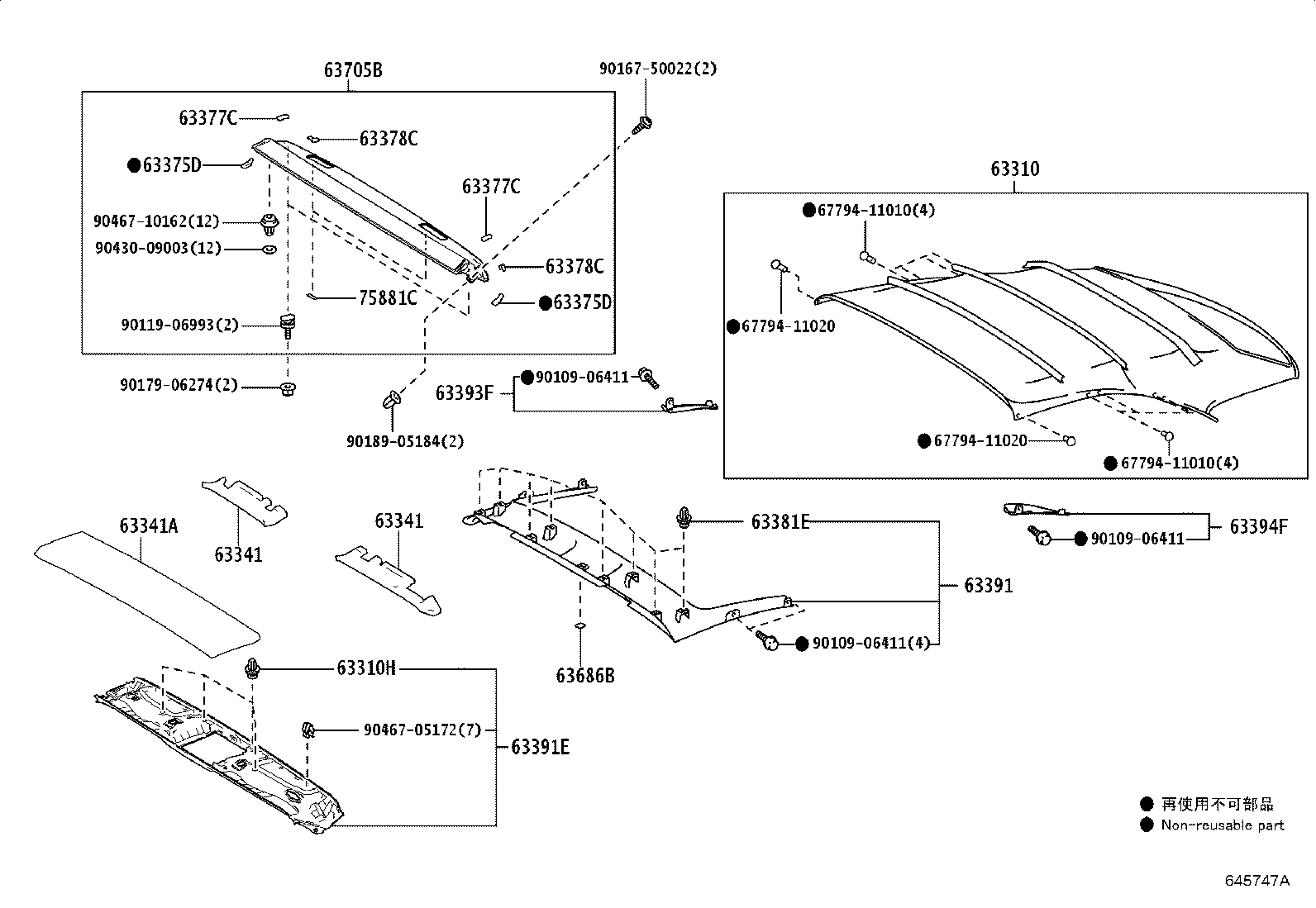

Roof Headlining & Silencer Pad
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62431K | Garnish, Roof Side Rail |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63312F | Clip, Roof Headlining, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341A | Silencer, Roof, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63375D | Moulding, Roof Headlining |
| 63377C | Moulding, Roof Headlining, NO.2 |
| 63378C | Moulding, Roof Headlining, NO.3 |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63388A | Cover, Roof Headlining Holder |
| 63388F | Cover, Roof Headlining Holder, LH |
| 63391 | Trim, Roof Headlining, Front |
| 63391E | Trim, Roof Headlining, Front |
| 63393E | Trim, Roof Headlining |
| 63393F | Trim, Roof Headlining, RH |
| 63394F | Trim, Roof Headlining, LH |
| 63686B | Cover, Removable Roof Holder |
| 63705B | Garnish Sub-assy, Roof Header |
| 75881C | Joint, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
