Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

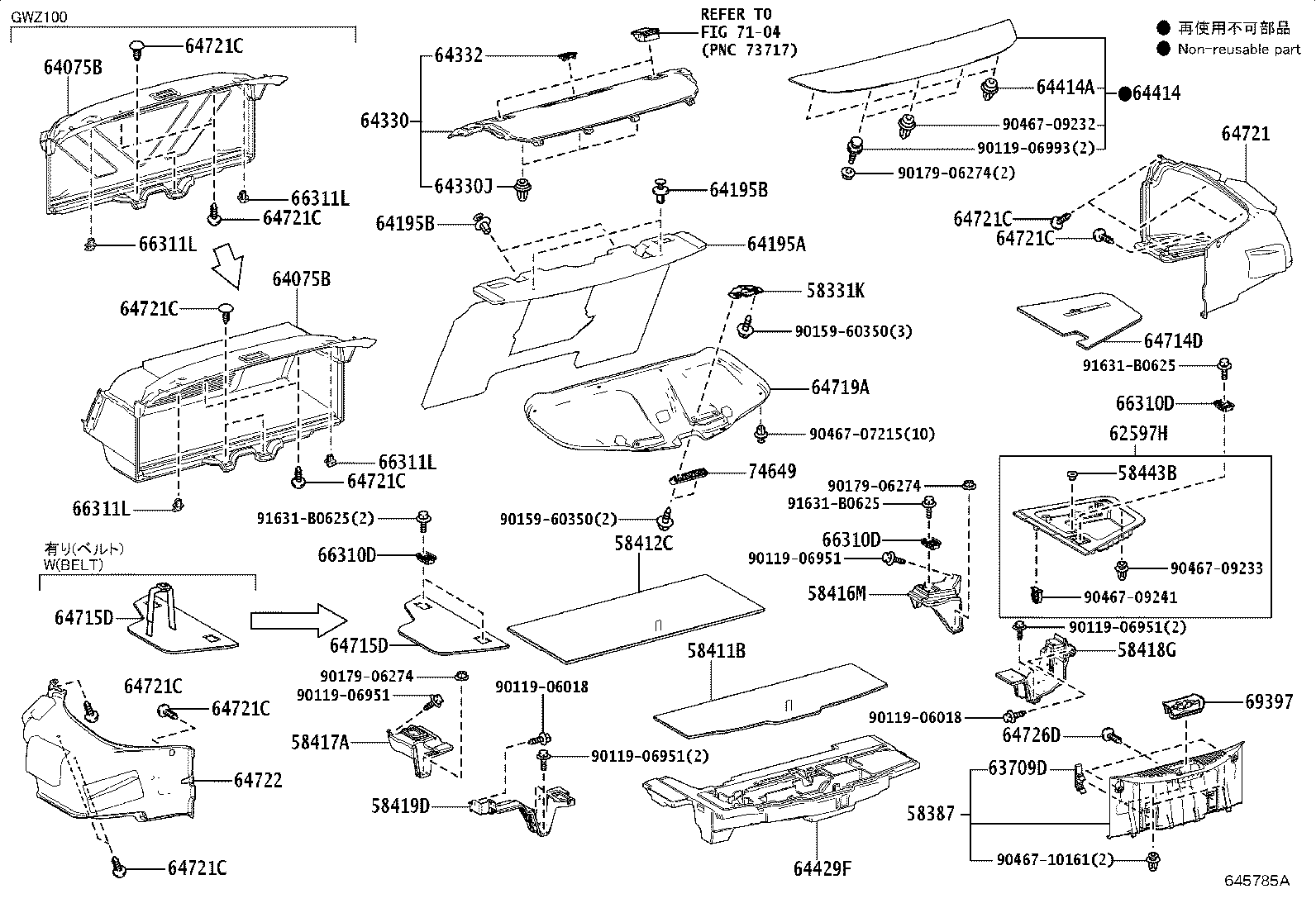

Package Tray Panel & Luggage Compartment Mat
54 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58331K | Bracket, Luggage Compartment Trim, NO.1 |
| 58387 | Plate, Rear Floor Finish |
| 58411B | Board, Deck, NO.1 |
| 58412C | Board, Deck, NO.2 |
| 58416M | Bracket, Deck Board, NO.1 RH |
| 58417A | Bracket, Deck Board, NO.1 LH |
| 58418G | Bracket, Deck Board, NO.2 |
| 58419D | Bracket, Deck Board, NO.3 |
| 58443B | Cushion, Deck Board, NO.1 |
| 62401B | Fastener, Hook |
| 62597H | Box, Side Trim |
| 63709D | Band Sub-assy, Room Rack |
| 64075B | Cover, Luggage Compartment Trim, Front |
| 64075C | Clip, Luggage Compartment Trim Cover |
| 64195A | Insulator, Room Partition Panel |
| 64195B | Clip(FOR ROOM PARTITION PANEL INSULATOR) |
| 64275H | Cover, Room Partition, NO.1 |
| 64277C | Cover, Room Partition, NO.2 |
| 64314E | Reinforcement, Package Tray Bracket |
| 64317B | Reinforcement, Package Tray Bracket, NO.2 RH |
| 64318A | Reinforcement, Package Tray Bracket, NO.2 LH |
| 64326 | Bracket, Package Tray Trim, Center |
| 64330 | Panel Assy, Package Tray Trim |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64332 | Cover, Package Tray Trim |
| 64333D | Cover, Package Tray Trim Side, RH |
| 64337 | Garnish, Package Tray Trim, RH |
| 64337B | Clip(FOR PACKAGE TRAY TRIM GARNISH) |
| 64339C | Garnish, Package Tray Trim, NO.2 |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64347 | Retainer, Package Tray Trim Edge Side |
| 64376A | Spacer, Package Tray Trim, NO.2 |
| 64414 | Panel, Luggage Compartment Door, Outer Lower |
| 64414A | Clip, Luggage Compartment Door Panel |
| 64429F | Box, Luggage Compartment Trim |
| 64706C | Clip |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64722B | Cover, Luggage Compartment Trim, NO.2 |
| 64726D | Clip, Luggage Trim, Rear |
| 64831C | Weatherstrip, Back Window Glass, RH |
| 64832B | Weatherstrip, Back Window Glass, LH |
| 66310D | Hook Assy, Rope |
| 66311L | Hook,Rope |
| 69195B | Grip Assy, Luggage Compartment Door Assist |
| 69397 | Protector, Back Door Lock |
| 74649 | Grip, Luggage Compartment Door Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
