Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05
Front Door Panel & Glass
56 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62775D | Clip, Front Side Window, RH |
| 62775E | Clip, Front Side Window, LH |
| 67001A | Cushion, Front Door Panel |
| 67011 | Panel Sub-assy, Front Door, Outside RH |
| 67012 | Panel Sub-assy, Front Door, Outside LH |
| 67015 | Panel Sub-assy, Front Door, Inside RH |
| 67016 | Panel Sub-assy, Front Door, Inside LH |
| 67211G | Stop, Front Door Window, Upper |
| 67235C | Stabilizer, Door Glass Female, RH |
| 67236C | Stabilizer, Door Glass Female, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67533E | Seal, Front Door Division Bar, RH |
| 67534E | Seal, Front Door Division Bar, LH |

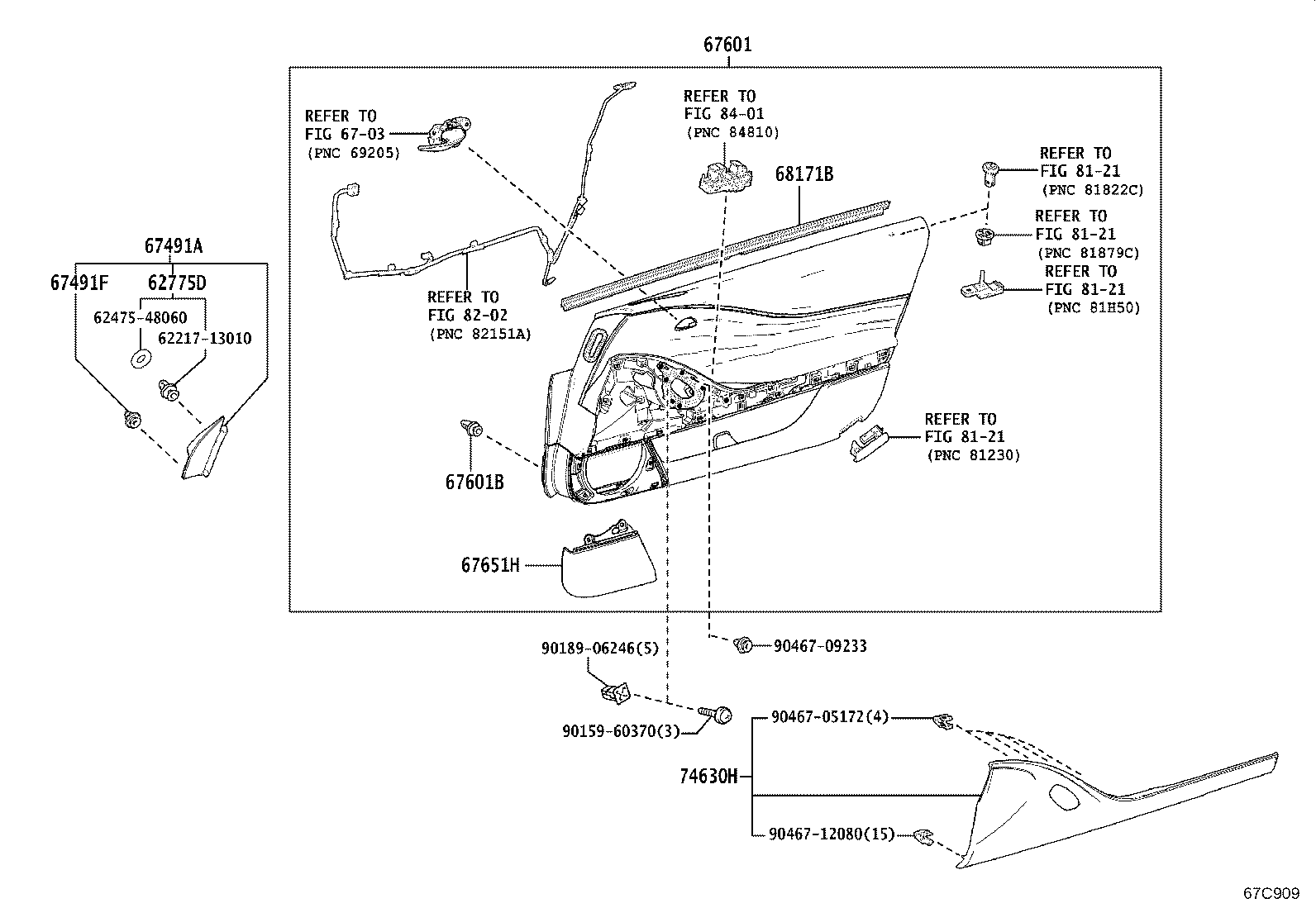

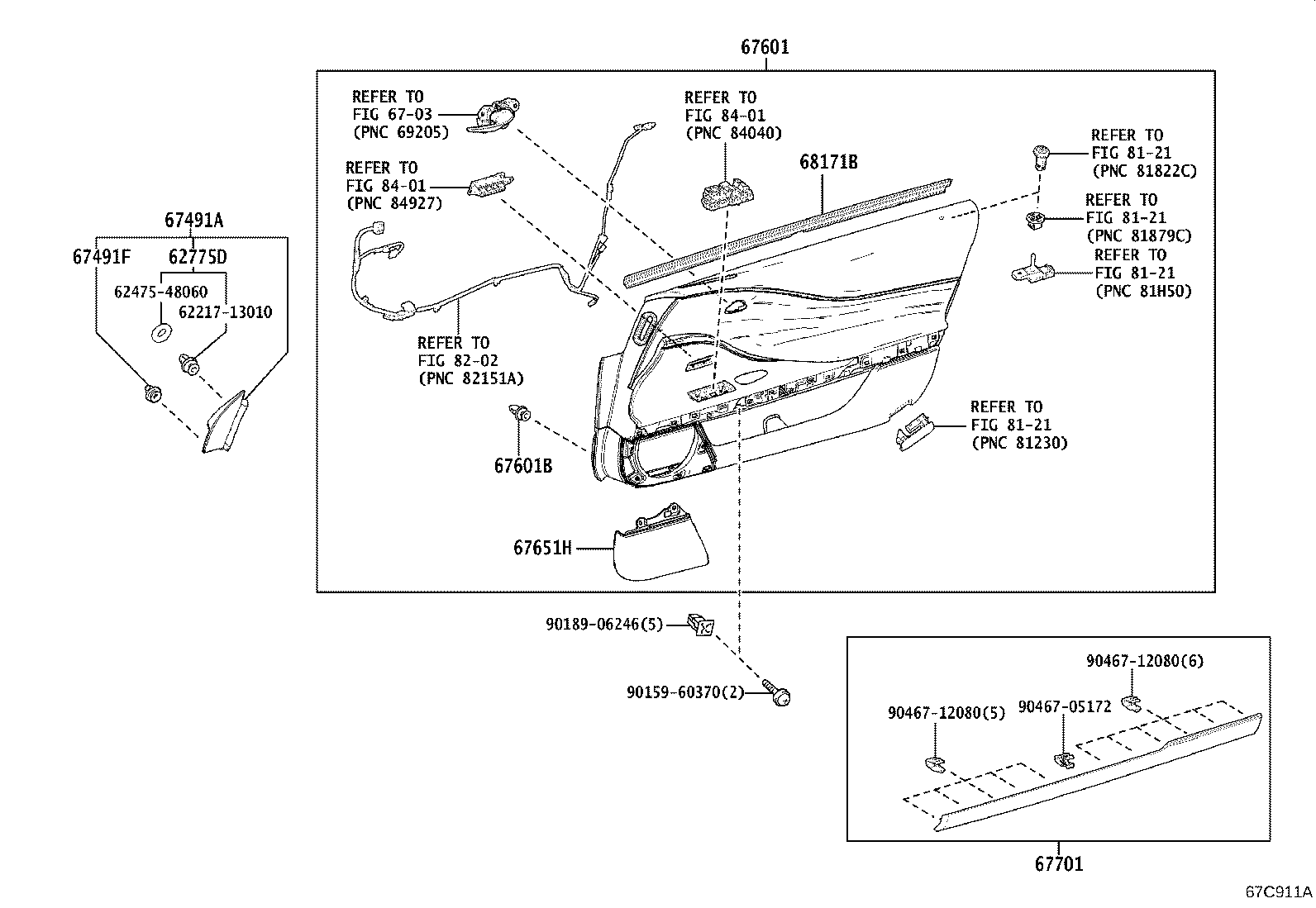

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |

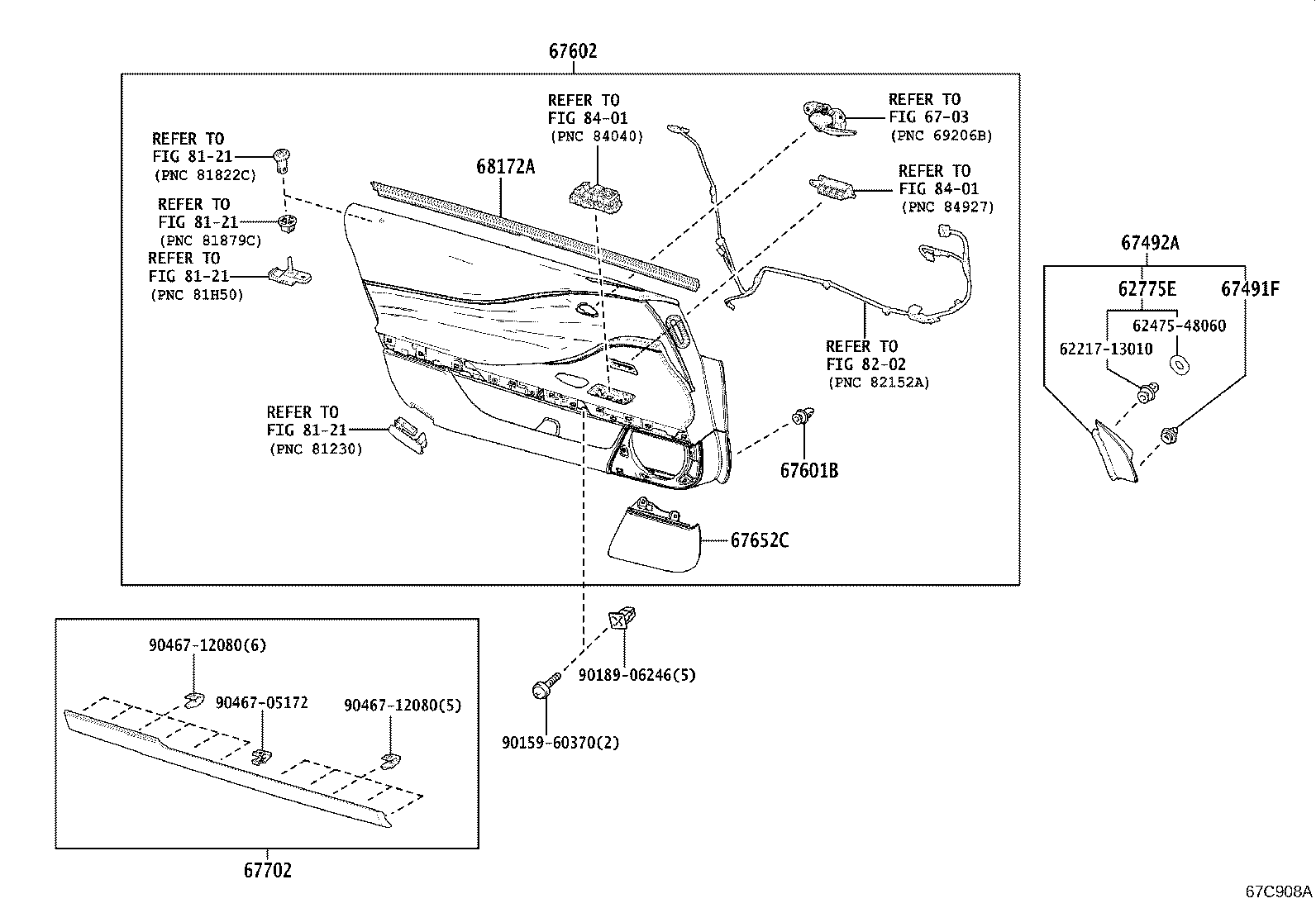

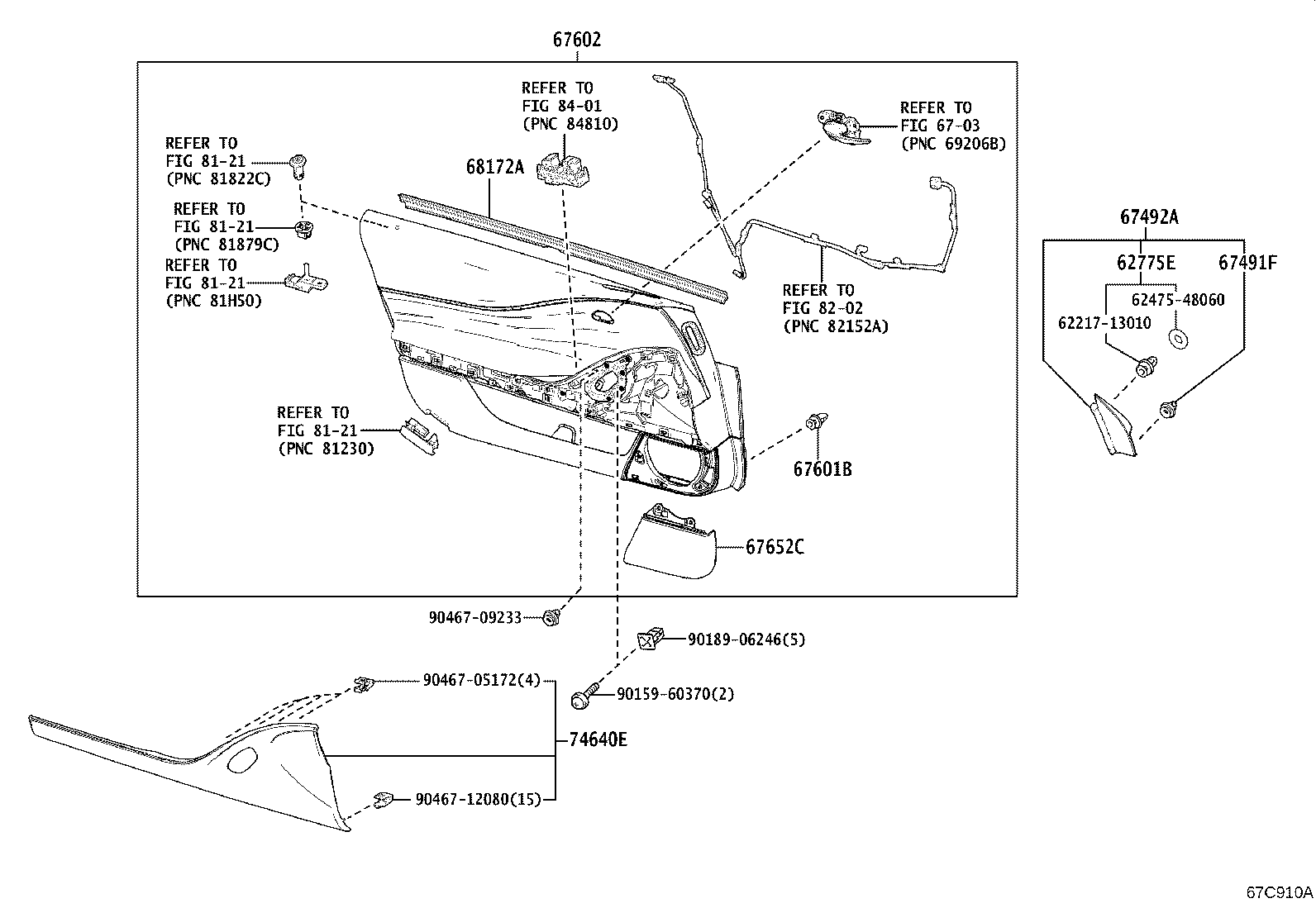

| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67701 | Cover Sub-assy, Front Door Trim, RH |
| 67702 | Cover Sub-assy, Front Door Trim, LH |
| 67743C | Seal, Front Door Trim |
| 67744A | Seal, Front Door Trim, LH |
| 67801 | Cover Sub-assy, Front Door Hole, NO.1 RH |
| 67802 | Cover Sub-assy, Front Door Hole, NO.1 LH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67837B | Seal, Front Door Dust Proof |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863H | Weatherstrip, Front Door, NO.2 RH |
| 67864H | Weatherstrip, Front Door, NO.2 LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67867 | Clip, Door Weatherstrip |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67867L | Retainer, Front Door Trim Seal |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 67873K | Weatherstrip, Access Panel, Rear RH |
| 67874A | Weatherstrip, Access Panel, Rear LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 68620 | Check Assy, Front Door, LH |
| 74630H | Grip Assy, Front Door Assist, RH |
| 74640E | Grip Assy, Front Door Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
