Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

8 part groups · 2 illustrations

Illustrations

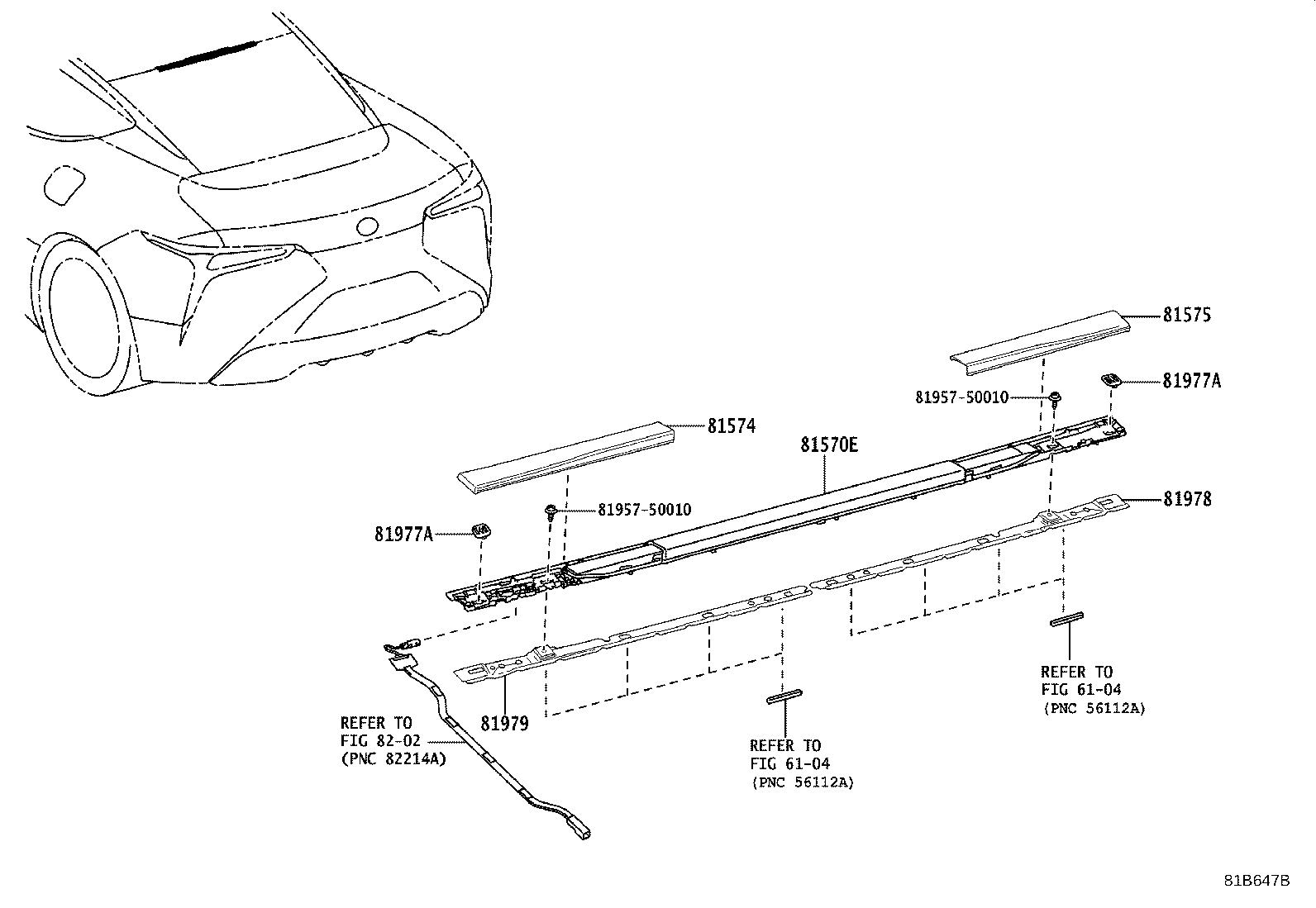

Figure 81B8HK 81B8HK 2023-05 → — Figure 81B647B 81B647B 2023-05 → —

Part groups

PNCDescription
81570 Lamp Assy, Center Stop
81570E Lamp Assy, Center Stop W/O Harness
81574 Cover, Center Stop Lamp
81575 Cover, Center Stop Lamp, NO.2
81977A Clip (FOR CENTER STOP LAMP)
81978 Bracket, Stop Center
81979 Bracket, Center Stop Lamp, LH
82214D Wire, Center Stop Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
