Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05
Interior Lamp

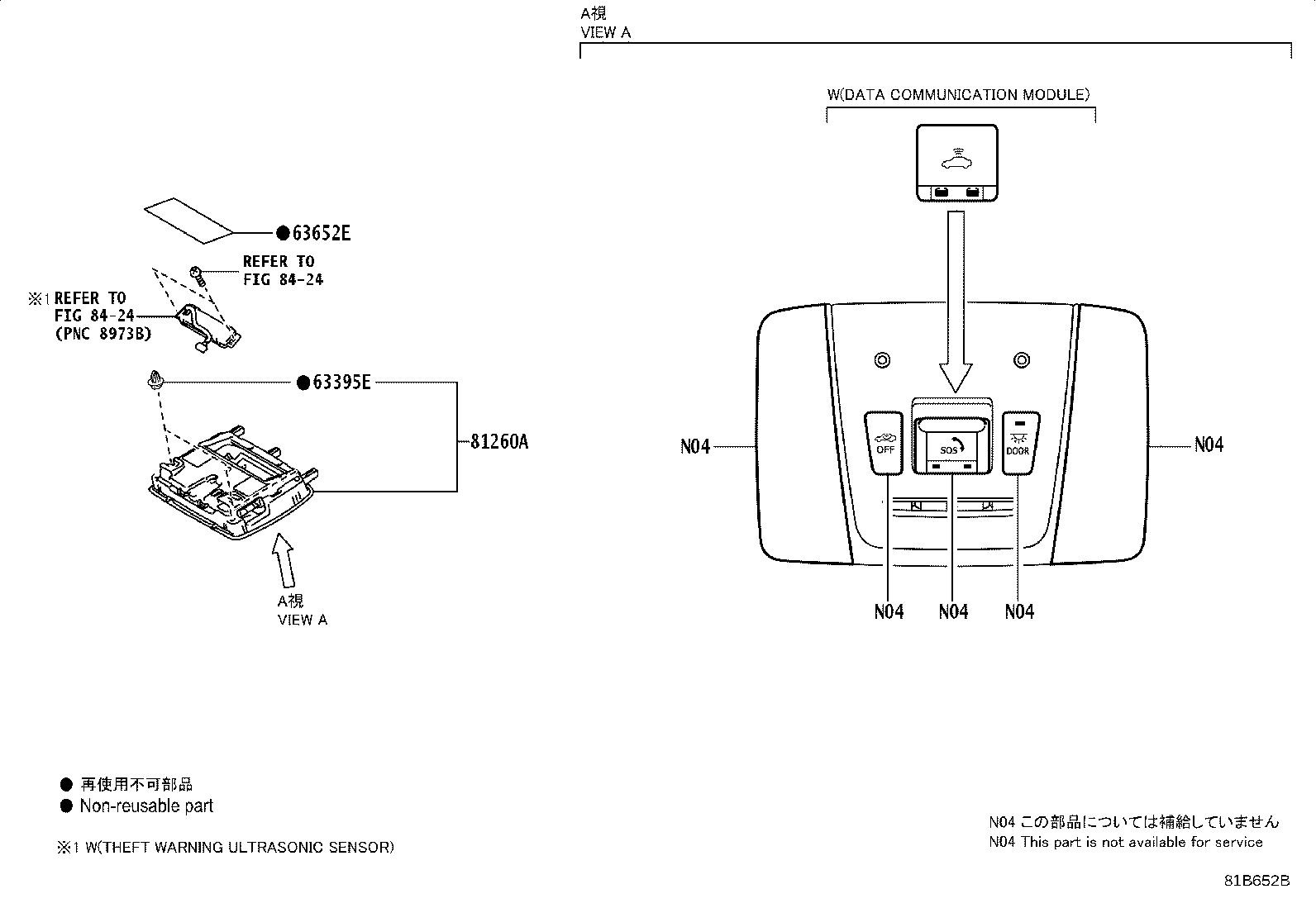

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 63652E | Cover, Roof Console Box, NO.1 |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81822C | Cover, Indicator Lamp |
| 81879C | Bracket, Indicator Lamp |
| 81H50 | Lamp Assy, Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
