Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe
Supported model
Data version 2023-05

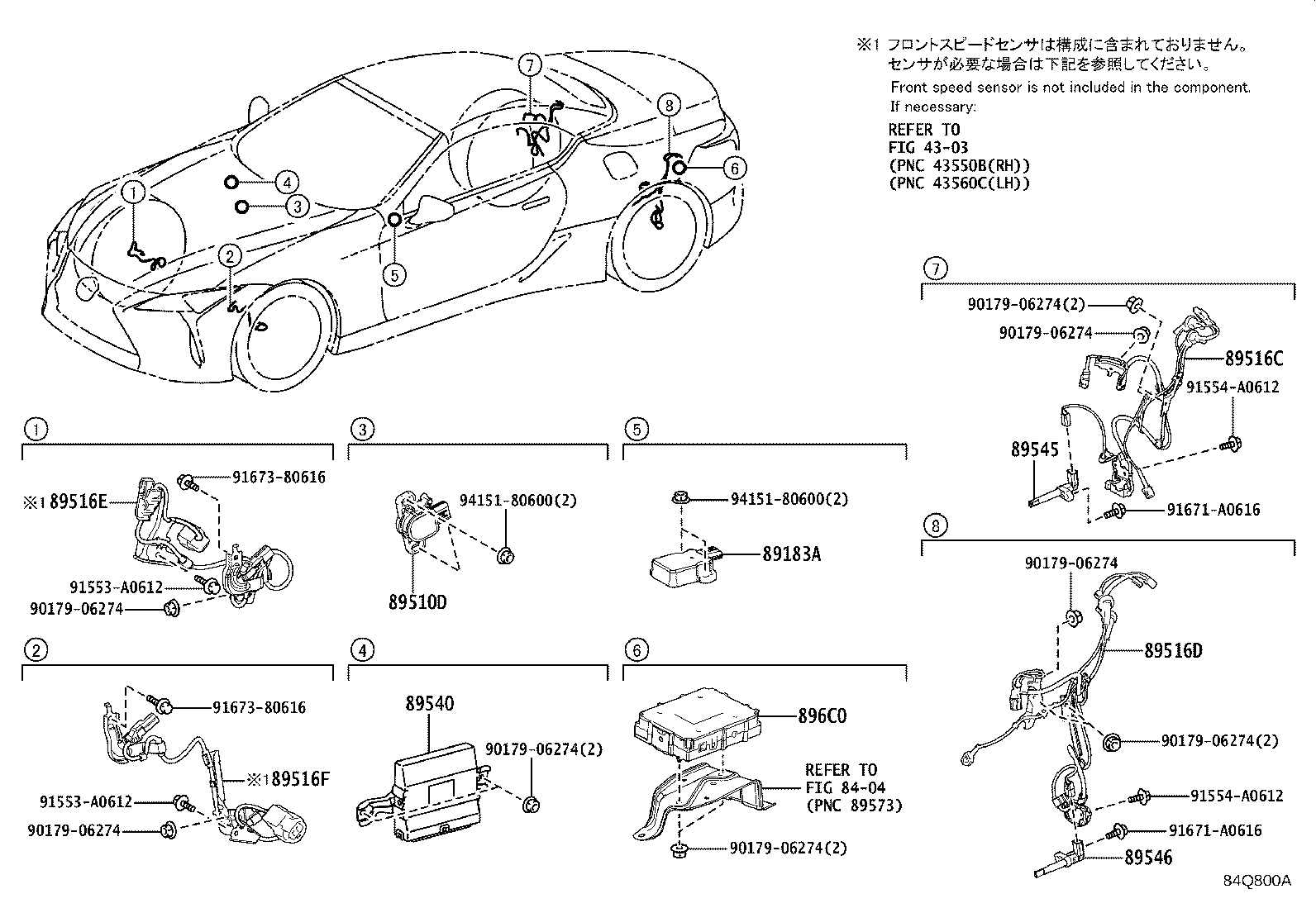

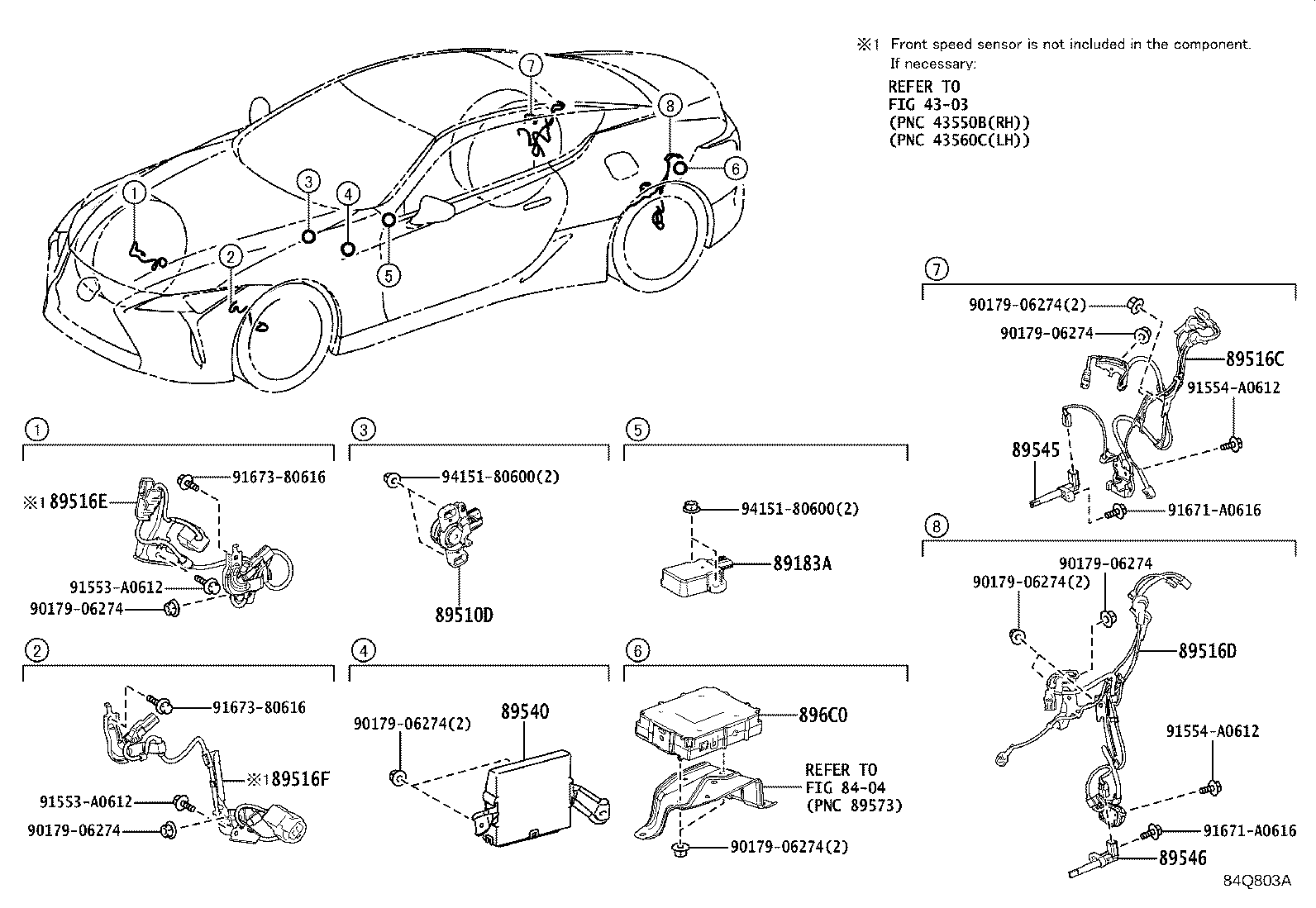

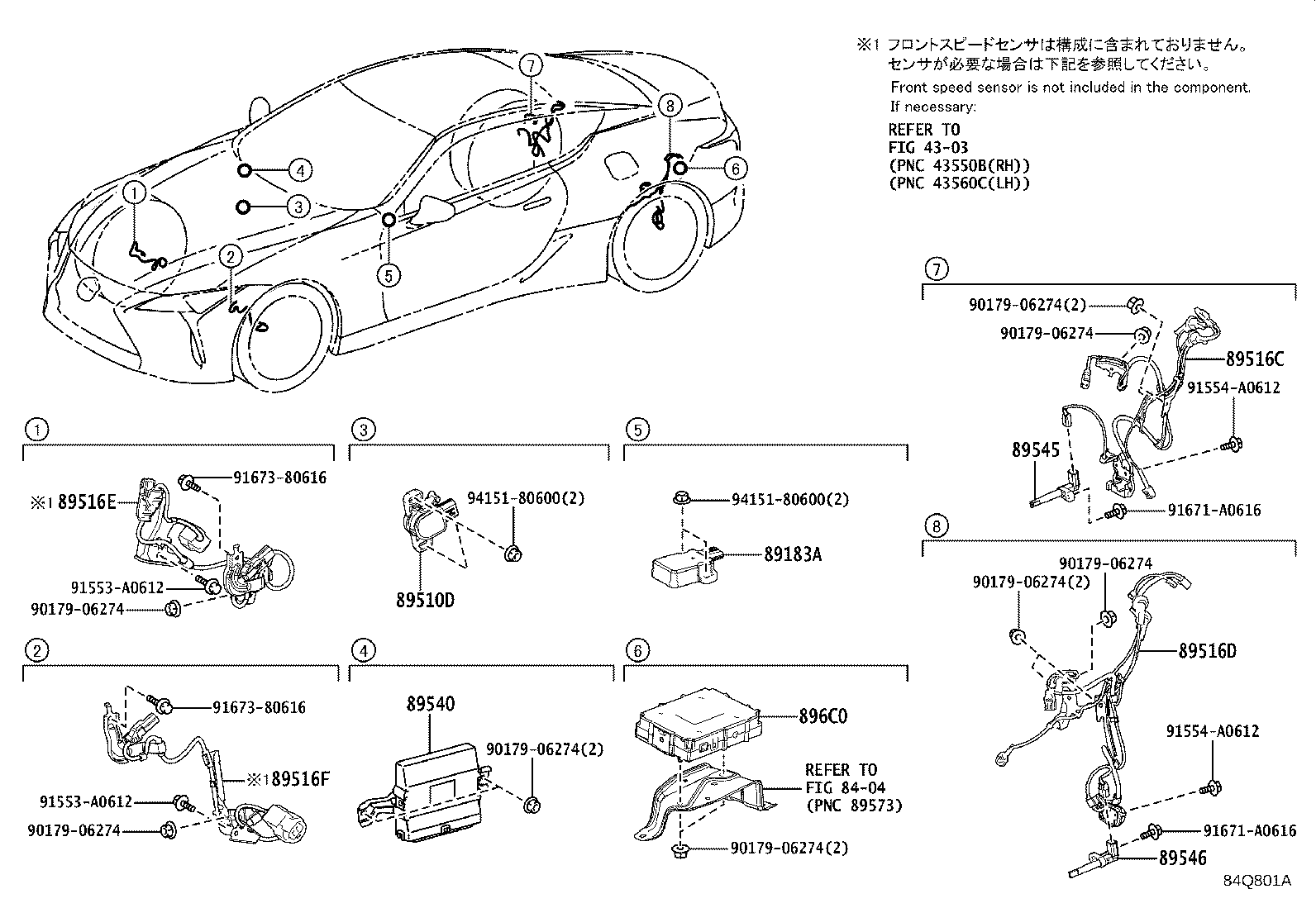

Abs & Vsc
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 89183A | Sensor, Yawrate |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89516E | Wire, Skid Control Sensor, Front RH |
| 89516F | Wire, Skid Control Sensor, Front LH |
| 89540 | Computer Assy, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 896C0 | Supply Assy, Brake Control Power W/Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
