Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 2 illustrations

Illustrations

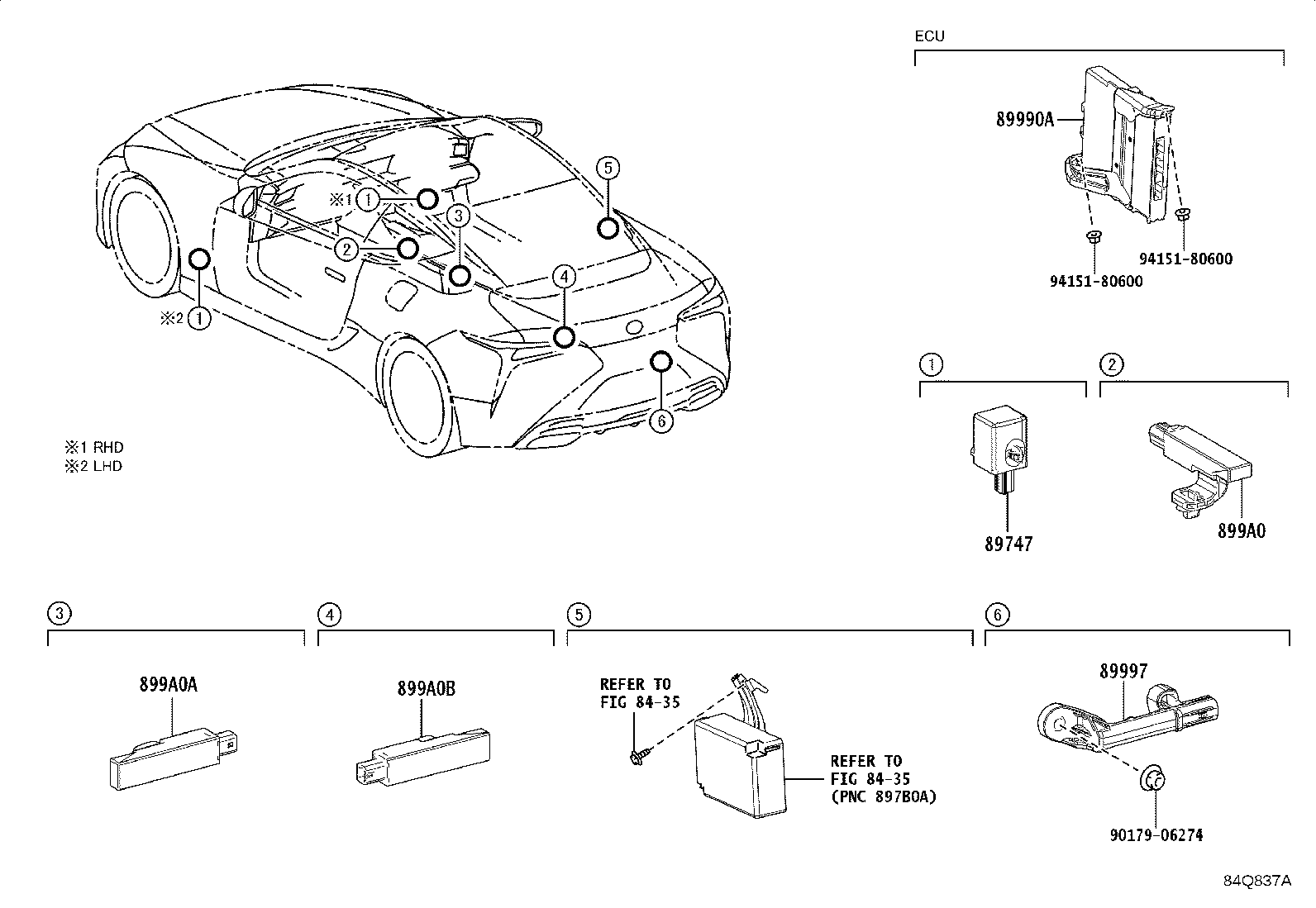

Figure 84Q834 84Q834 2023-05 → — Figure 84Q837A 84Q837A 2023-05 → —

Part groups

PNCDescription
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
