Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

11 part groups · 2 illustrations

Illustrations

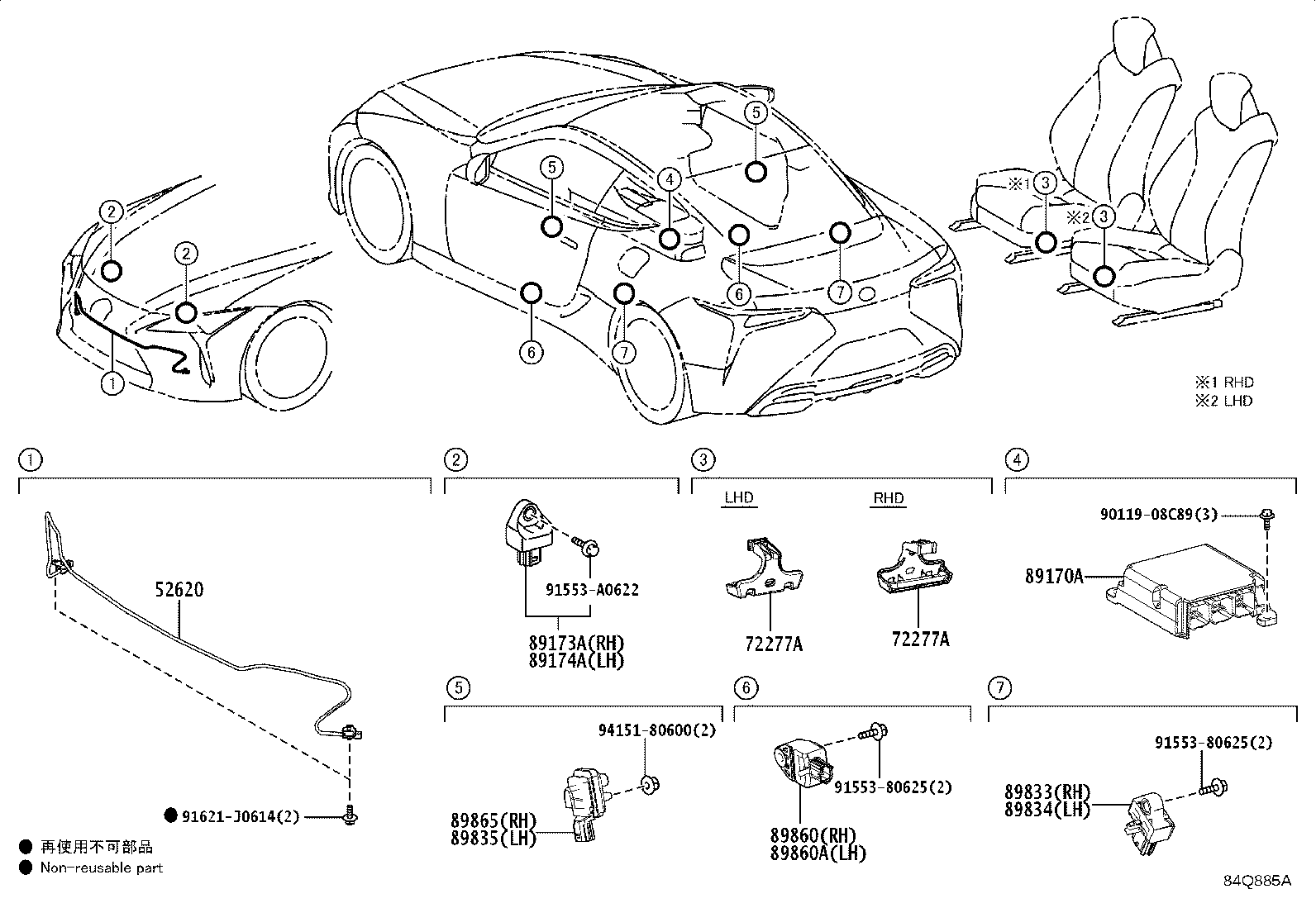

Figure 84Q884A 84Q884A 2023-05 → — Figure 84Q885A 84Q885A 2023-05 → —

Part groups

PNCDescription
52620 Chamber Assy, Pedestrian Detection
72277A Protector, Seat Slide Position Sensor
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89835 Sensor, Door Side Airbag, LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89865 Sensor, Door Side Airbag, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
