Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

21 part groups · 2 illustrations

Illustrations

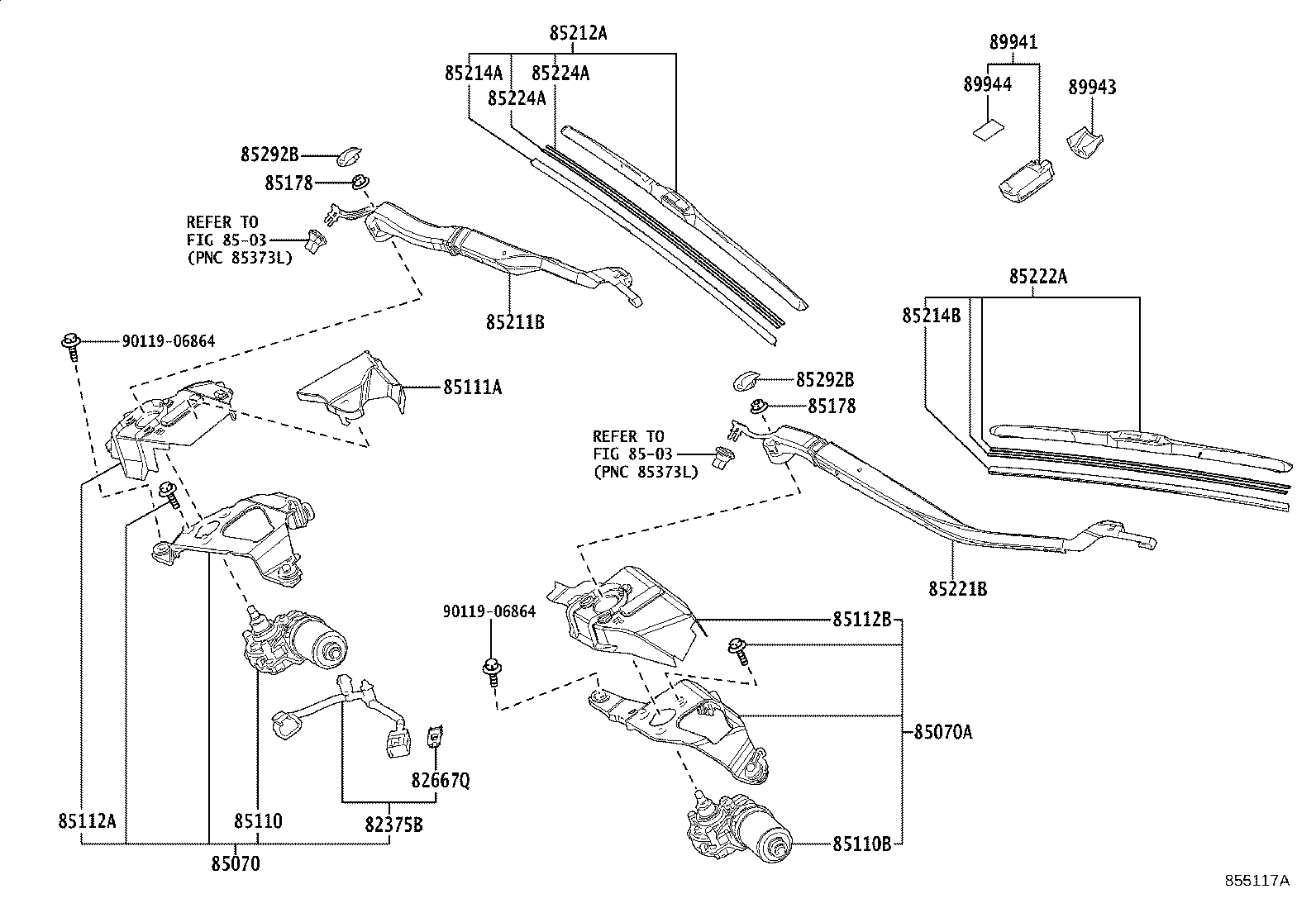

Figure 855116A 855116A 2023-05 → — Figure 855117A 855117A 2023-05 → —

Part groups

PNCDescription
82375B Wire, Wiper Motor
82667Q Holder, Connector
85070 Motor & Bracket Assy, Front Wiper
85070A Motor & Bracket Assy, Front Wiper, NO.2
85110 Motor Assy, Windshield Wiper
85110B Motor Assy, Windshield Wiper, NO.2
85111A Cover, Front Wiper Motor
85112A Cover, Windshield Wiper Shaft, NO.1
85112B Cover, Windshield Wiper Shaft, NO.2
85178 Nut (FOR FRONT WIPER ARM SETTING)
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85292B Cap, Front Wiper Arm Head
89941 Sensor, Rain
89943 Cover, Rain Sensor
89944 Tape, Rain Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
