Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 4 illustrations

Illustrations

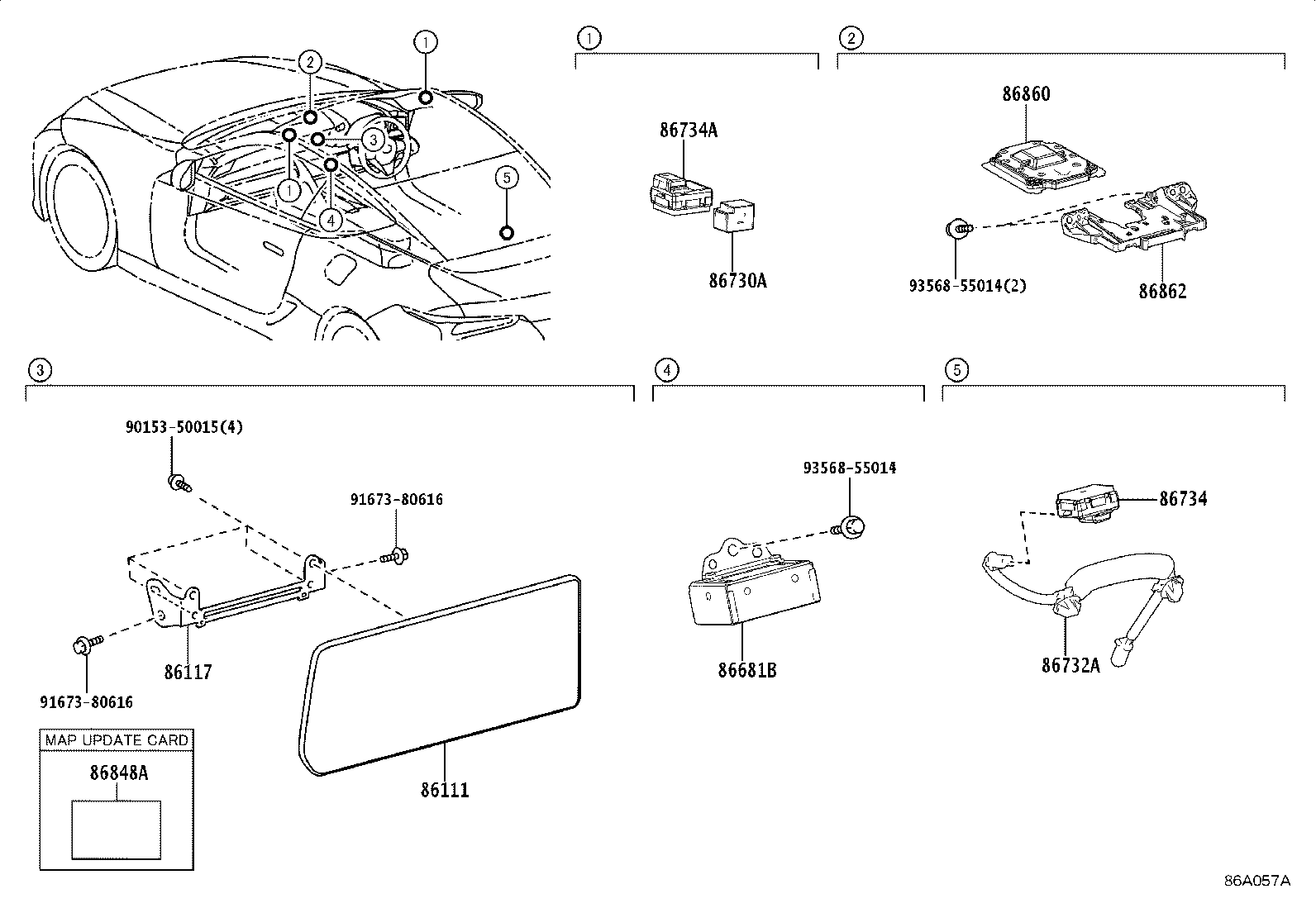

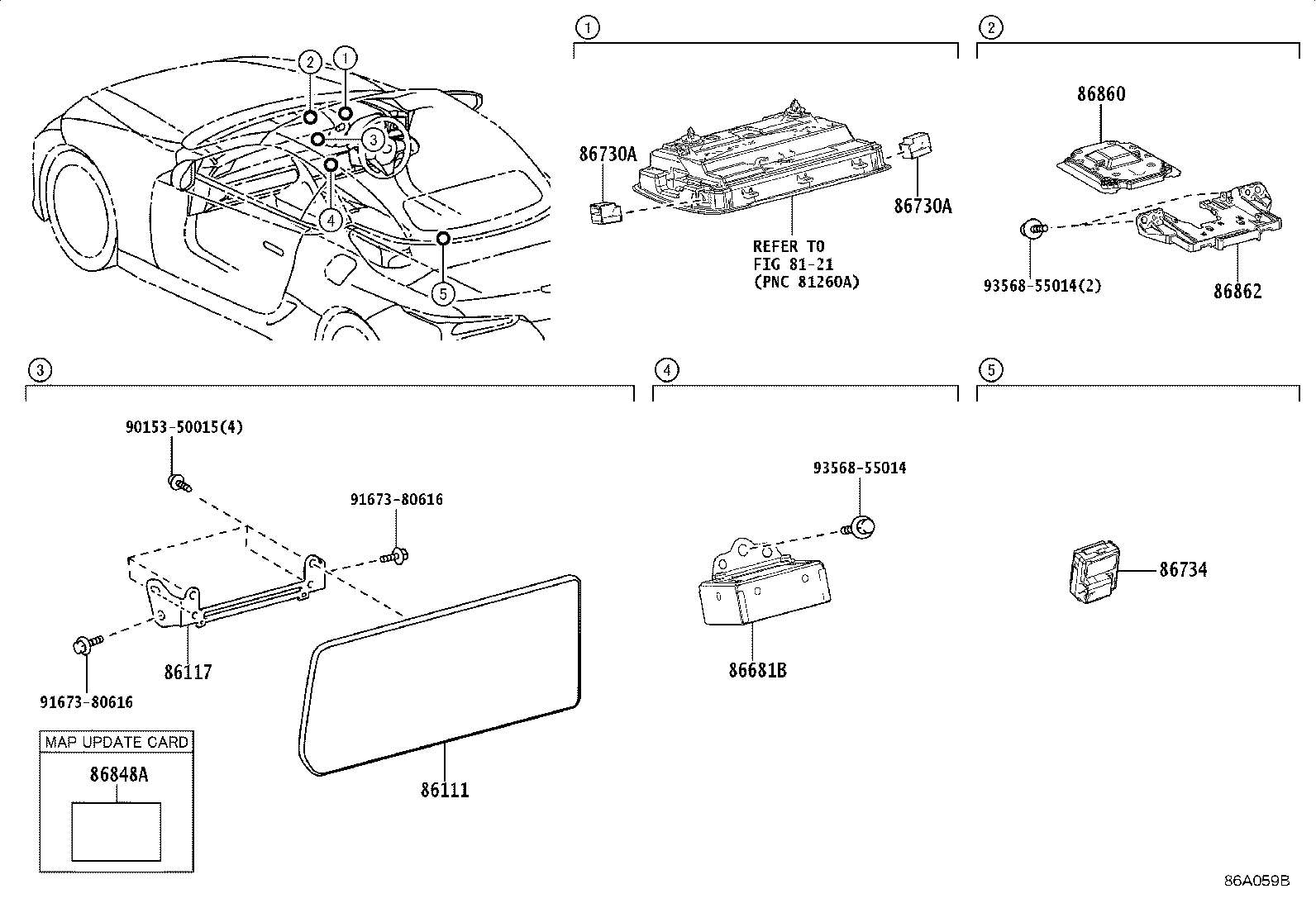

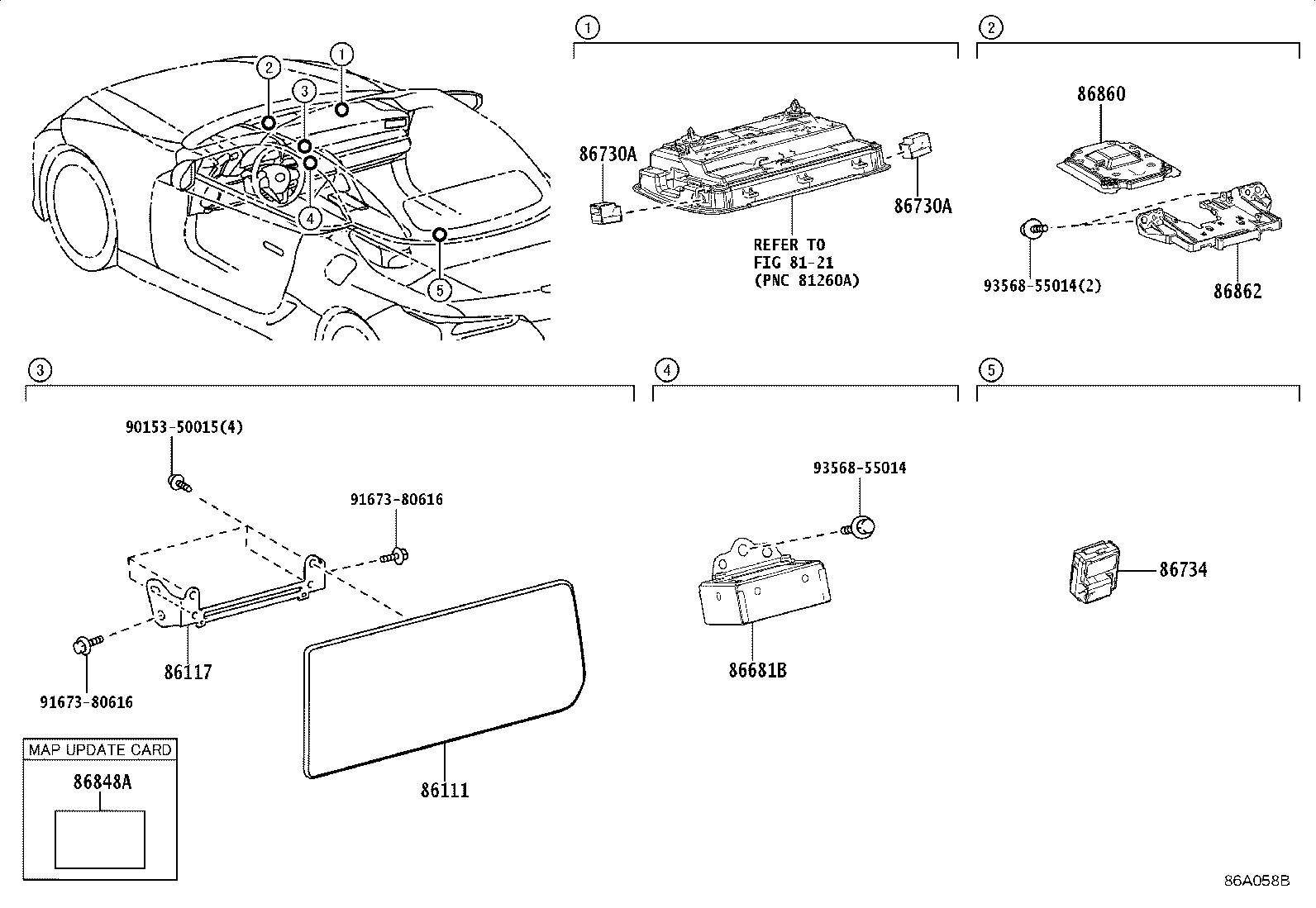

Figure 86A056A 86A056A 2023-05 → — Figure 86A057A 86A057A 2023-05 → — Figure 86A058B 86A058B 2023-05 → — Figure 86A059B 86A059B 2023-05 → —

Part groups

PNCDescription
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86271 Disc, Disc Player
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86732A Wire,Microphone
86734 Microphone, Active Noise Control
86734A Microphone, Active Noise Control, Front
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
