Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

14 part groups · 4 illustrations

Illustrations

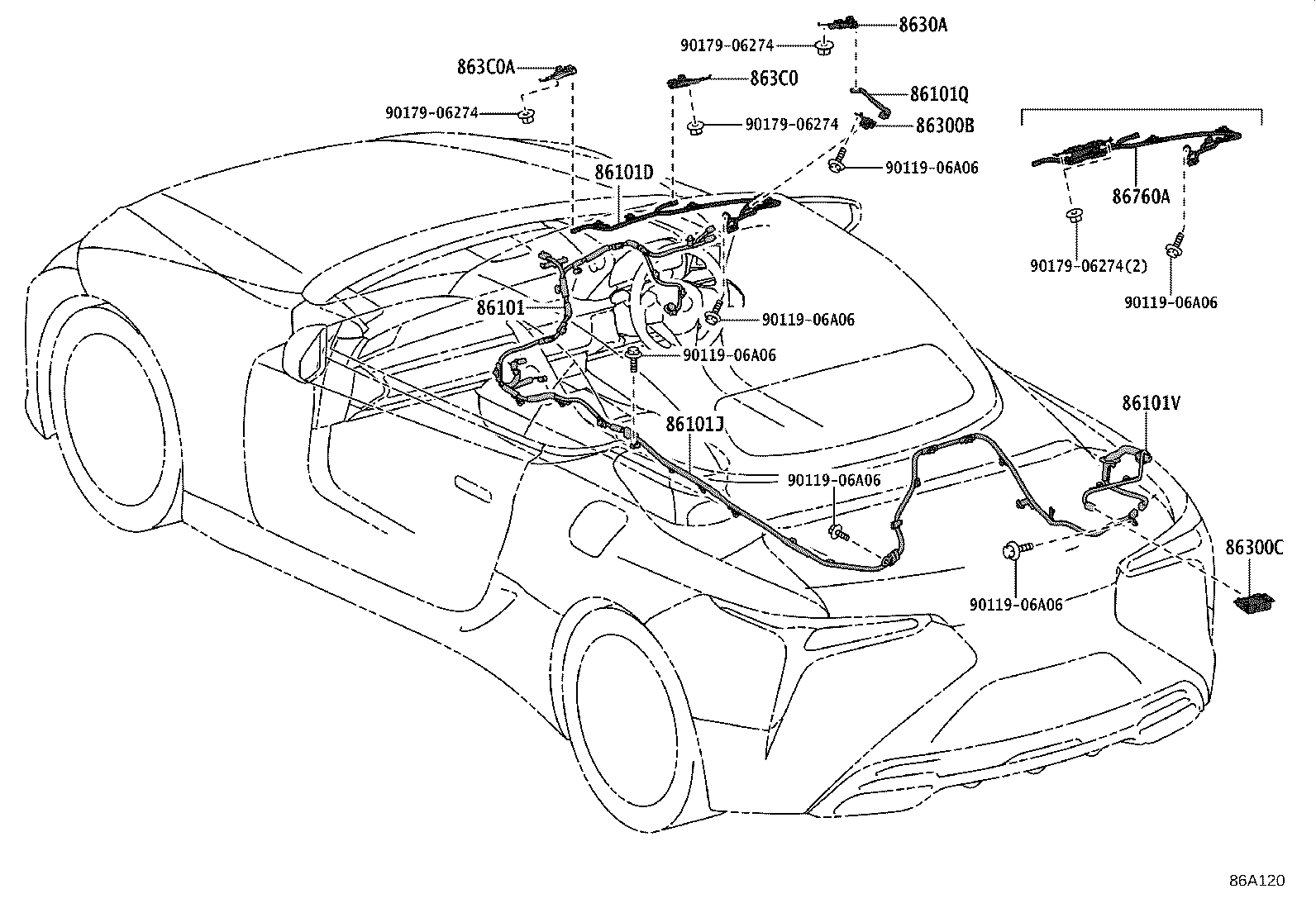

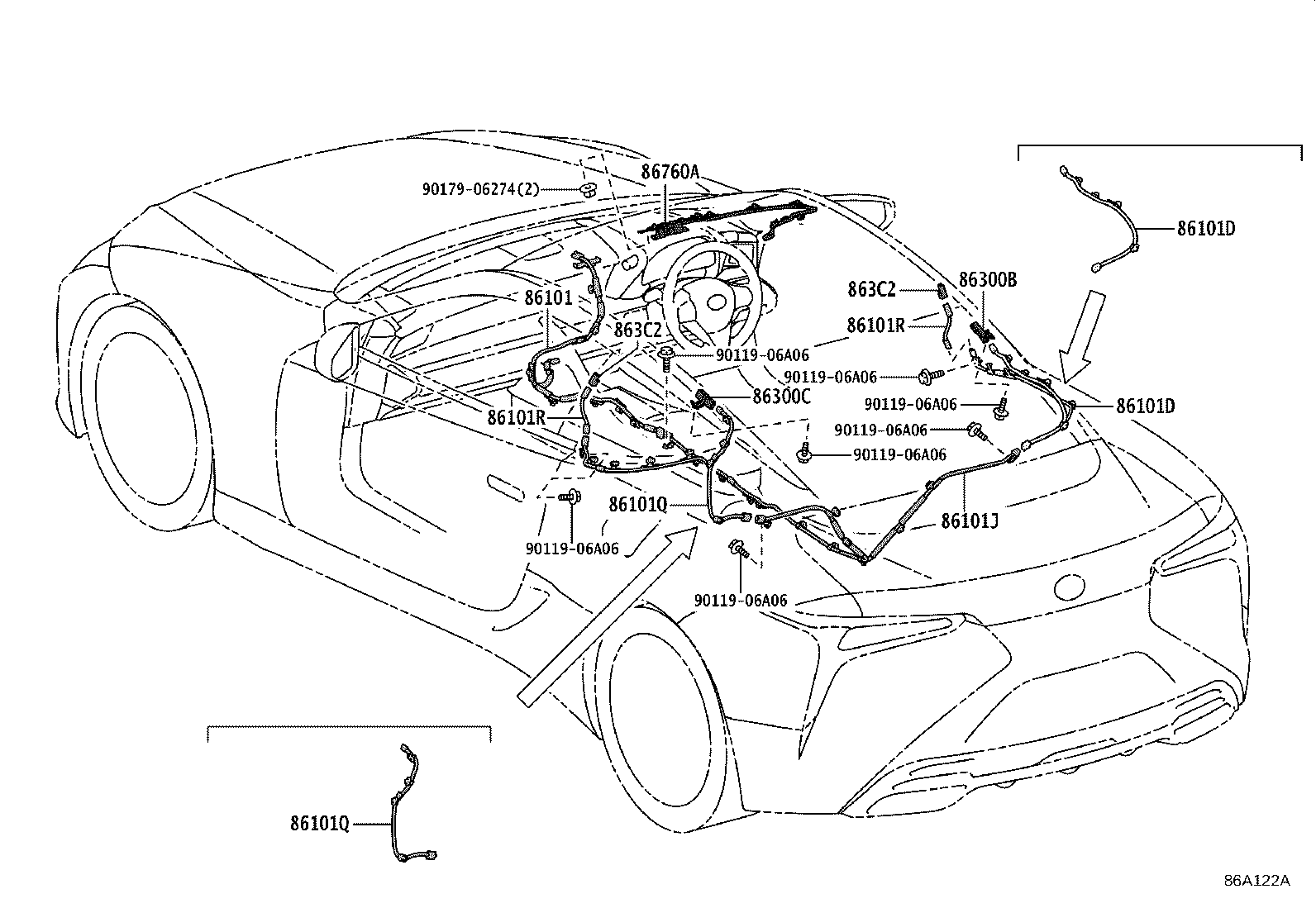

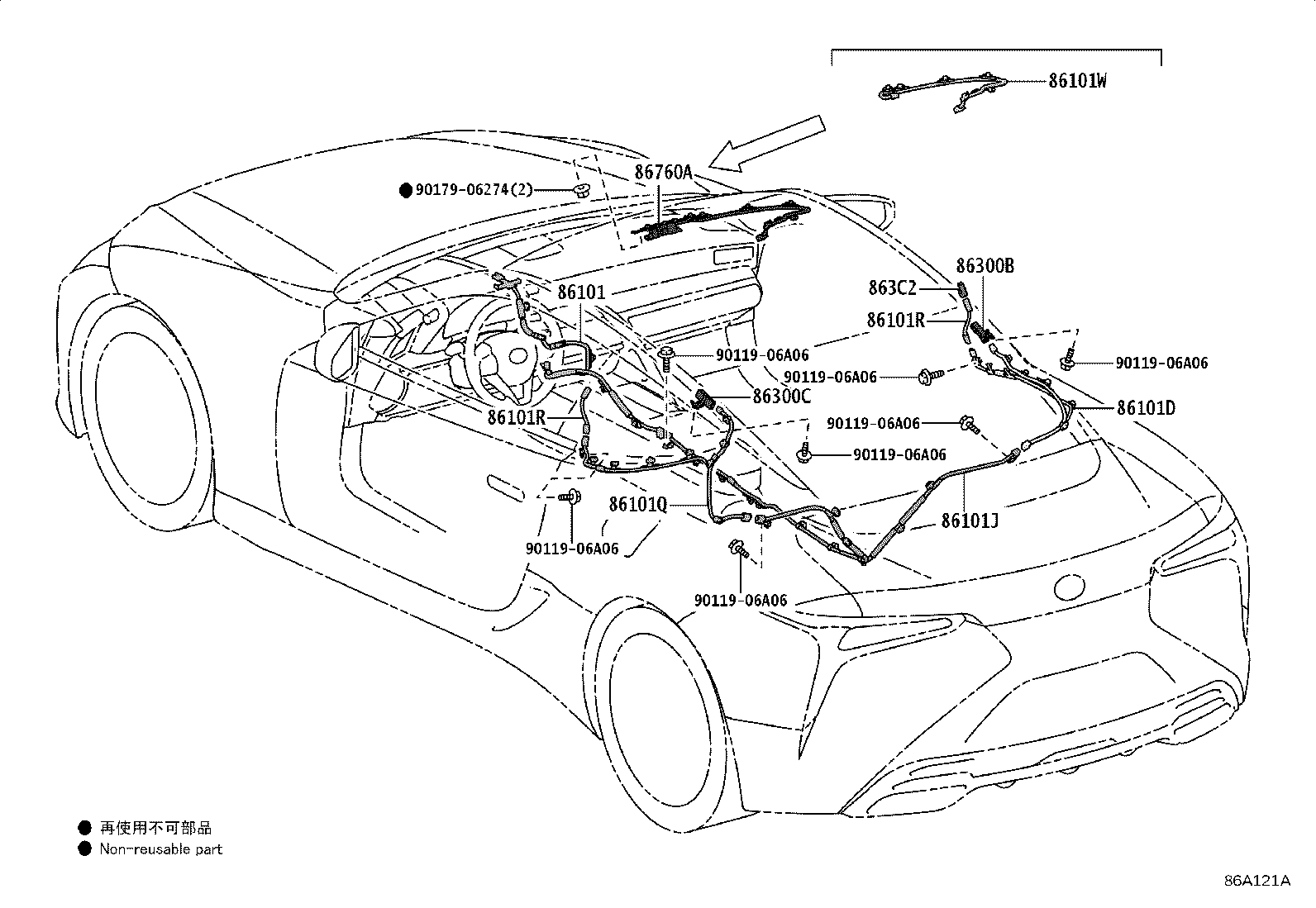

Figure 86A119 86A119 2023-05 → — Figure 86A121A 86A121A 2023-05 → — Figure 86A120 86A120 2023-05 → — Figure 86A122A 86A122A 2023-05 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86101W Cord Sub-assy, Antenna, NO.7
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
8630A Antenna Sub-assy, Radio
863C0 Antenna Assy, Digital Audio Broadcasting
863C0A Antenna Assy, Digital Audio Broadcasting
863C2 Base, Digital Audio Broadcasting Antenna
86760A Antenna Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
