Toyota Lexus LC500/500H
2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe
Supported model
Data version 2024-06

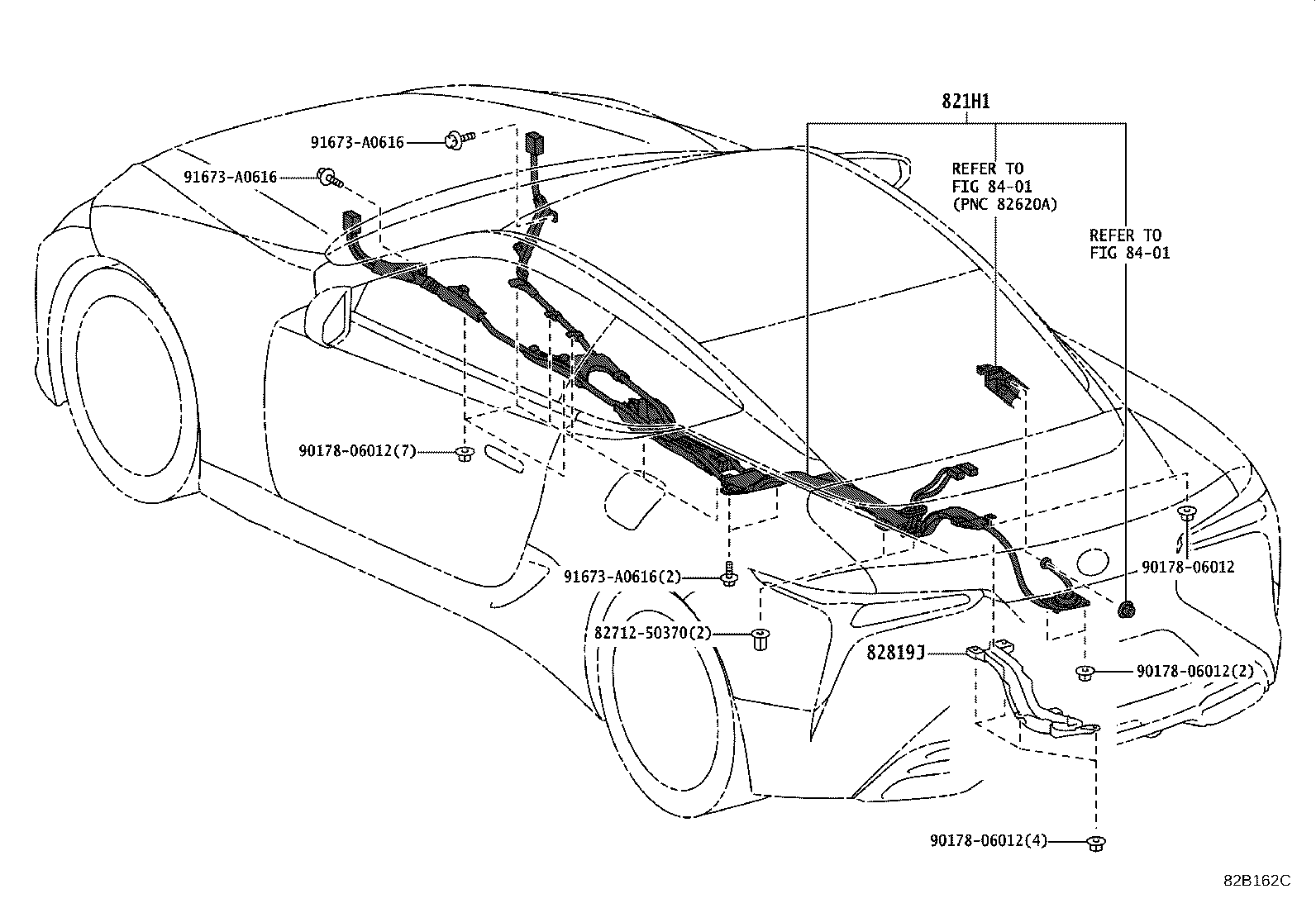

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-11010 |
Wire, Floor Under
2017-05 → —
|
GWZ100 LHD | — | |
| 821H1-11020 |
Wire, Floor Under
2017-05 → —
|
GWZ100 RHD | — | |
| 82819J — Protector, Wiring Harness, NO.25 | ||||
| 82817-11180 |
Protector, Wiring Harness, NO.25
2017-05 → —
|
GWZ100,URZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
