Toyota Lexus LC500/500H
2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe
Supported model
Data version 2024-06

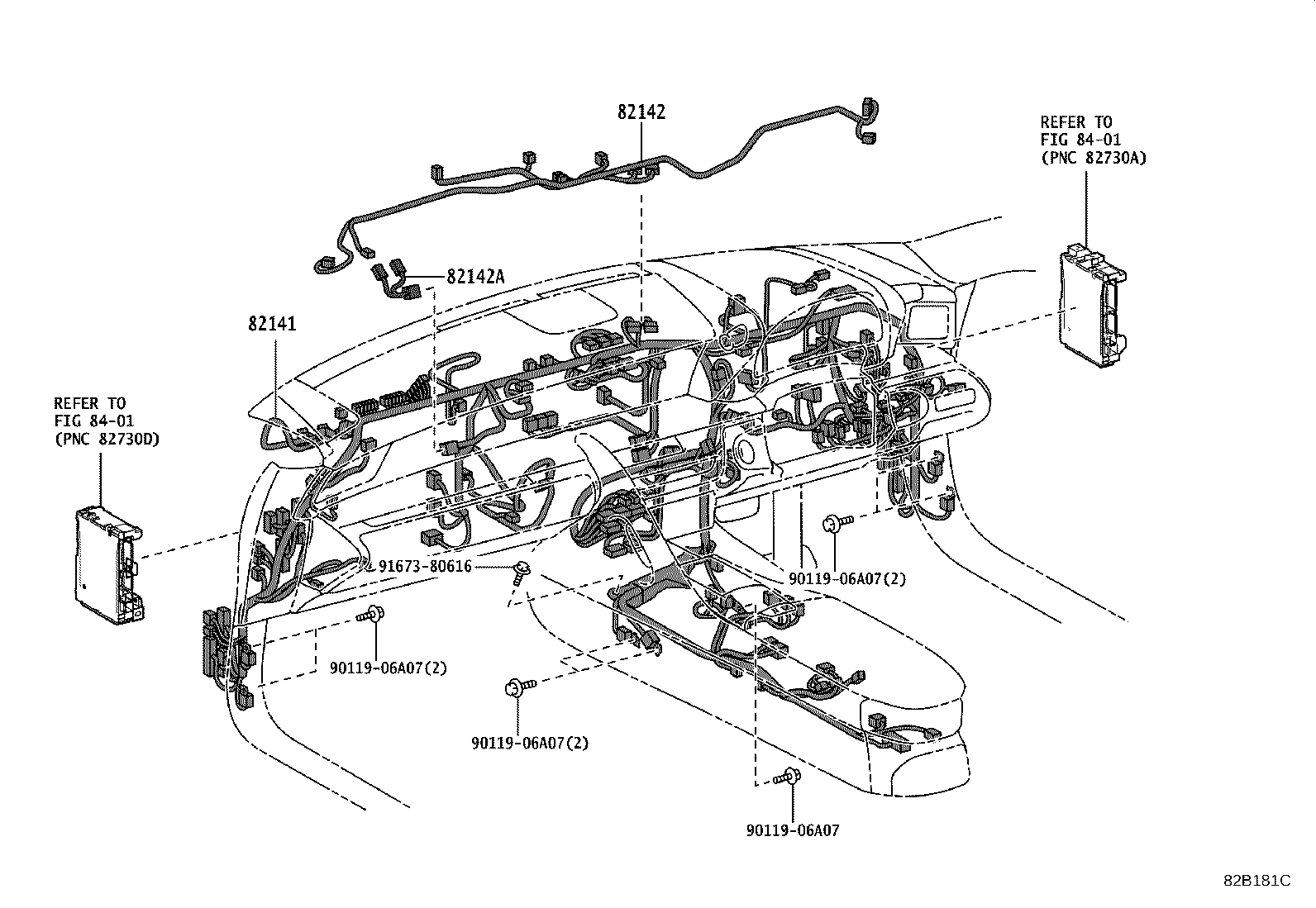

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-11350 |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 RHD | — | |
| 82141-11351 |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 RHD | — | |
| 82141-11352 |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 RHD | — | |
| 82141-11353 |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 RHD | — | |
| 82141-11354 |
Wire, Instrument Panel
2021-11 → —
|
URZ100 RHD | — | |
| 82141-11380 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 RHD | — | |
| 82141-11381 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 RHD | — | |
| 82141-11381 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 RHD | — | |
| 82141-11382 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 RHD | — | |
| 82141-11383 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 RHD | — | |
| 82141-11384 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 RHD | — | |
| 82141-11470 |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 RHD | — | |
| 82141-11471 |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 RHD | — | |
| 82141-11472 |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 RHD | — | |
| 82141-11473 |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 RHD | — | |
| 82141-11474 |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 RHD | — | |
| 82141-11500 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 RHD | — | |
| 82141-11500 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 RHD | — | |
| 82141-11501 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 RHD | — | |
| 82141-11501 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 RHD | — | |
| 82141-11501 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 RHD | — | |
| 82141-11501 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 RHD | — | |
| 82141-11502 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 RHD | — | |
| 82141-11502 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 RHD | — | |
| 82141-11503 note |
Wire, Instrument Panel
2020-04 → 2020-12
ended
|
GWZ100 RHD | — | |
| 82141-11503 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 RHD | — | |
| 82141-11503 note |
Wire, Instrument Panel
2020-12 → 2021-11
ended
|
GWZ100 RHD | — | |
| 82141-11504 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 RHD | — | |
| 82141-11504 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 RHD | — | |
| 82141-11540 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11541 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11541 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11541 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11541 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11590 |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11591 |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11592 |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 LHD | — | |
| 82141-11593 |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 LHD | — | |
| 82141-11594 |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11600 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11601 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11601 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11602 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 LHD | — | |
| 82141-11603 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 LHD | — | |
| 82141-11604 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11610 |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11611 |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11612 |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 LHD | — | |
| 82141-11613 |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 LHD | — | |
| 82141-11614 |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 LHD | — | |
| 82141-11620 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11620 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11621 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11621 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11621 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11621 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11622 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 LHD | — | |
| 82141-11622 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 LHD | — | |
| 82141-11623 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 LHD | — | |
| 82141-11623 note |
Wire, Instrument Panel
2020-04 → 2020-12
ended
|
GWZ100 LHD | — | |
| 82141-11623 note |
Wire, Instrument Panel
2020-12 → 2021-11
ended
|
GWZ100 LHD | — | |
| 82141-11624 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 LHD | — | |
| 82141-11624 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 LHD | — | |
| 82141-11662 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 RHD | — | |
| 82141-11663 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 RHD | — | |
| 82141-11664 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 RHD | — | |
| 82141-11672 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
GWZ100 RHD | — | |
| 82141-11673 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
GWZ100 RHD | — | |
| 82141-11674 note |
Wire, Instrument Panel
2021-11 → —
|
GWZ100 RHD | — | |
| 82141-11680 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11680 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11681 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11690 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11690 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11691 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11691 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11710 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11710 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11710 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11710 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11711 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11711 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11720 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11720 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11720 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11720 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
GWZ100 LHD | — | |
| 82141-11721 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11721 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11721 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11721 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
GWZ100 LHD | — | |
| 82141-11740 note |
Wire, Instrument Panel
2017-05 → 2018-09
ended
|
URZ100 LHD | — | |
| 82141-11741 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11741 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11741 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11741 note |
Wire, Instrument Panel
2018-09 → 2019-06
ended
|
URZ100 LHD | — | |
| 82141-11742 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 LHD | — | |
| 82141-11742 note |
Wire, Instrument Panel
2019-06 → 2020-04
ended
|
URZ100 LHD | — | |
| 82141-11743 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 LHD | — | |
| 82141-11743 note |
Wire, Instrument Panel
2020-04 → 2021-11
ended
|
URZ100 LHD | — | |
| 82141-11744 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11744 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11744 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11770 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11780 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11780 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11780 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82141-11790 note |
Wire, Instrument Panel
2021-11 → —
|
URZ100 LHD | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-11010 |
Wire, Instrument Panel, NO.2
2017-05 → —
|
GWZ100,URZ100 LHD | — | |
| 82142-11020 |
Wire, Instrument Panel, NO.2
2017-05 → —
|
GWZ100,URZ100 RHD | — | |
| 82142A — Wire, Instrument Panel, NO.2 | ||||
| 82140-11010 |
Wire, Instrument Panel, NO.2
2017-05 → —
|
GWZ100,URZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
