Toyota Lexus LC500/500H
2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe
Supported model
Data version 2024-06
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

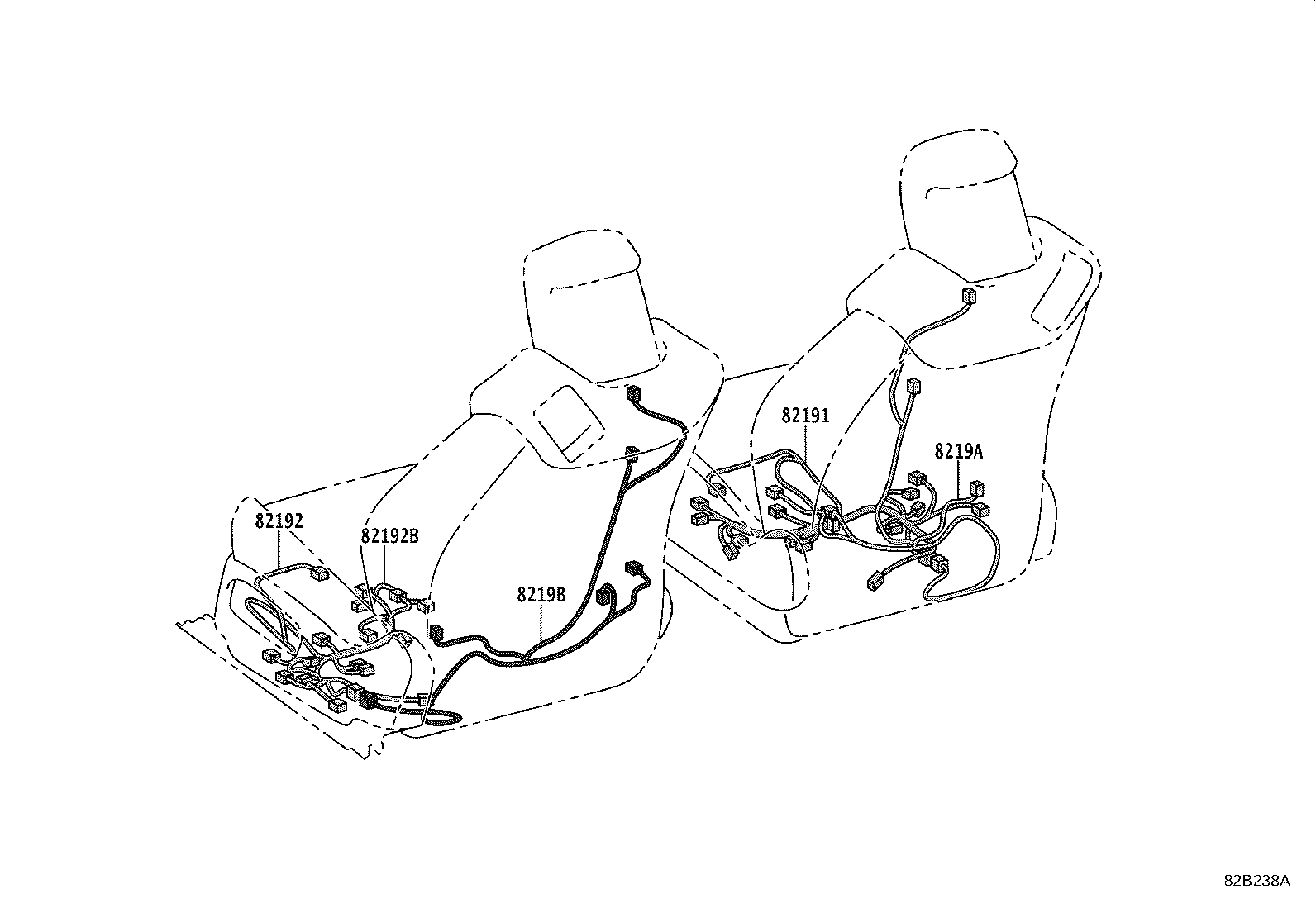

| 82191 — Wire, Front Seat, RH | ||||
| 82191-11010 |
Wire, Front Seat, RH
2017-05 → —
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2021-01 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82191-11040 note |
Wire, Front Seat, RH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82191-11060 |
Wire, Front Seat, RH
2017-05 → —
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2021-01 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82191-11070 note |
Wire, Front Seat, RH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82192 — Wire, Front Seat, LH | ||||
| 82192-11010 |
Wire, Front Seat, LH
2017-05 → —
|
GWZ100,URZ100 LHD | — | |
| 82192-11030 |
Wire, Front Seat, LH
2017-05 → —
|
GWZ100,URZ100 RHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2021-01 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 LHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82192-11040 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 LHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2017-05 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2021-11 → —
|
GWZ100,URZ100 RHD | — | |
| 82192-11060 note |
Wire, Front Seat, LH
2021-01 → 2021-11
ended
|
GWZ100,URZ100 RHD | — | |
| 82192B — Wire, Front Seat, LH NO.2 | ||||
| 82192-11080 |
Wire, Front Seat, LH NO.2
2017-05 → —
|
GWZ100,URZ100 LHD | — | |
| 8219A — Wire, Front Seat, RH NO.2 | ||||
| 8219A-11010 |
Wire, Front Seat, RH NO.2
2017-05 → —
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2017-05 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2021-01 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219A-11020 note |
Wire, Front Seat, RH NO.2
2017-05 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219B — Wire, Front Seat, LH NO.2 | ||||
| 8219B-11010 |
Wire, Front Seat, LH NO.2
2017-05 → —
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2017-05 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2017-05 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2021-01 → 2021-11
ended
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
| 8219B-11020 note |
Wire, Front Seat, LH NO.2
2021-11 → —
|
GWZ100,URZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
