Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 2 illustrations

Illustrations

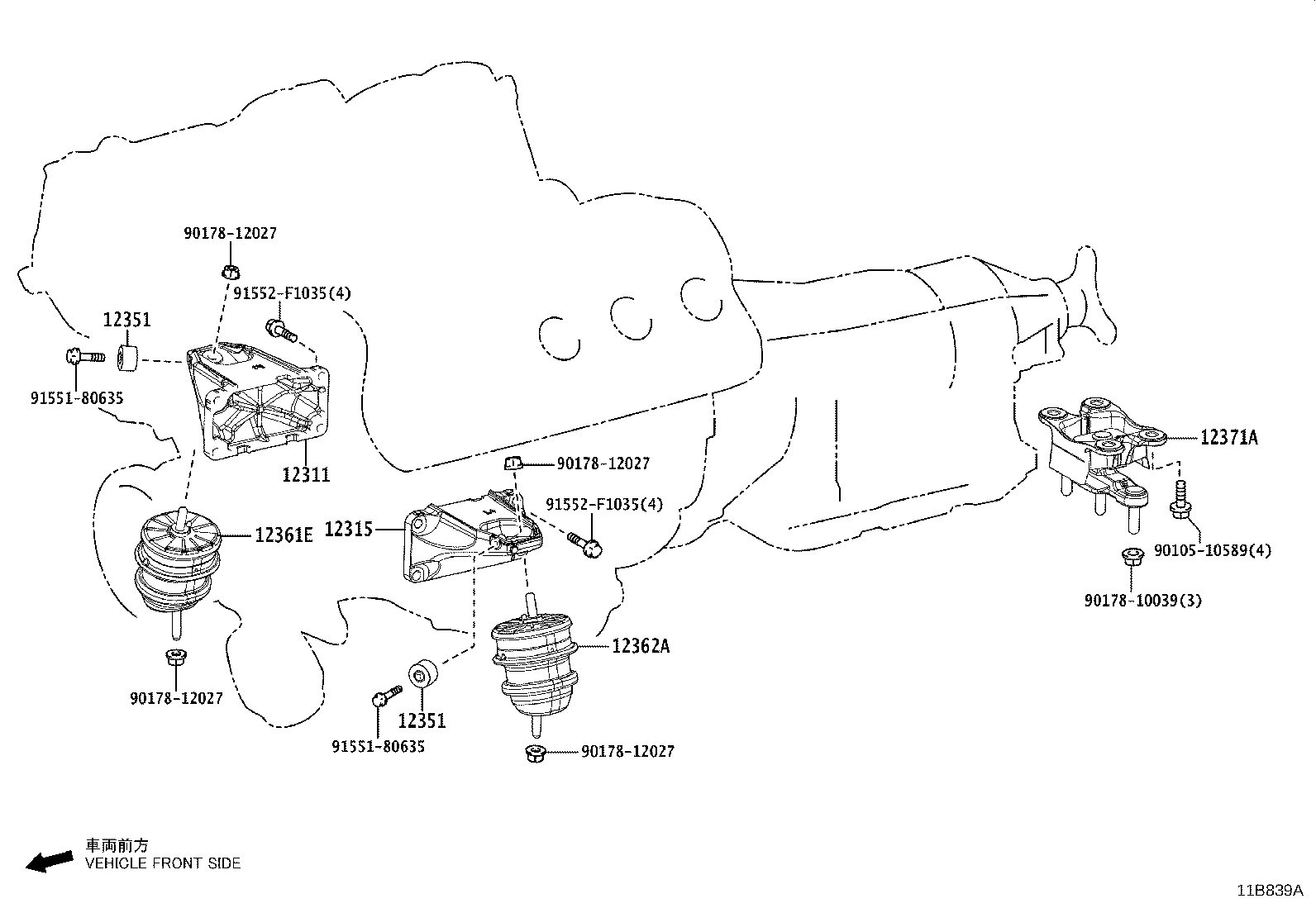

Figure 11B850B 11B850B 2017-05 → — Figure 11B839A 11B839A 2017-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12351 Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12361E Insulator, Engine Mounting, Front RH
12362A Insulator, Engine Mounting, Front LH
12371A Insulator, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
