Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

15 part groups · 2 illustrations

Illustrations

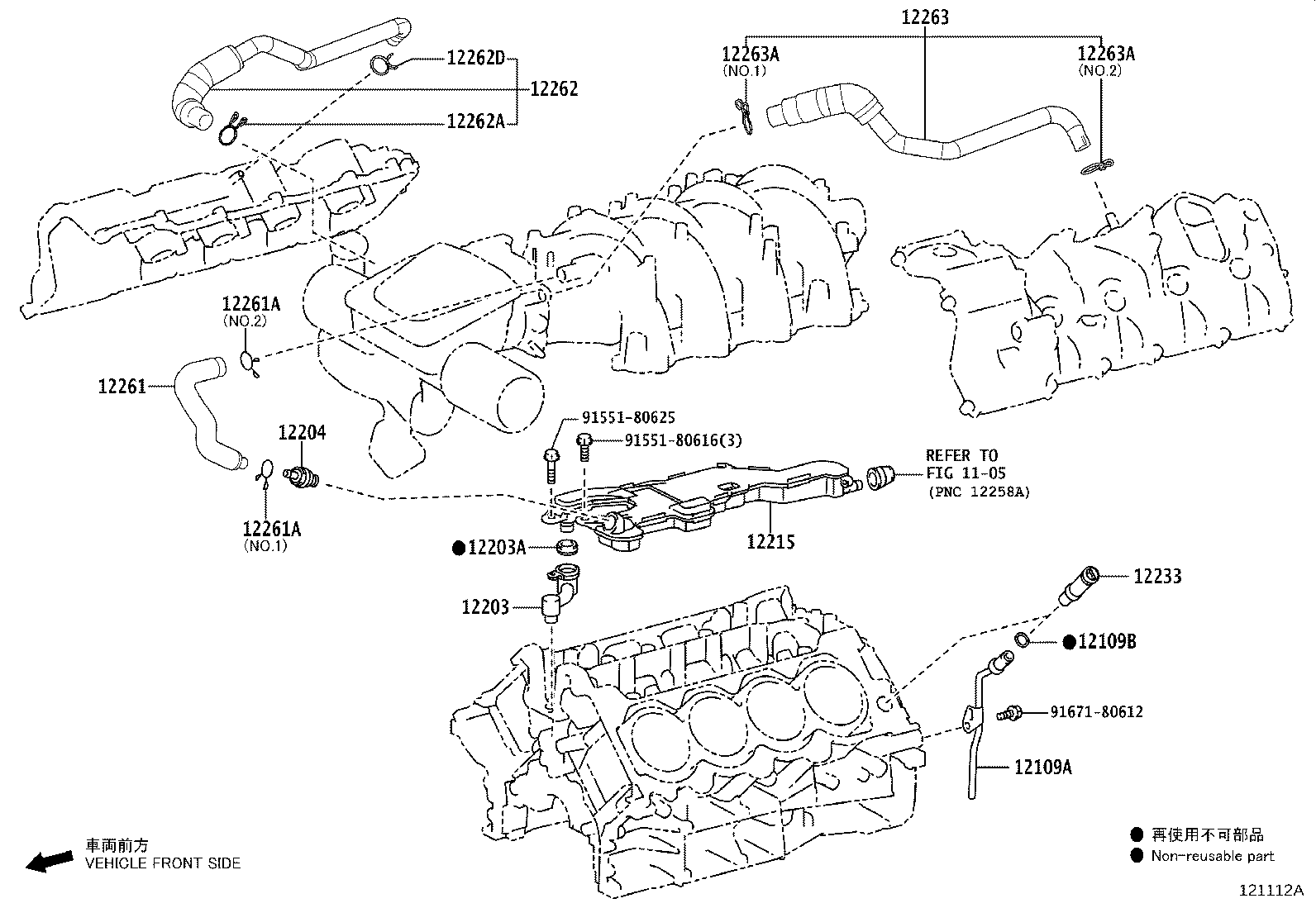

Figure 121114A 121114A 2017-05 → — Figure 121112A 121112A 2017-05 → —

Part groups

PNCDescription
12109A Pipe Sub-assy, Oil Drain
12109B Ring, O(FOR OIL DRAIN PIPE)
12203 Pipe Sub-assy, Ventilation
12203A Gasket(FOR VENTILATION PIPE)
12204 Valve Sub-assy, Ventilation
12215 Separator, Case
12233 Connector, Ventilation NO.1
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
