Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

9 part groups · 2 illustrations

Illustrations

Figure 153157A

153157A 2017-05 → —

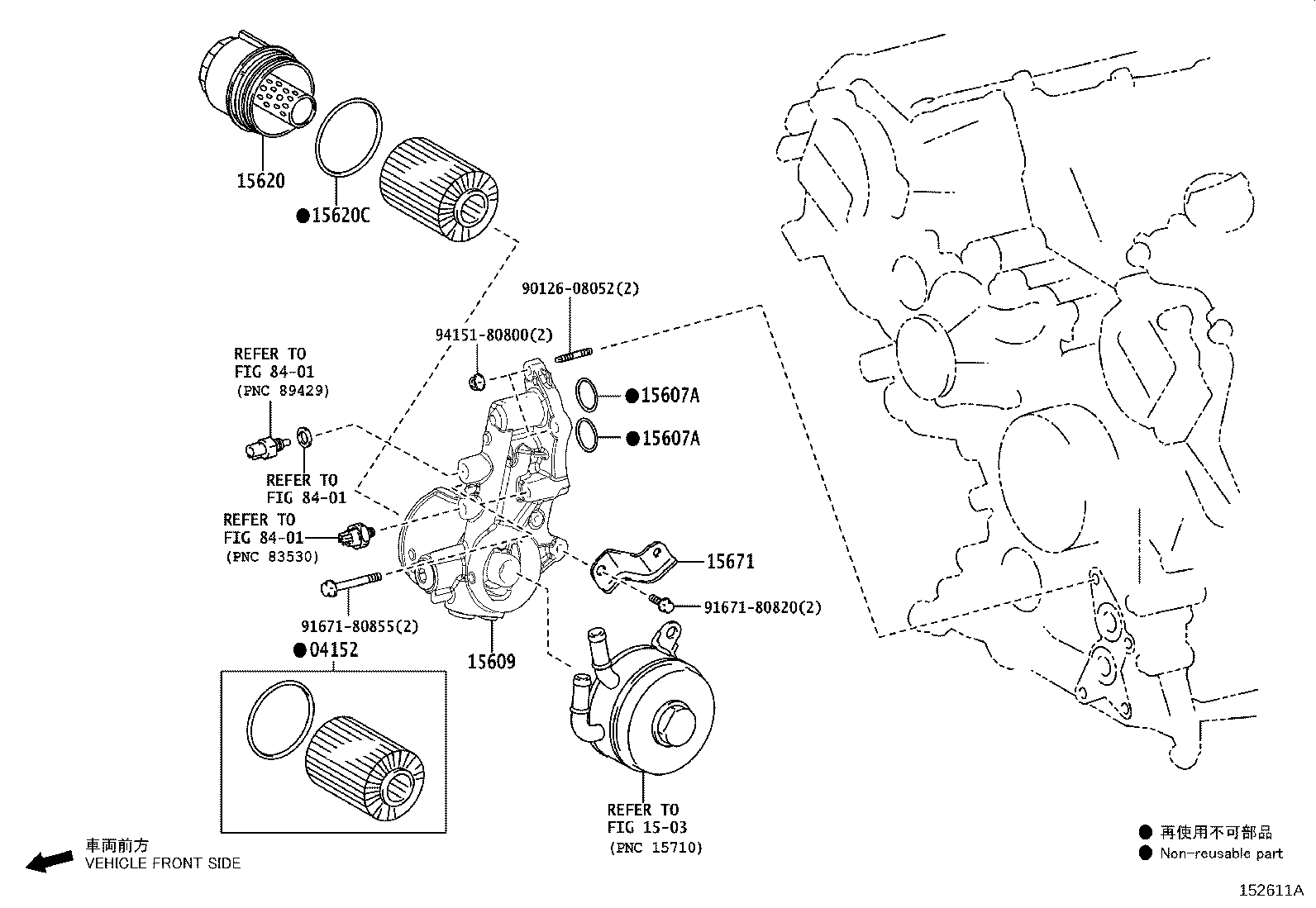

Figure 152611A

152611A 2017-05 → —

Part groups

PNC	Description
04152	Element Kit, Oil Filter
15607A	Ring, O(FOR OIL FILTER BODY)
15609	Bracket Sub-assy, Oil Filter
15620	Cap Assy, Oil Filter
15620C	Gasket(FOR OIL FILTER CAP)
15650	Cap Assy, Oil Filter W/Elememt
15671	Bracket, Oil Filter
15679	Clip, Oil Filter Bracket
15692	Gasket, Oil Filter Bracket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
