Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 2 illustrations

Illustrations

Figure 166637D

166637D 2017-05 → —

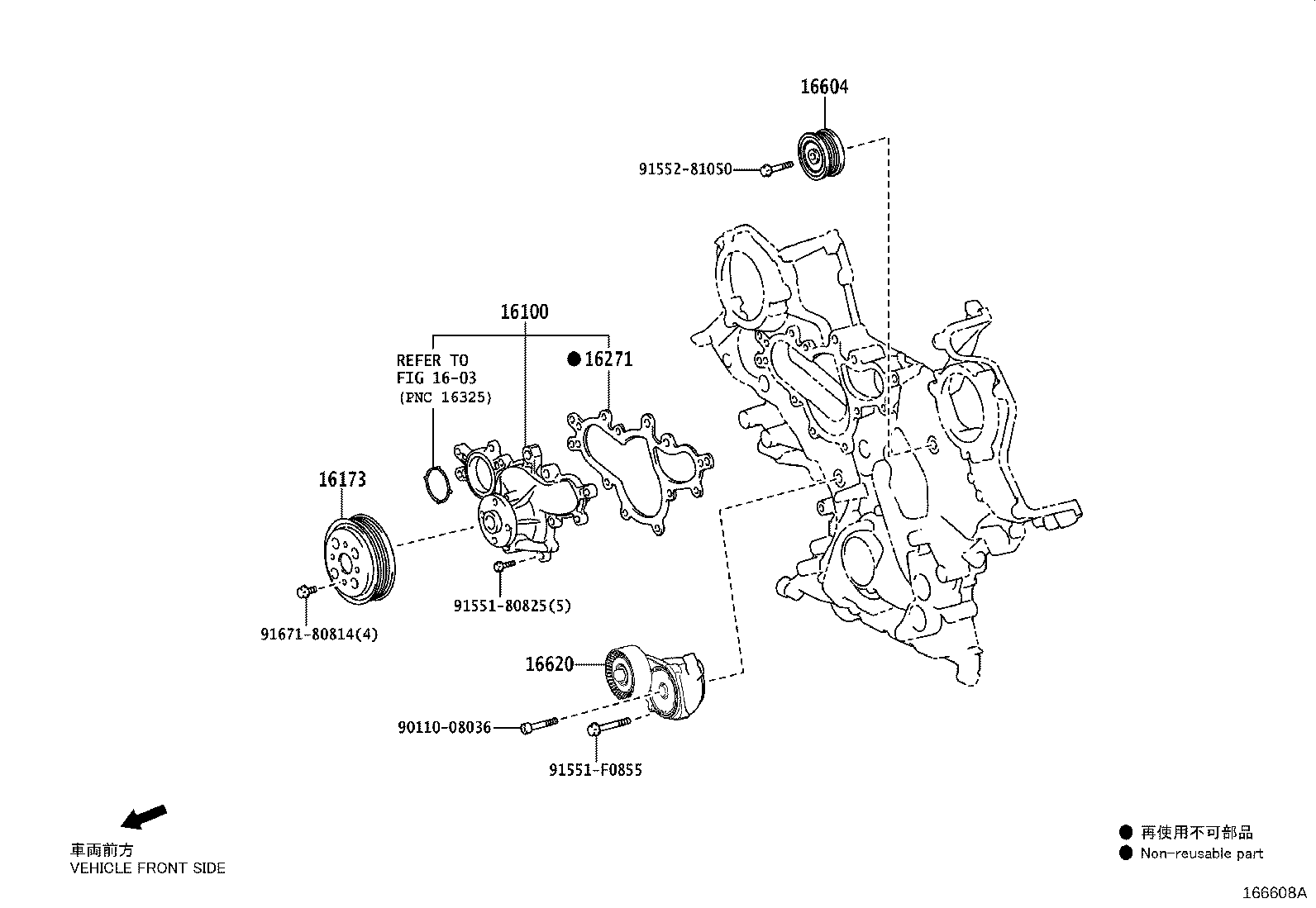

Figure 166608A

166608A 2017-05 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
