Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06

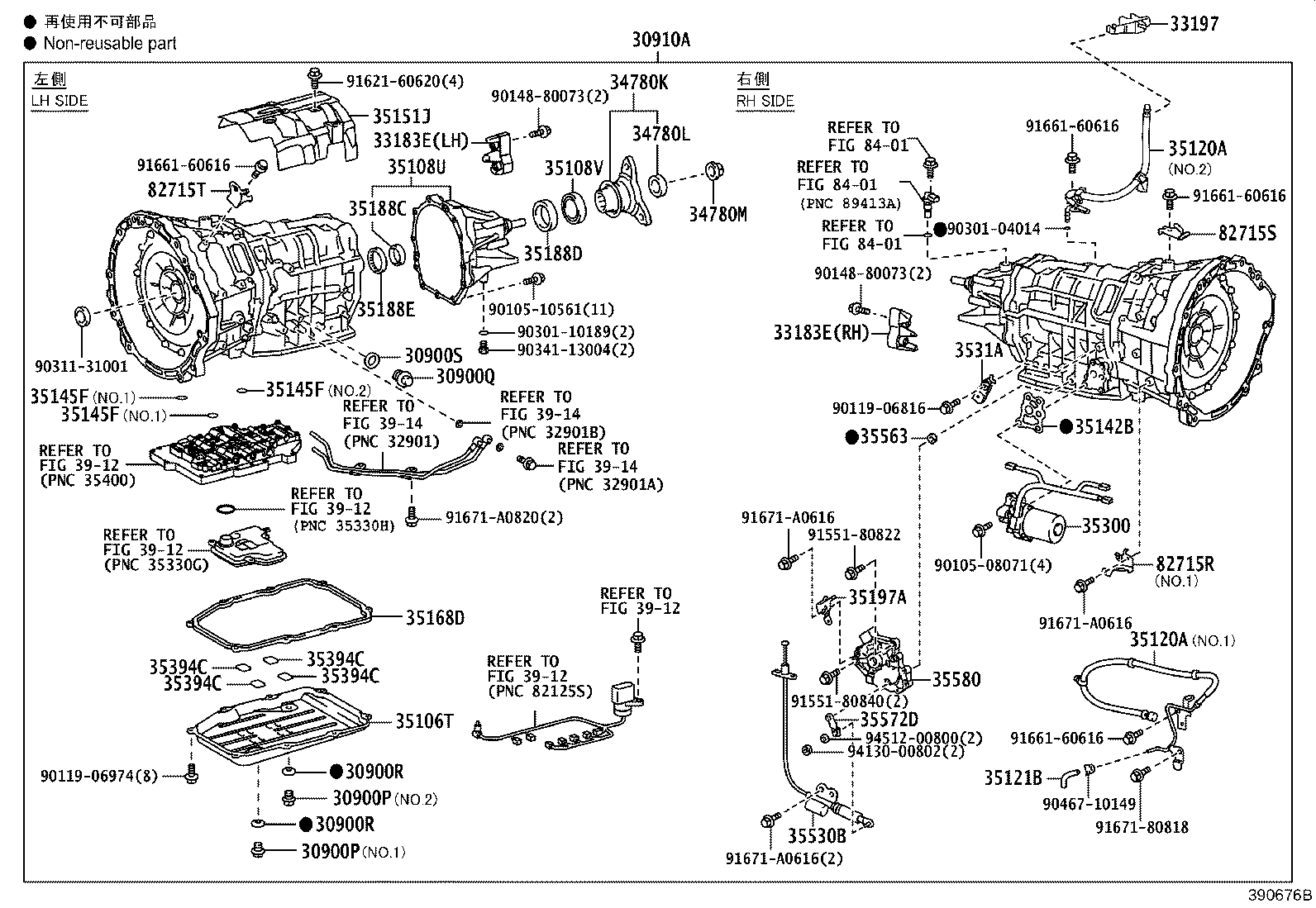

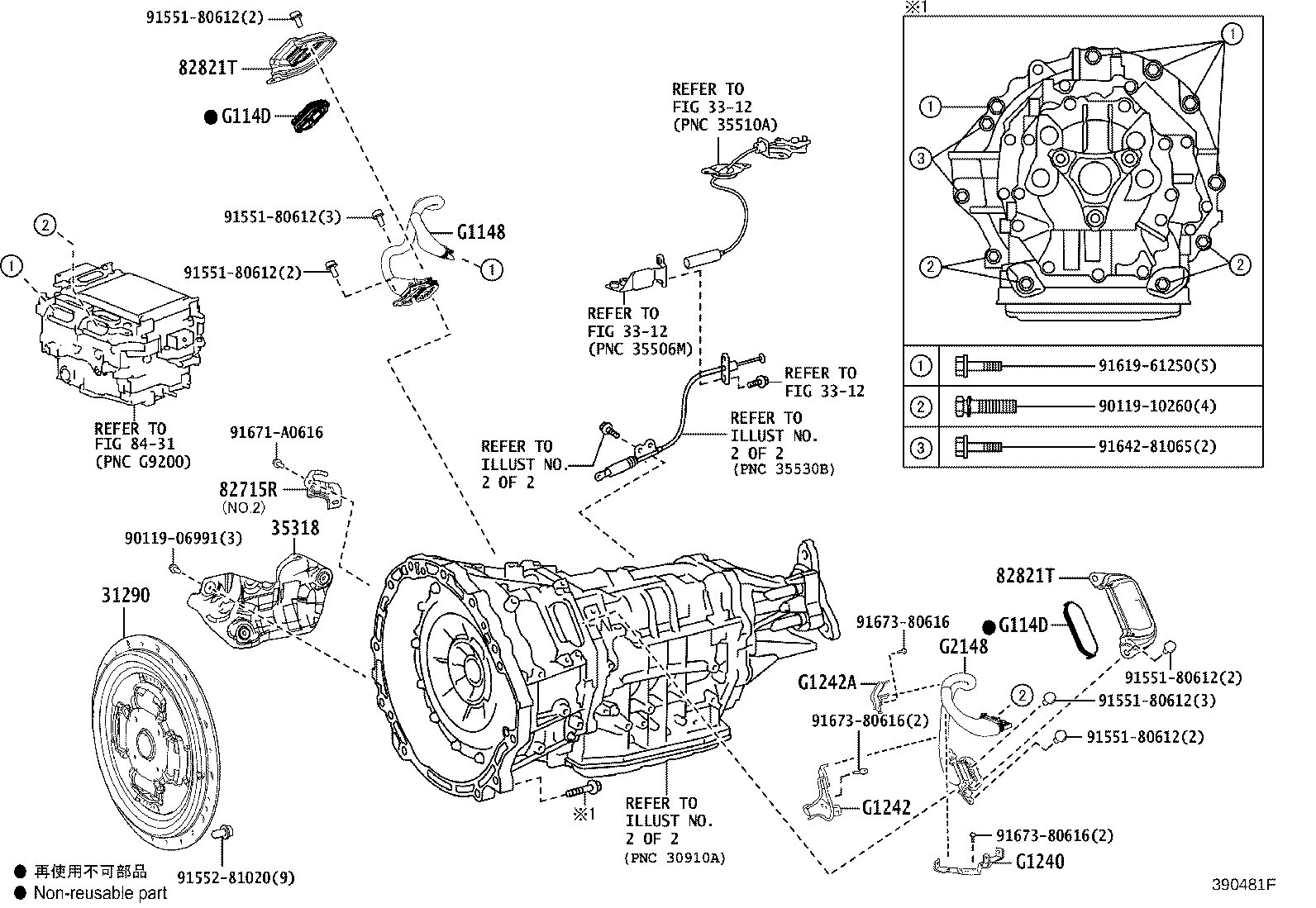

Transaxle Assy(HEV OR BEV OR FCEV)

43 part groups · 3 illustrations

PNC	Description
30900P	Plug, Drain(HEV)
30900Q	Plug, Filler(HEV)
30900R	Gasket, Drain Plug(HEV)
30900S	Gasket, Filler Plug(HEV)
30910A	Transmission Assy, Hybrid Vehicle
31290	Cover Assy, Transmission Input Damper
33183E	Damper, Dynamic
33197	Clamp, Transmission Breather
34780K	Yoke Assy, Flange
34780L	Seal, Type V Oil (FOR FRANGE YOKE)
34780M	Nut (FOR FLANGE YOKE)
35106T	Pan Sub-assy, Transmission Oil
35108U	Housing Sub-assy, Extension
35108V	Seal, Type T Oil (FOR EXTENSION HOUSING)
35120A	Breather Assy, Transmission
35121B	Hose, Transmission Breather
35142B	Gasket, Transmission Case(HEV)
35145F	Gasket, Transaxle Case
35151J	Cover, Automatic Transmission Case
35168D	Gasket, Transmission Oil Pan
35188C	Sleeve, Extension Housing
35188D	Bearing, Radial Ball
35188E	Bearing, Needle Roller
35197A	Bracket, Heat Insulator, NO.2
35300	Pump Assy, Oil W/Motor
35318	Insulator, Transmission Oil Pump
3531A	Bracket, Transmission Oil Pump Insulator
35394C	Magnet, Oil Cleaner
35530B	Cable Assy, Parking Lock Release, NO.2
35563	Seal, Shift Control Actuator
35572D	Lever, Transmission Control Shaft
35580	Actuator Assy, Shift Control
82715R	Bracket, Wiring Harness Clamp, NO.1
82715S	Bracket, Wiring Harness Clamp, NO.2
82715T	Bracket, Wiring Harness Clamp, NO.3
82821T	Cover, Connector
G1148	Cable, Motor
G114D	Cap, Motor Cable Terminal
G1240	Bracket Assy, Inverter Motor Cable
G1242	Bracket, Engine Motor Cable Clamp
G1242A	Bracket, Engine Motor Cable Clamp
G1242B	Bracket, Engine Motor Cable Clamp
G2148	Cable, Generator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
