Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

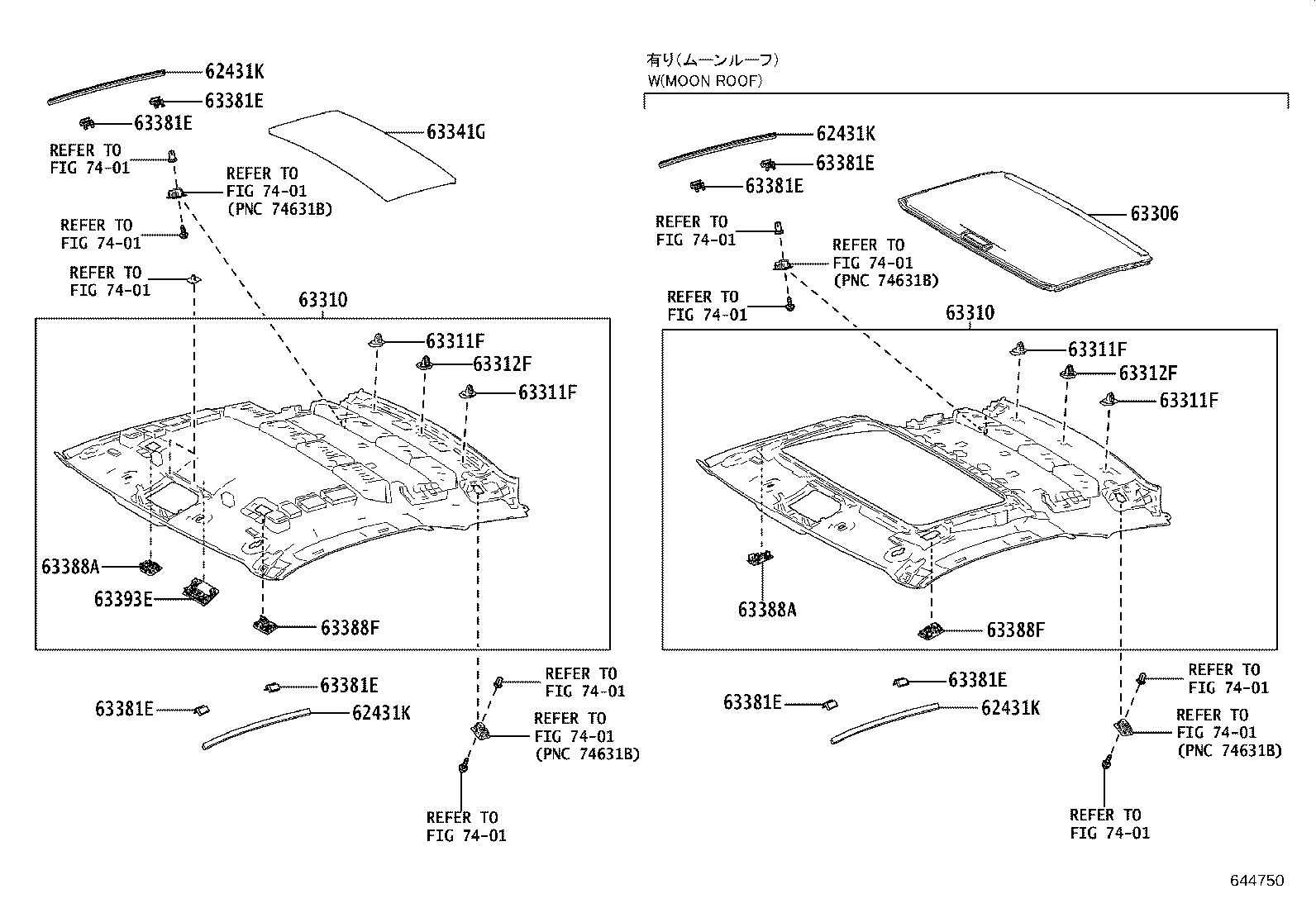

Figure 644108B 644108B 2017-05 → 2020-04 Figure 644750 644750 2020-04 → —

Part groups

PNCDescription
62431K Garnish, Roof Side Rail
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63341G Pad, Roof Silencer
63381E Retainer, Roof Headlining Trim, Front
63388A Cover, Roof Headlining Holder
63388F Cover, Roof Headlining Holder, LH
63393E Trim, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
