Front Seat & Seat Track

103 part groups · 13 illustrations

Illustrations

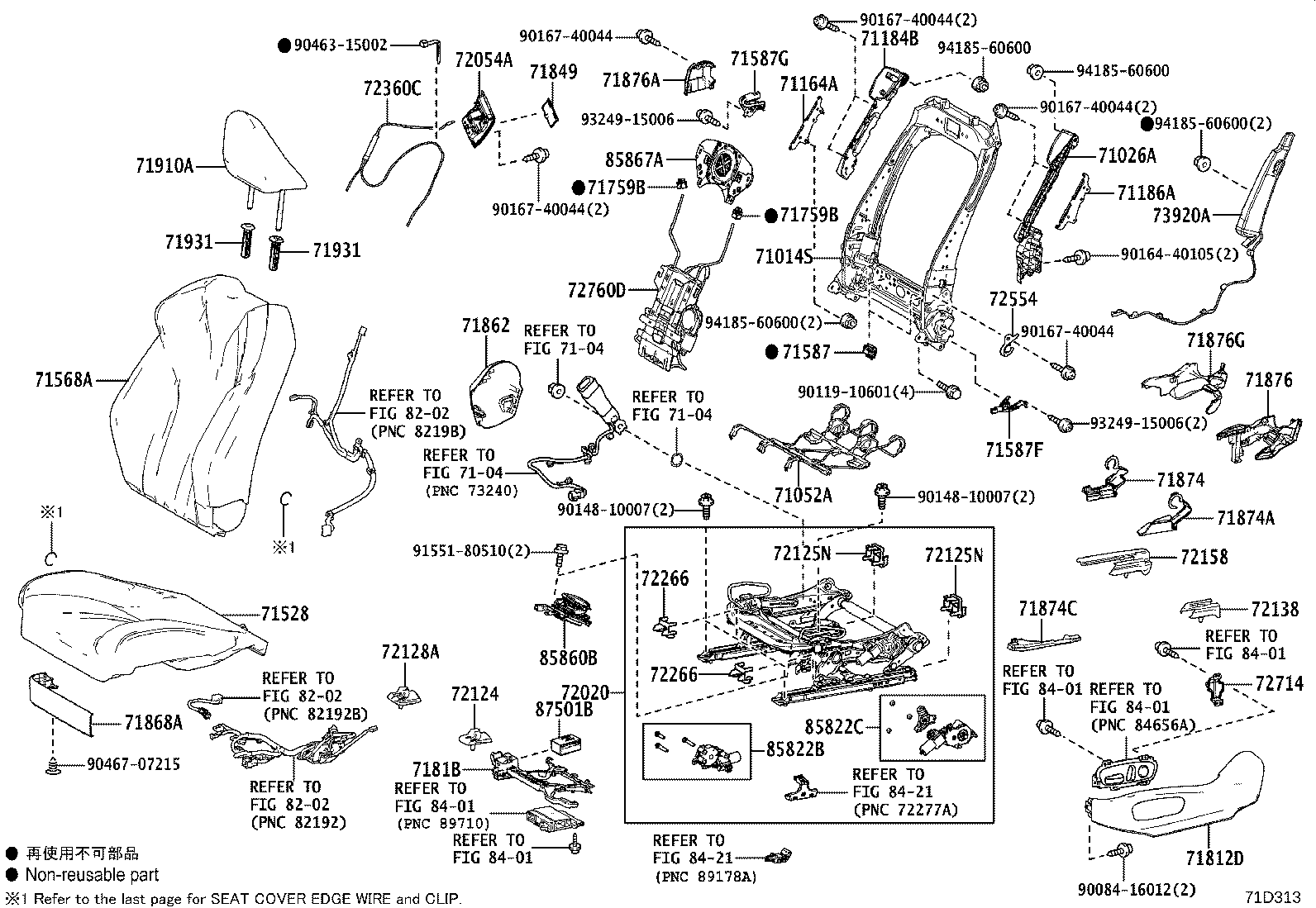

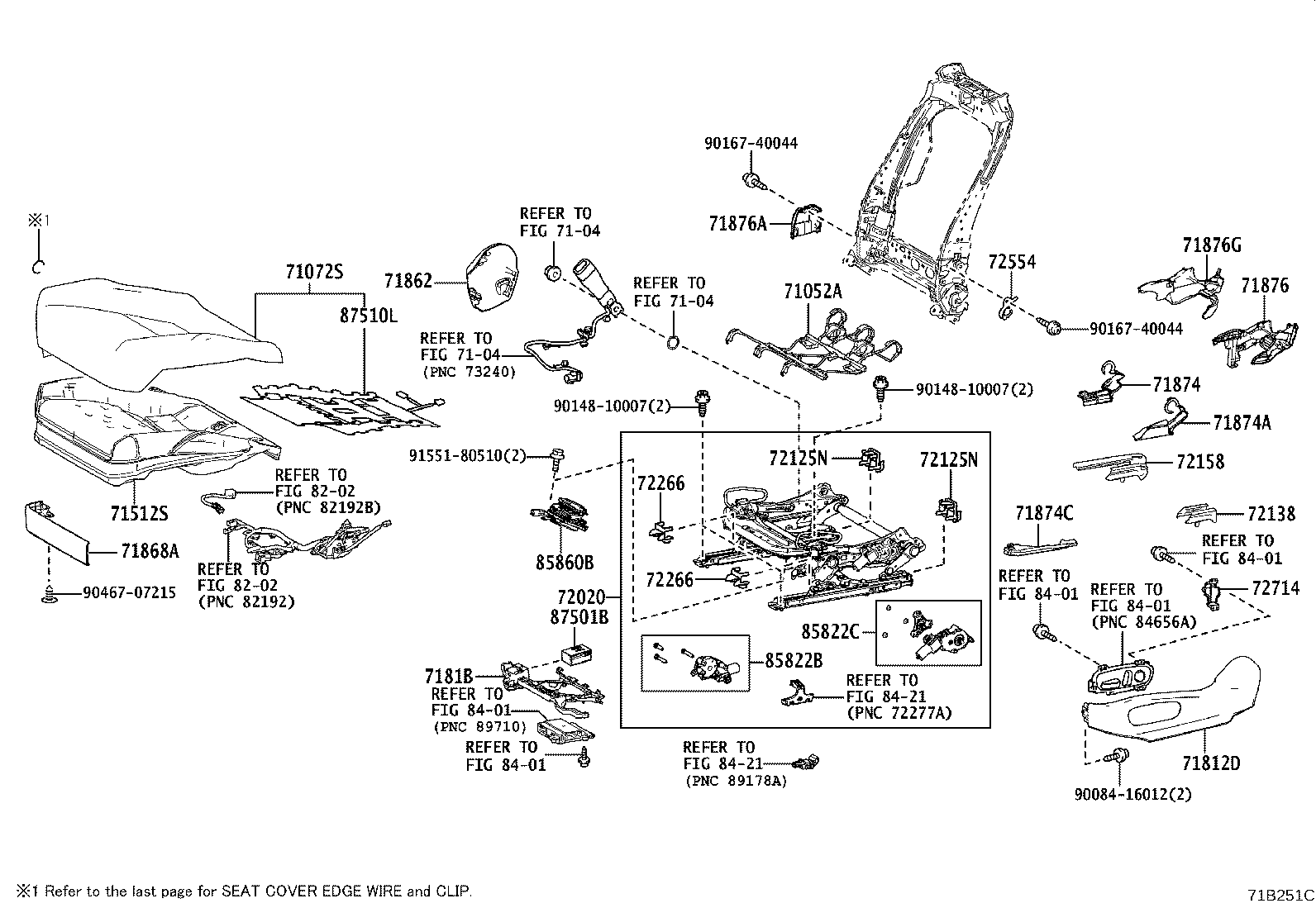

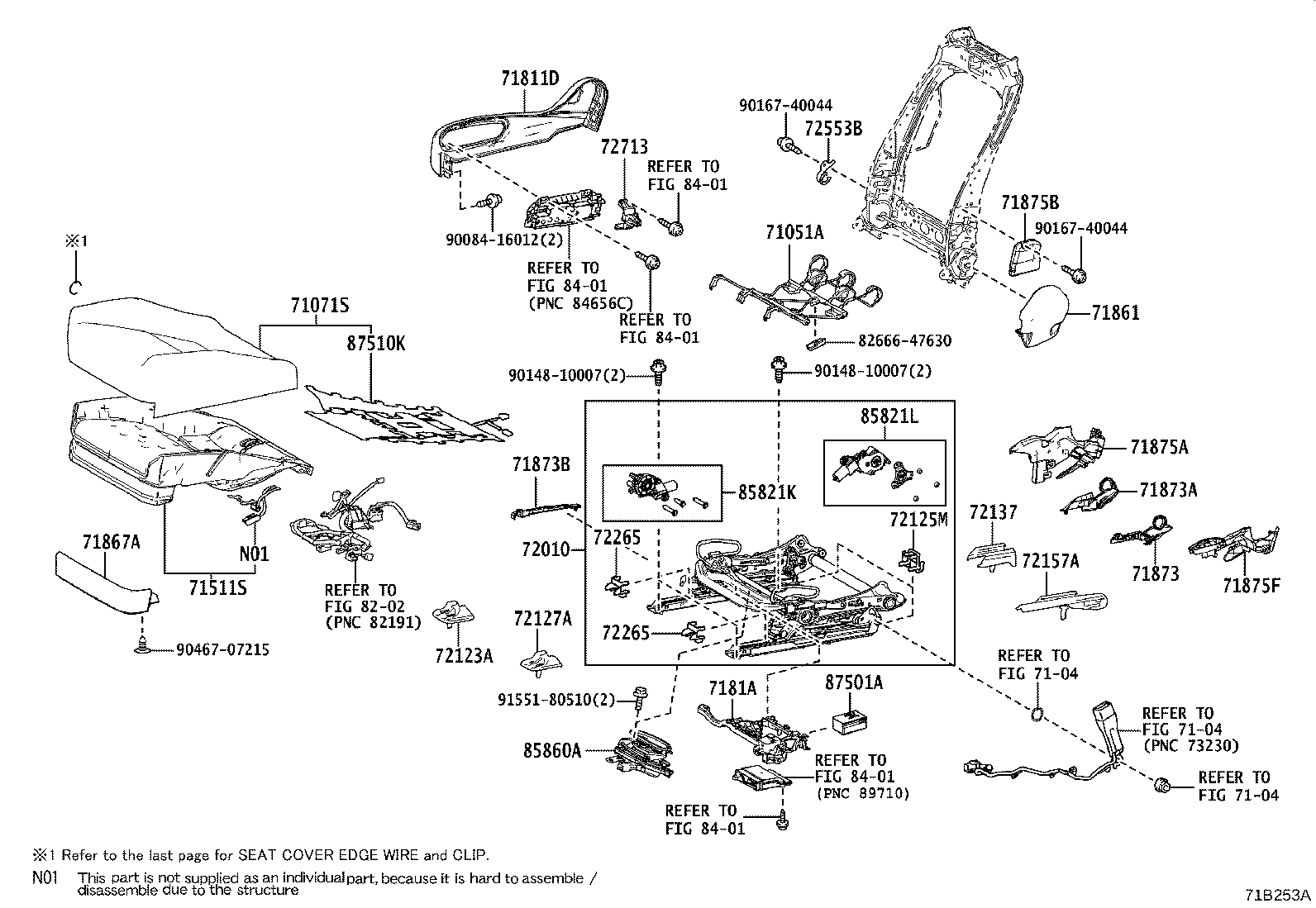

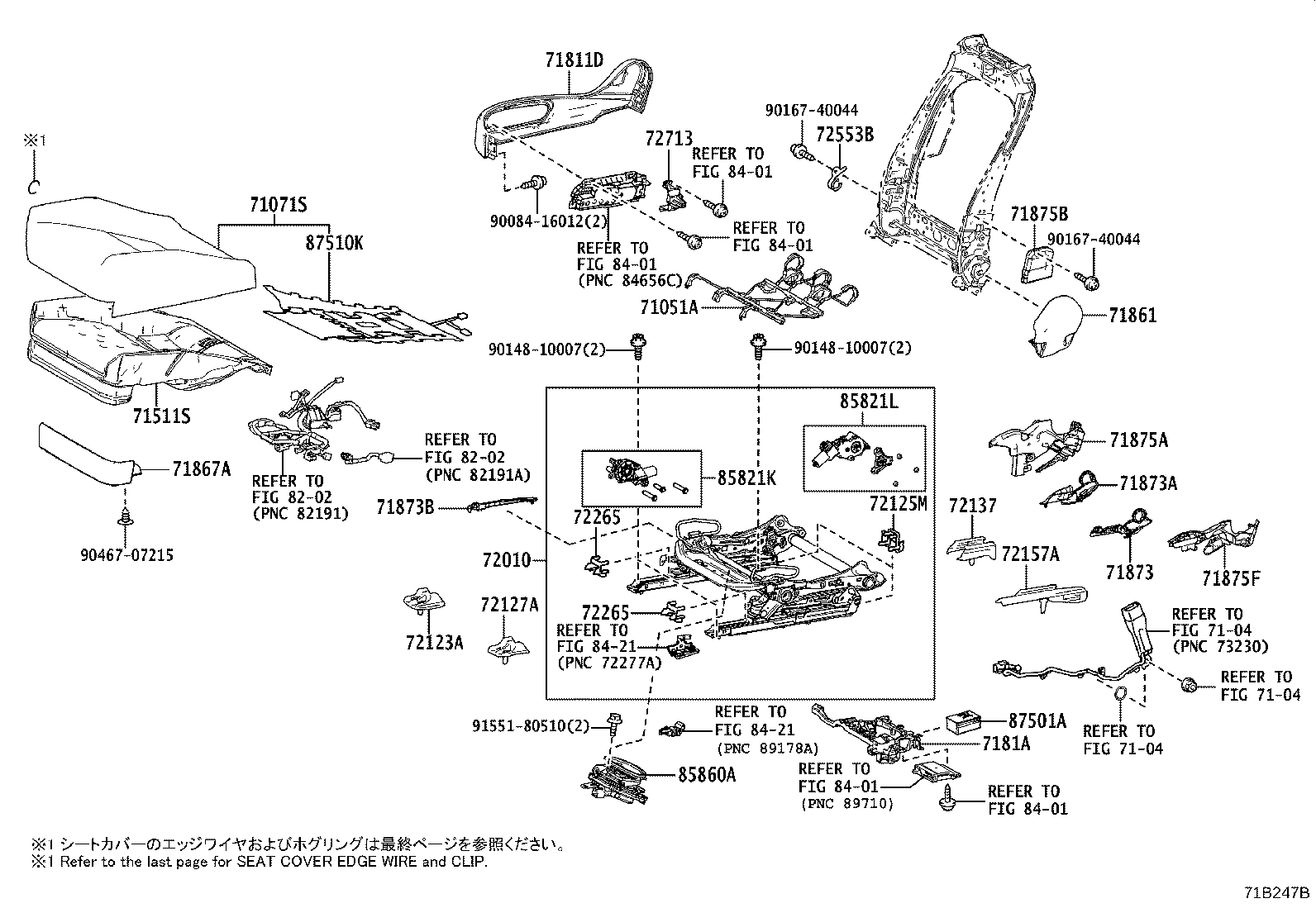

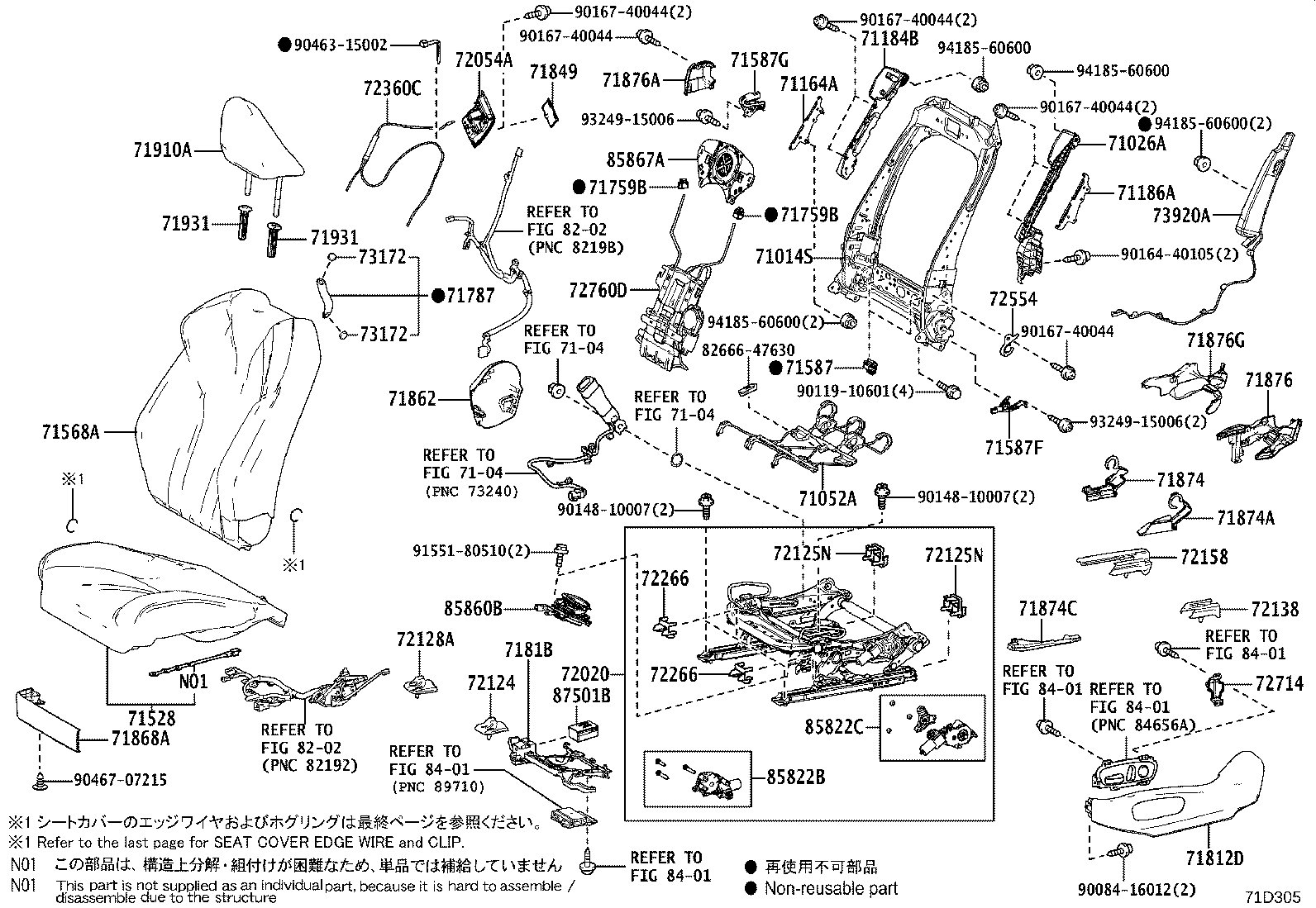

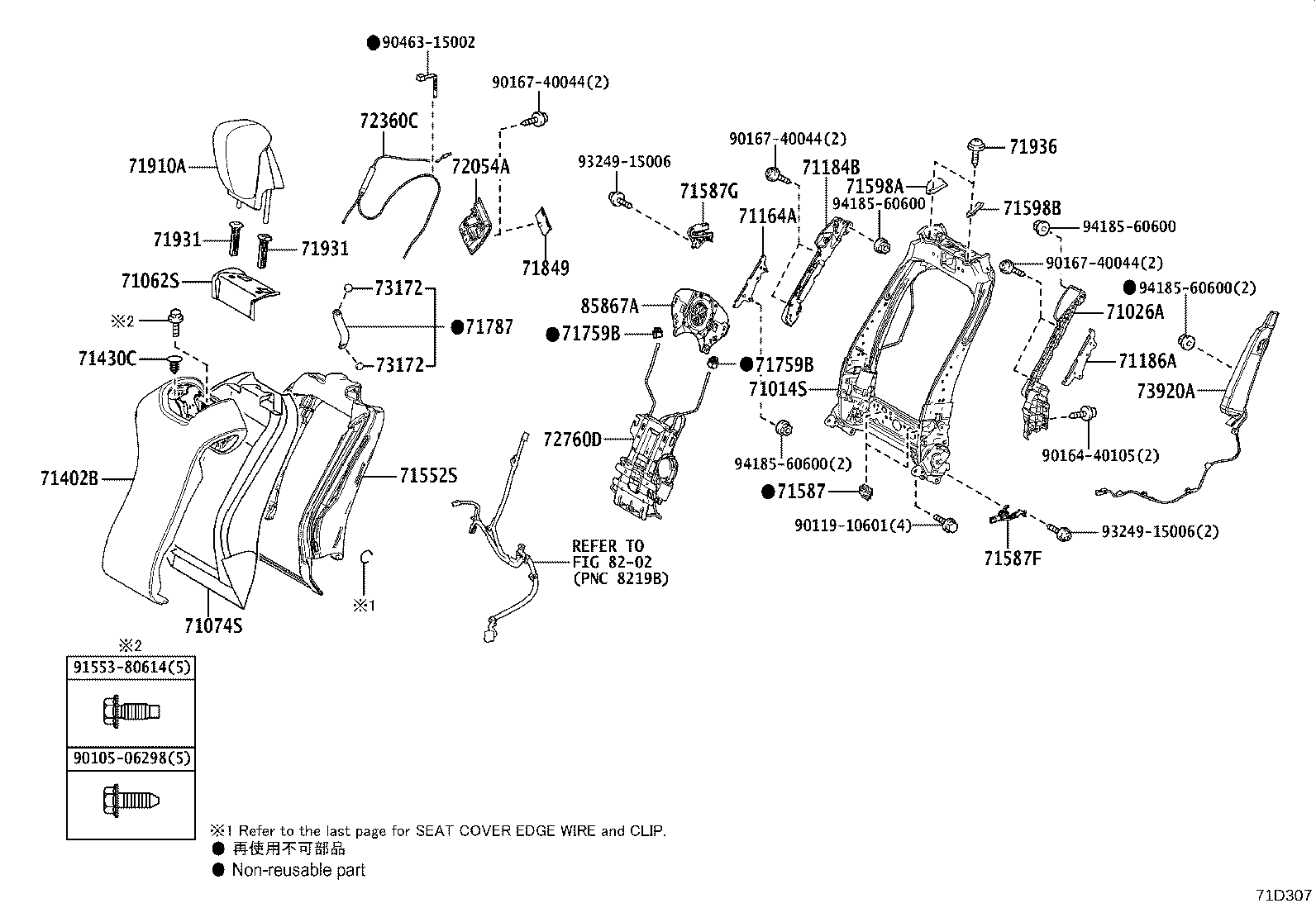

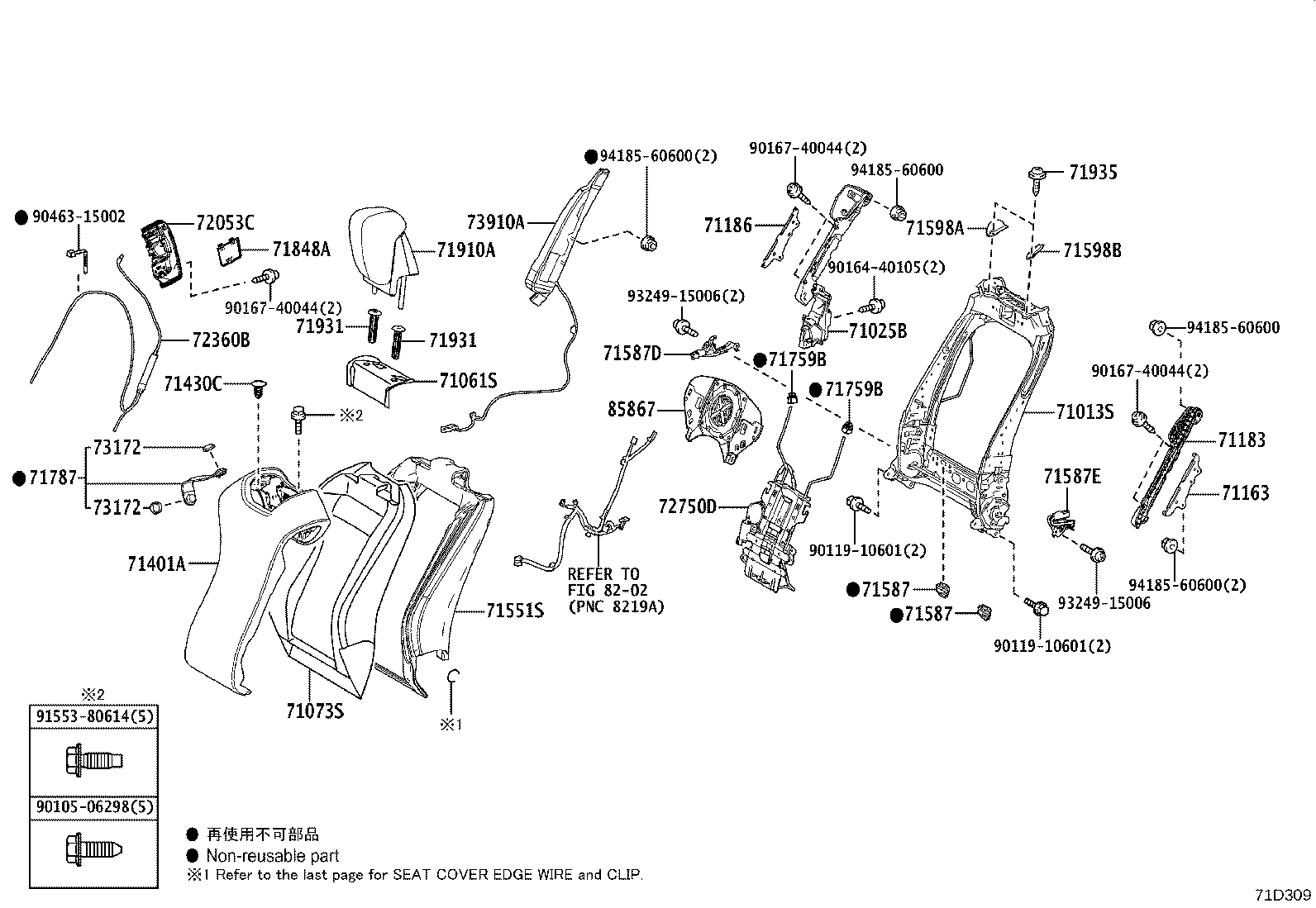

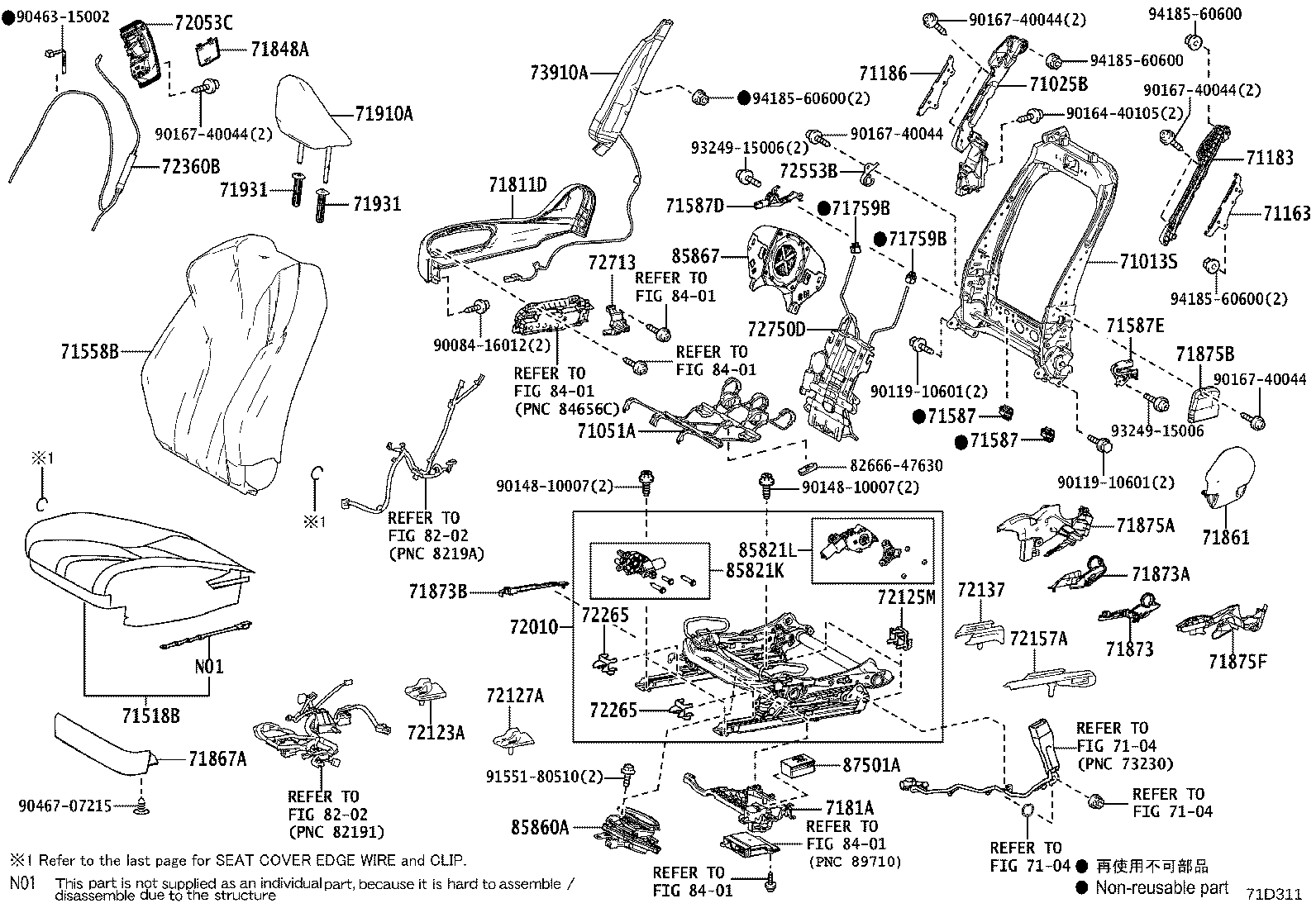

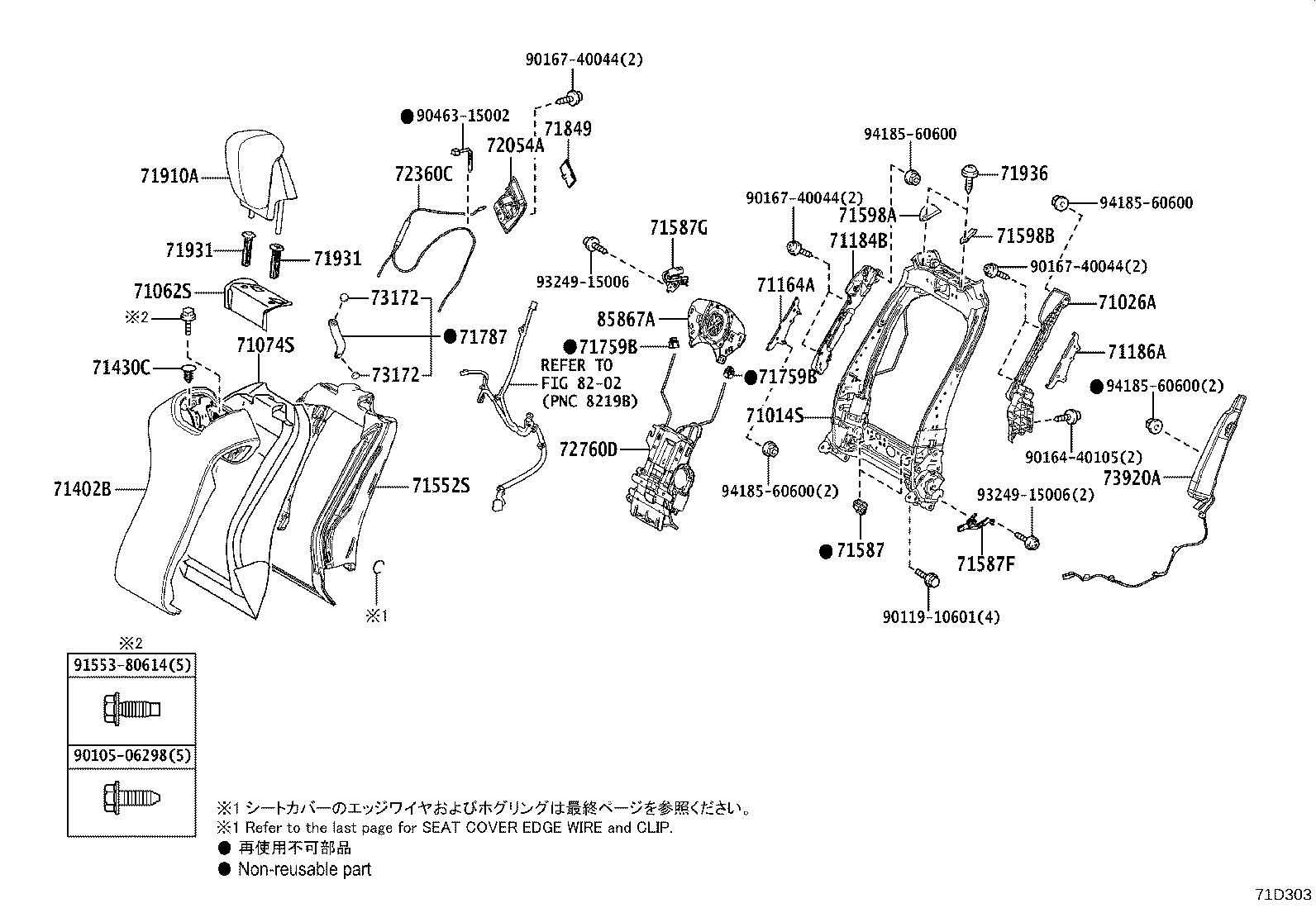

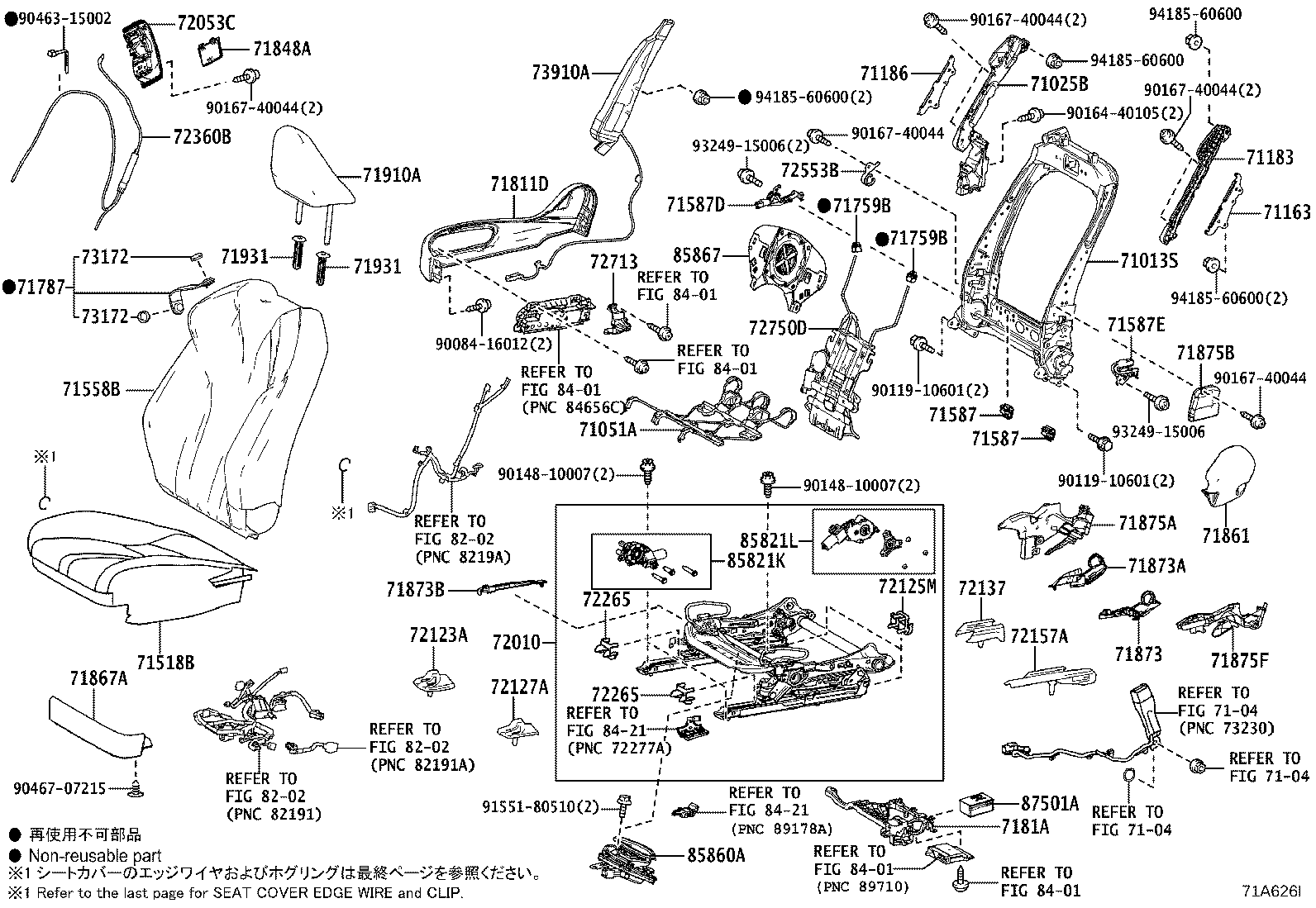

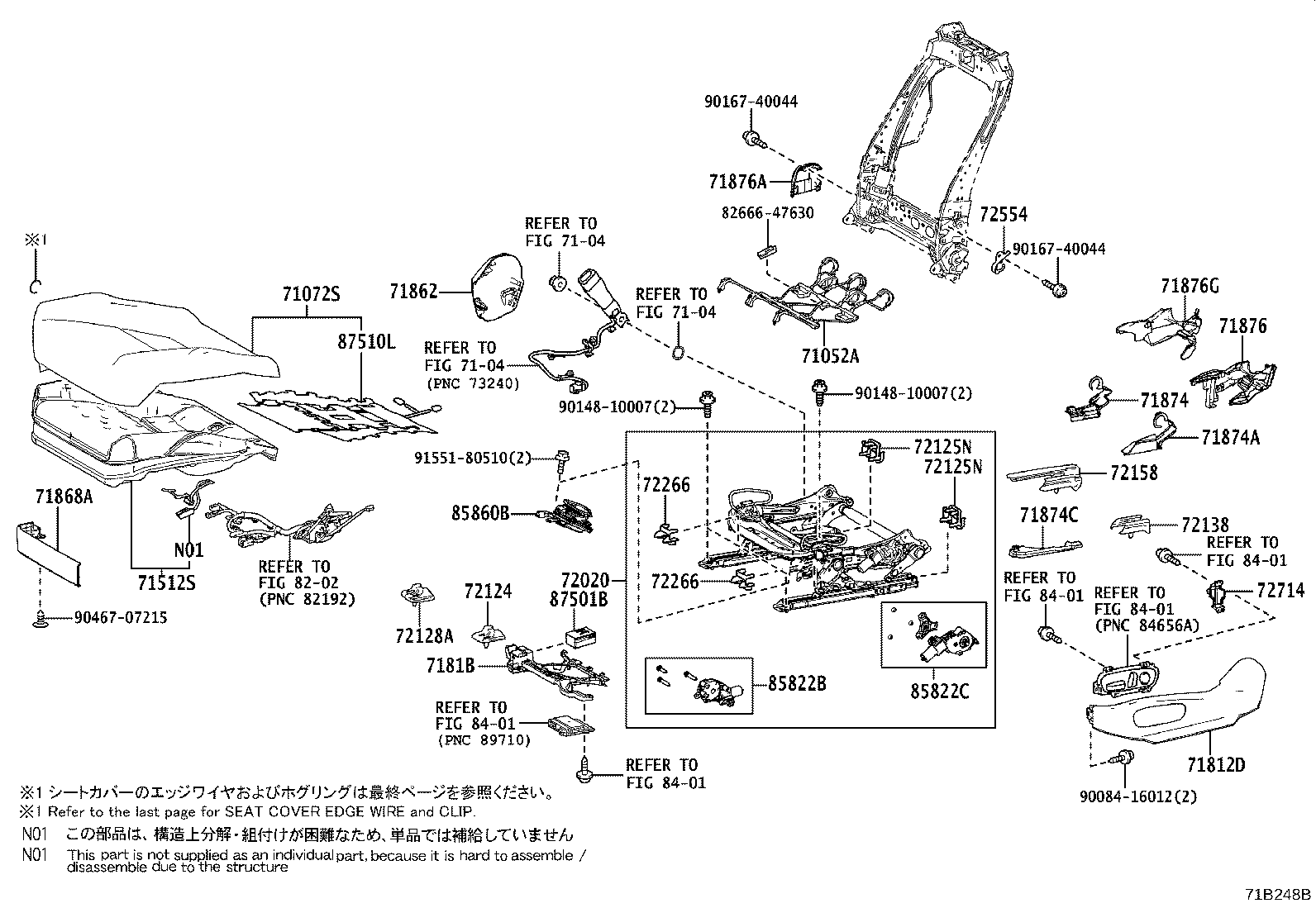

Figure 71D301 71D301 2017-05 → — Figure 71B247B 71B247B 2017-05 → — Figure 71A626I 71A626I 2017-05 → — Figure 71D303 71D303 2017-05 → — Figure 71B248B 71B248B 2017-05 → — Figure 71D305 71D305 2017-05 → — Figure 71D307 71D307 2017-05 → — Figure 71B251C 71B251C 2017-05 → — Figure 71D313 71D313 2017-05 → — Figure 71D309 71D309 2017-05 → — Figure 71B253A 71B253A 2017-05 → — Figure 71D311 71D311 2017-05 → — Figure 71A647A 71A647A 2017-05 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71025B Support Sub-assy, Front Seatback, RH
71026A Support, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71061S Cover Sub-assy, Front Seatback, Upper RH
71062S Cover Sub-assy, Front Seatback, Upper LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71163 Bracket, Front Seatback Support, RH
71164A Bracket, Front Seatback Support, LH
71183 Support, Front Seatback, RH
71184B Support, Front Seatback, LH
71186 Bracket, Front Seat Side Support, RH
71186A Bracket, Front Seat Side Support, LH
71401A Back Sub-assy, Front Seat, RH
71402B Back Sub-assy, Front Seat, LH
71430C Clip
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71587 Protector, Front Seatback Edge
71587D Protector, Front Seatback Edge, Outer(FOR RH SEAT)
71587E Protector, Front Seatback Edge, Inner(FOR RH SEAT)
71587F Protector, Front Seatback Edge, Outer(FOR LH SEAT)
71587G Protector, Front Seatback Edge, Inner(FOR LH SEAT)
71598A Plate, Seat Cover, RH
71598B Plate, Seat Cover, LH
71759B Hook, Front Seatback
71787 Band, Front Seatback Pocket
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71935 Clip
71936 Clip
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125M Cover, Seat Track, Upper NO.3
72125N Cover, Seat Track, Upper NO.4
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72360B Cable Assy, Reclining Adjuster Equalizing RH
72360C Cable Assy, Reclining Adjuster Equalizing LH
72553B Protector, Reclining Cover, RH
72554 Protector, Reclining Cover, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73172 Cap, Front Shoulder Belt Hanger
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
