Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

13 part groups · 2 illustrations

Illustrations

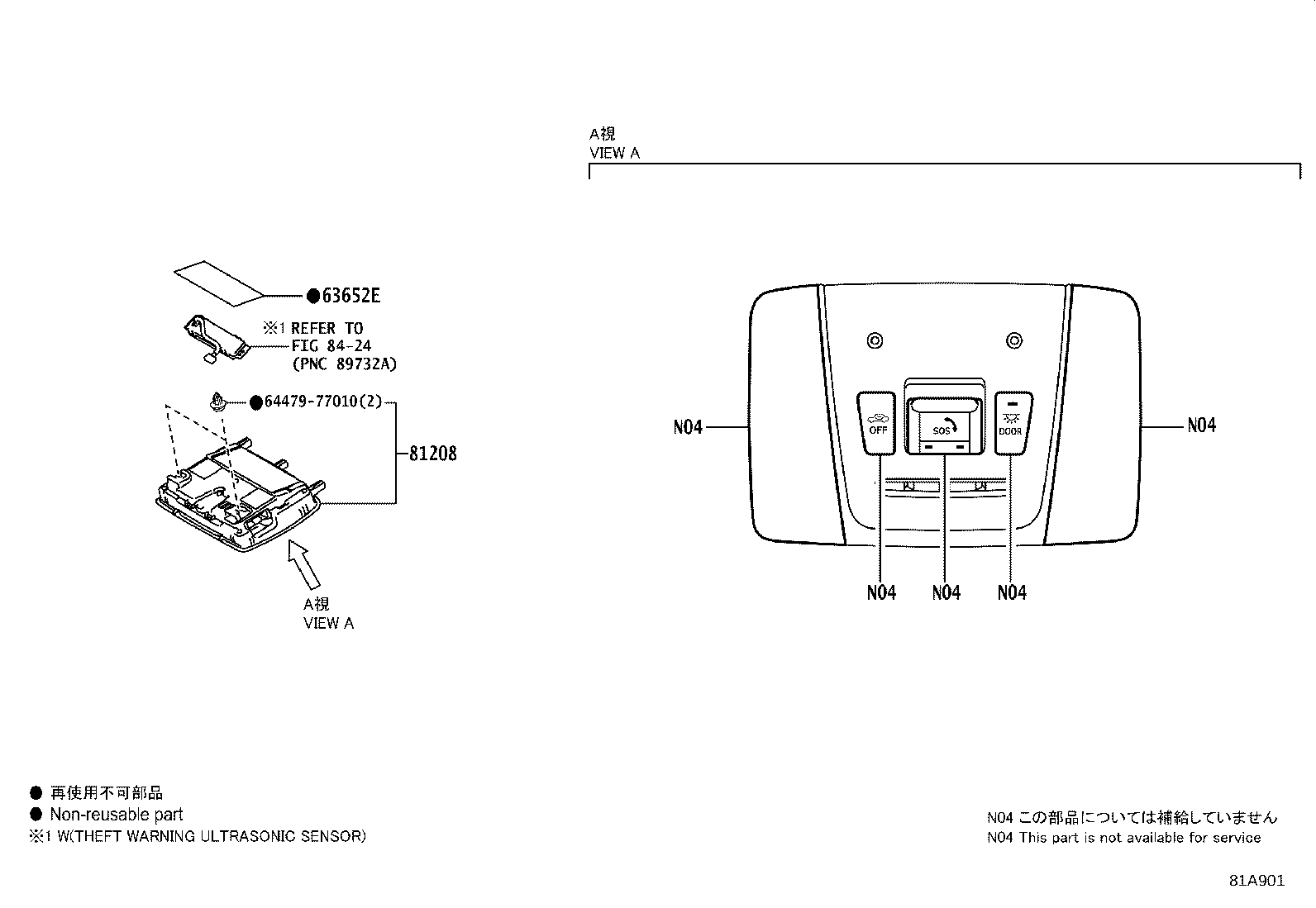

Figure 818087E 818087E 2017-05 → — Figure 81A901 81A901 2017-05 → —

Part groups

PNCDescription
63652E Cover, Roof Console Box, NO.1
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81208 Lamp Sub-assy, Map
81230M Lamp Assy, Courtesy, RH
81230N Lamp Assy, Courtesy, LH
81260 Lamp Assy, Glove Box
81330 Lamp Assy, Luggage Compartment, NO.1
81340B Bulb (FOR VANITY LAMP)
81822C Cover, Indicator Lamp
81879C Bracket, Indicator Lamp
81H50 Lamp Assy, Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
