Electronic Fuel Injection System

20 part groups · 3 illustrations

Illustrations

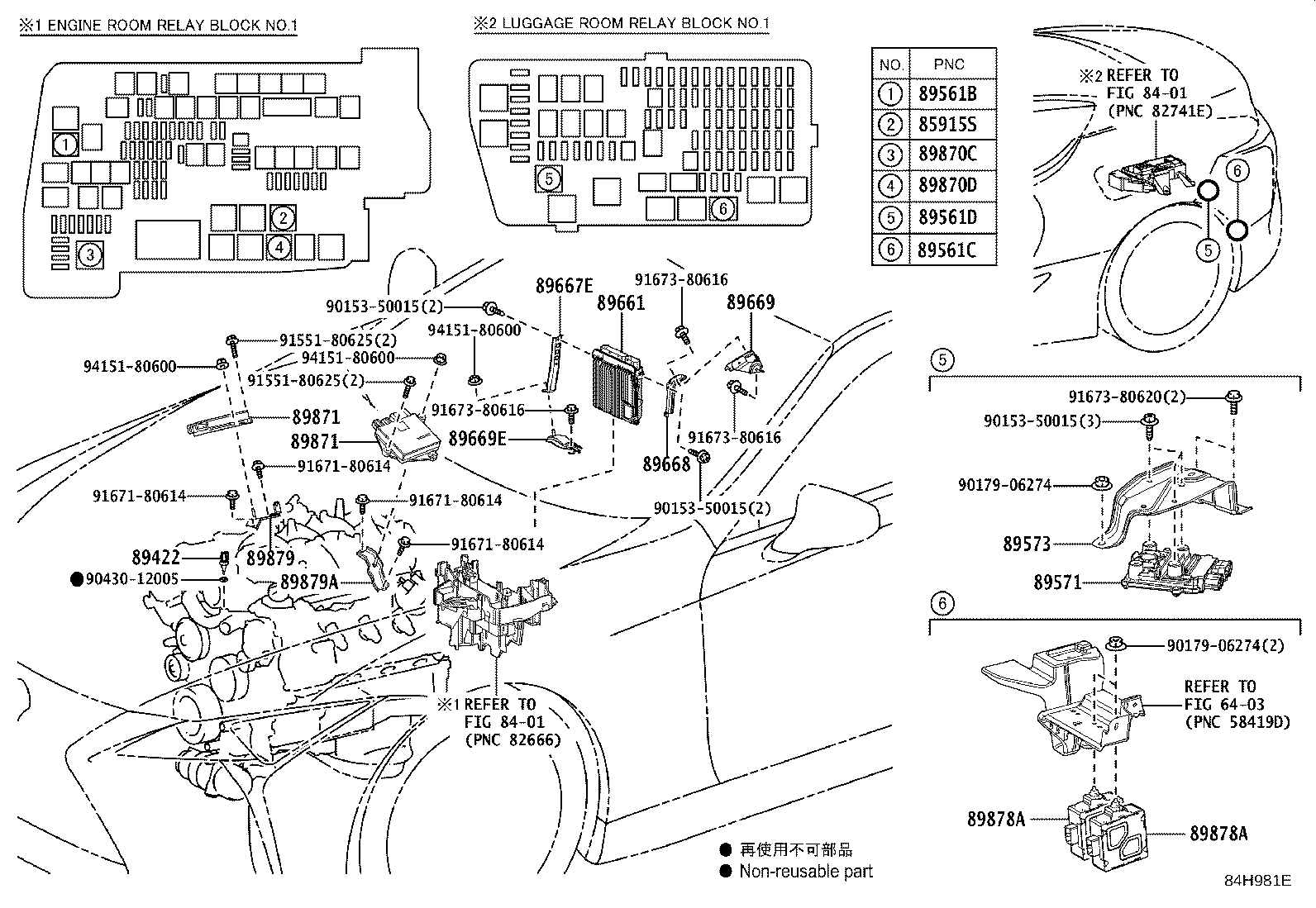

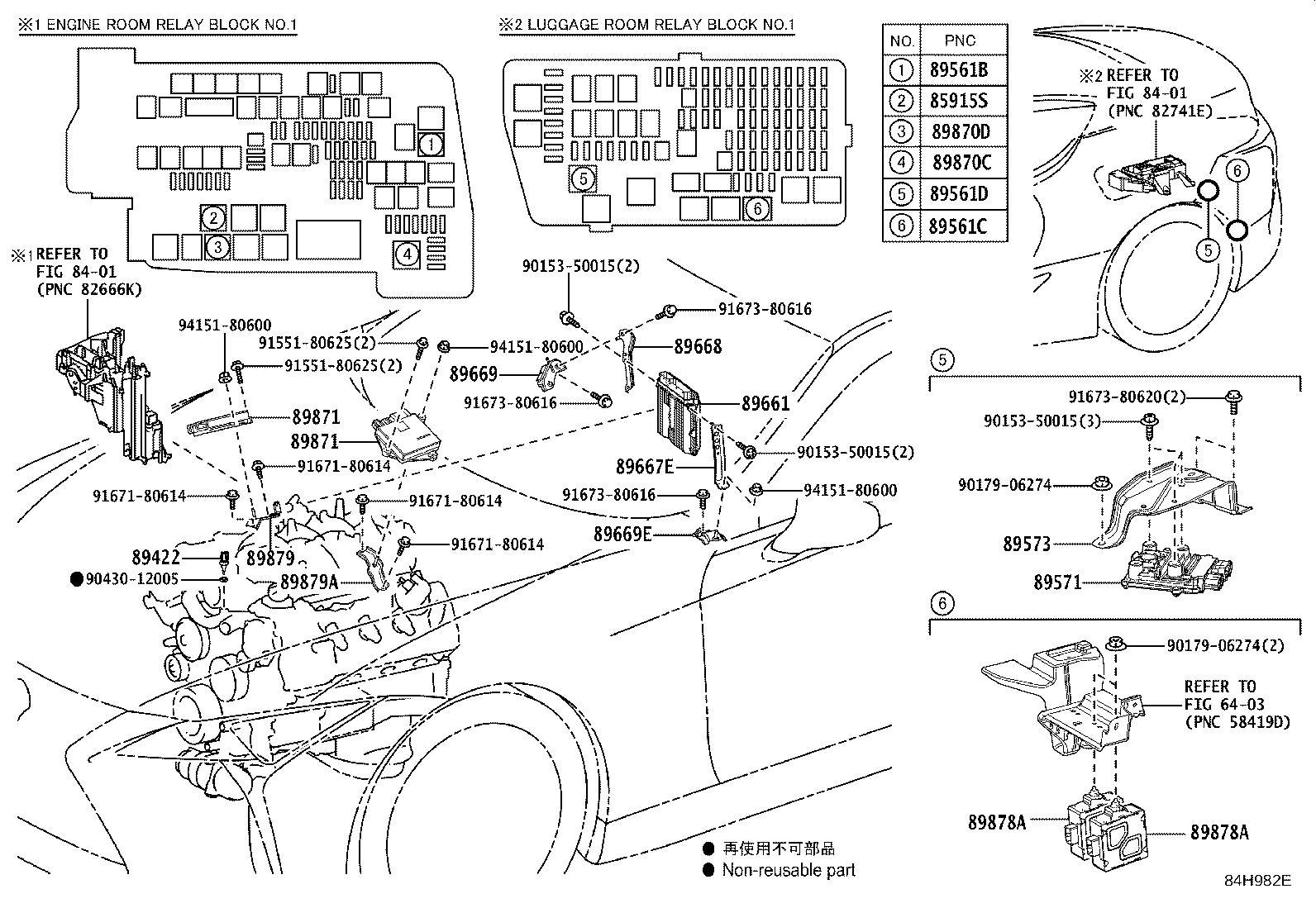

Figure 84H954D 84H954D 2017-05 → — Figure 84H982E 84H982E 2017-05 → — Figure 84H981E 84H981E 2017-05 → —

Part groups

PNCDescription
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89561D Relay, Electronic Fuel Injection Main, NO.5
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89669E Bracket, Engine Control Computer, NO.4
89870B Relay, Electronic Driver Unit
89870C Relay, Electronic Driver Unit, NO.1
89870D Relay, Electronic Driver Unit, NO.2
89871 Driver, Injector
89878A Driver, Exhaust Change Valve
89879 Bracket, Injector Driver
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
