Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

8 part groups · 2 illustrations

Illustrations

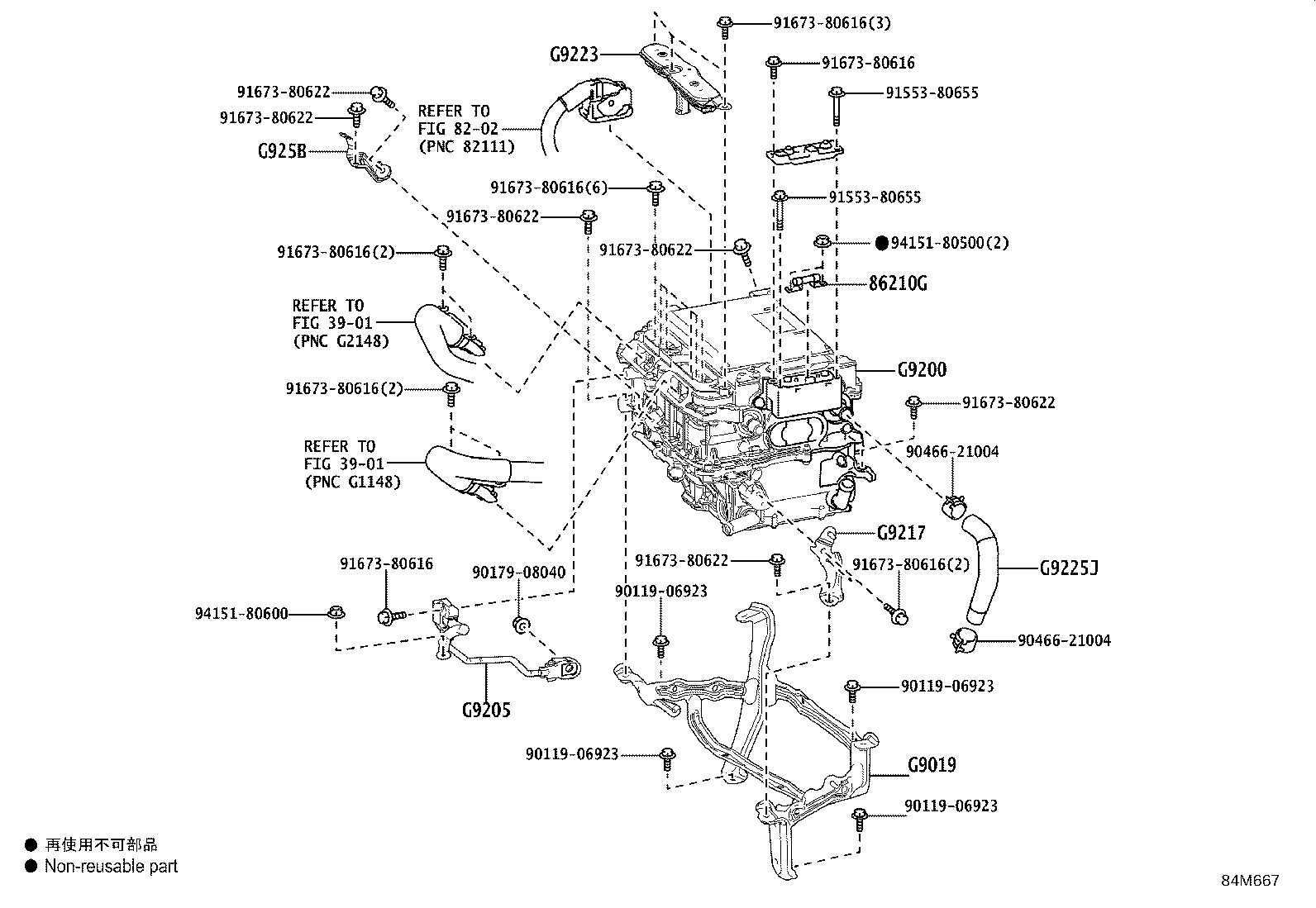

Figure 84M668 84M668 2017-05 → — Figure 84M667 84M667 2017-05 → —

Part groups

PNCDescription
86210G Fuse, High Voltage
G9019 Bracket Sub-assy, Inverter Tray
G9200 Inverter Assy, W/Converter
G9205 Plate Sub-assy, Inverter Bus-bar
G9217 Bracket, Inverter, NO.4
G9223 Cover, Inverter Terminal
G9225J Hose, Inverter Cooling, NO.1
G925B Bracket, Inverter, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
