Toyota Lexus LC500/500H
2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe
Supported model
Data version 2024-06

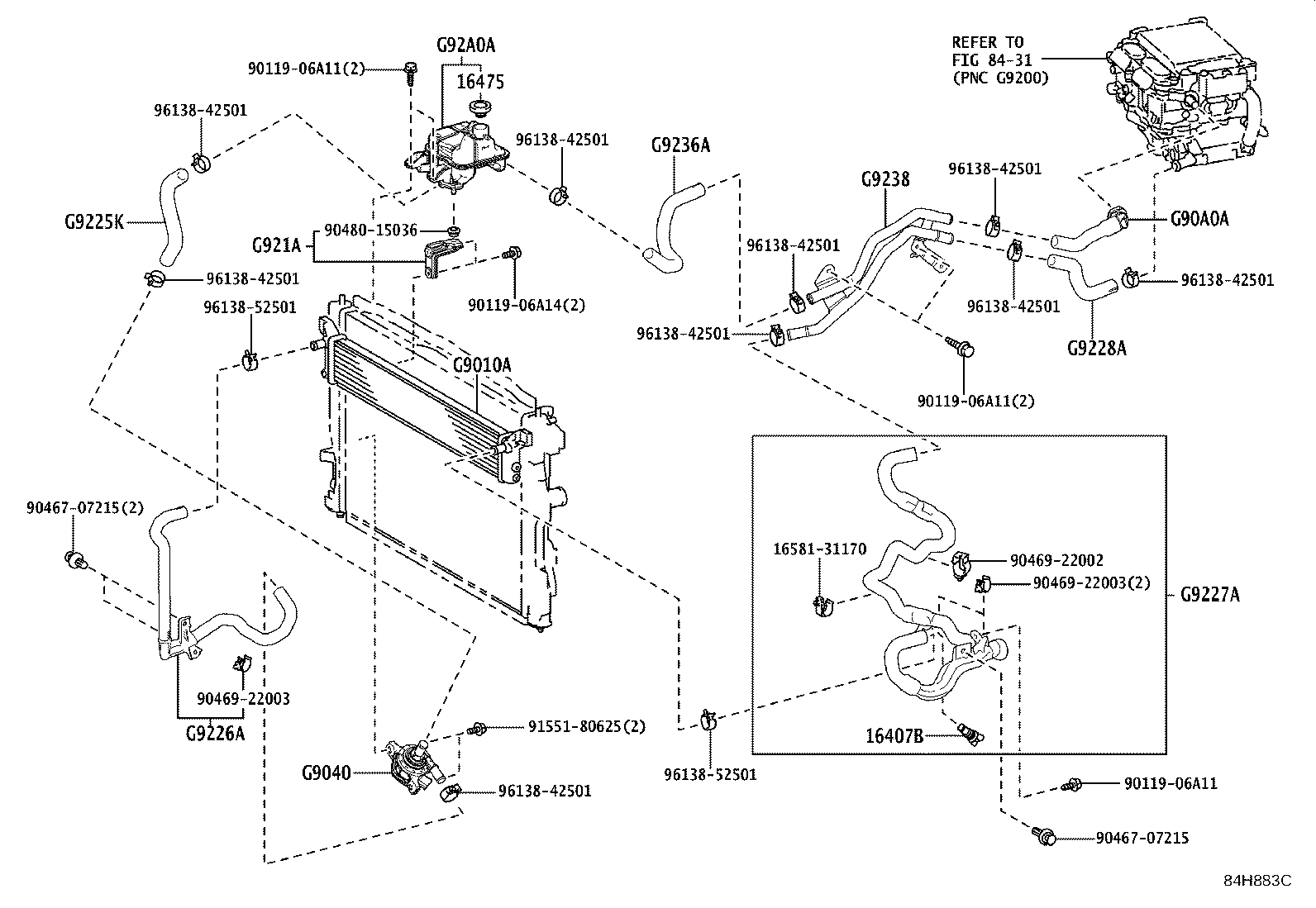

Inverter Cooling
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407B | Cock Sub-assy, Radiator Drain |
| 16475 | Cap, Reserve Tank |
| G9010A | Radiator Assy |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G90A0A | Hose Assy, Inverter Cooling, NO.1 |
| G90B0 | Hose Assy, Inverter Cooling, NO.2 |
| G921A | Bracket, Inverter Reserve Tank, NO.1 |
| G9225K | Hose, Inverter Cooling, NO.1 |
| G9226A | Hose, Inverter Cooling, NO.2 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G9228A | Hose, Inverter Cooling, NO.4 |
| G9229A | Hose, Inverter Cooling, NO.5 |
| G9236A | Hose, Inverter Cooling, NO.6 |
| G9238 | Pipe, Inverter Cooling |
| G92A0A | Tank Assy, Inverter Reserve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
