Toyota Lexus LC500/500H
2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe
Supported model
Data version 2024-06

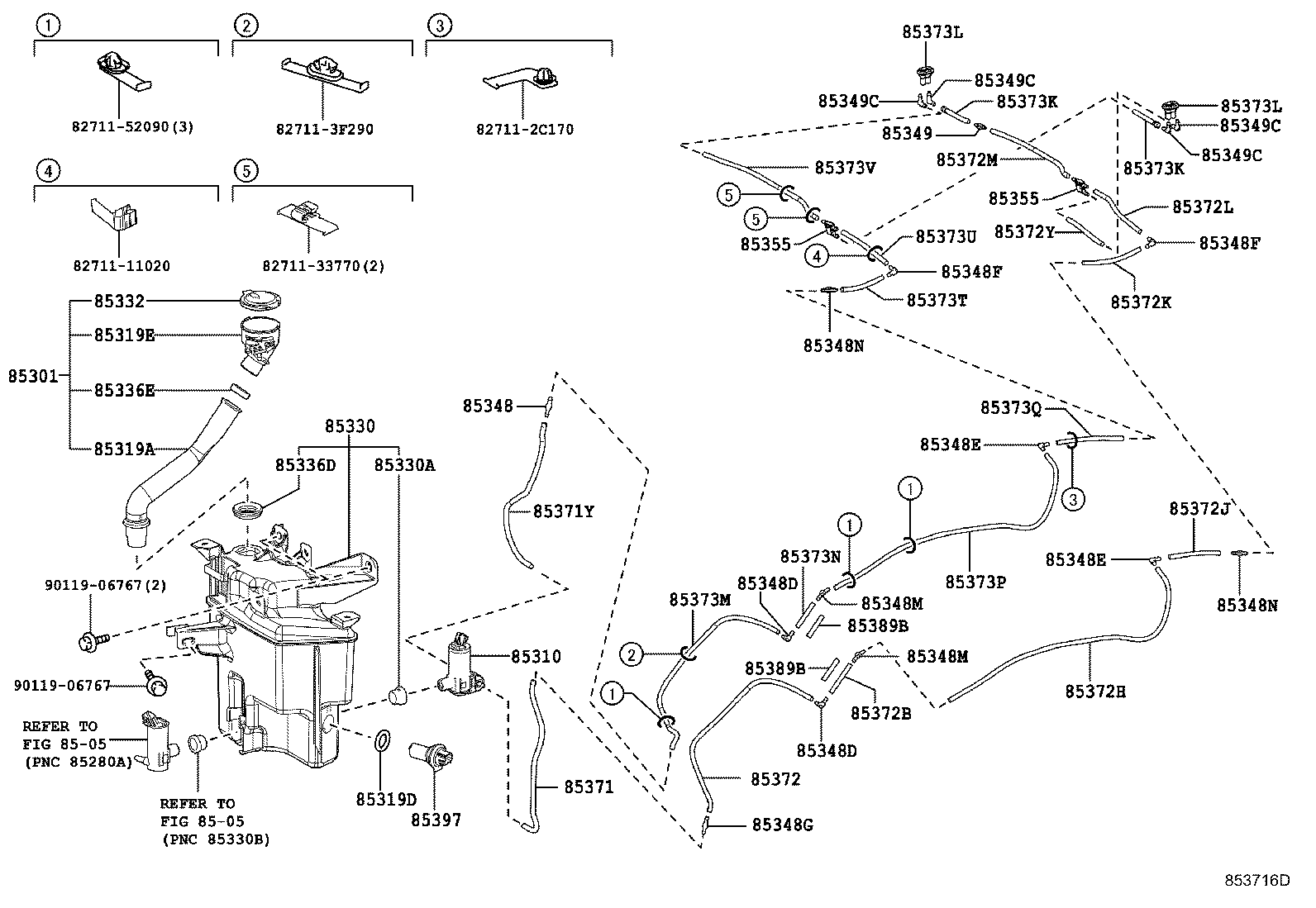

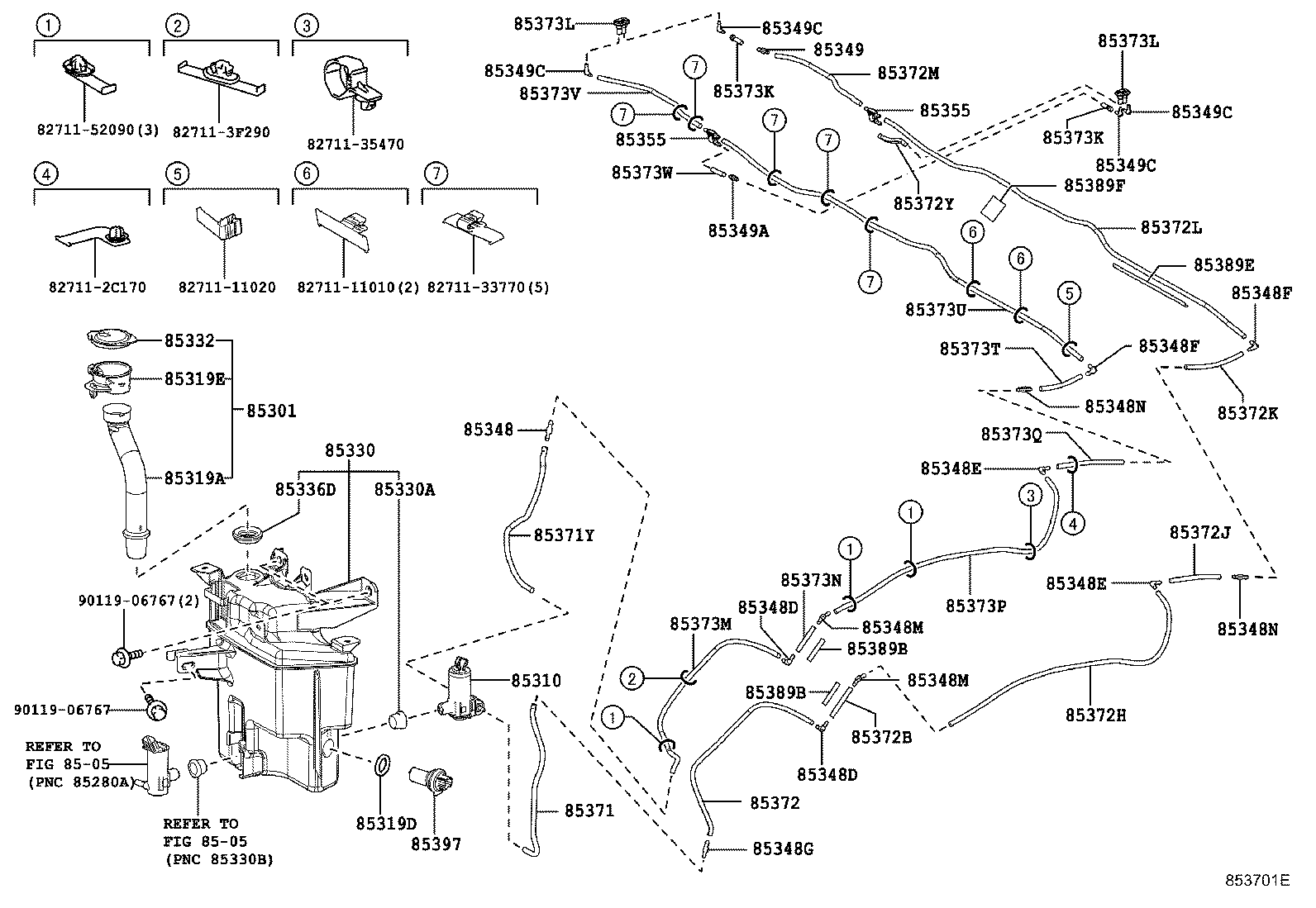

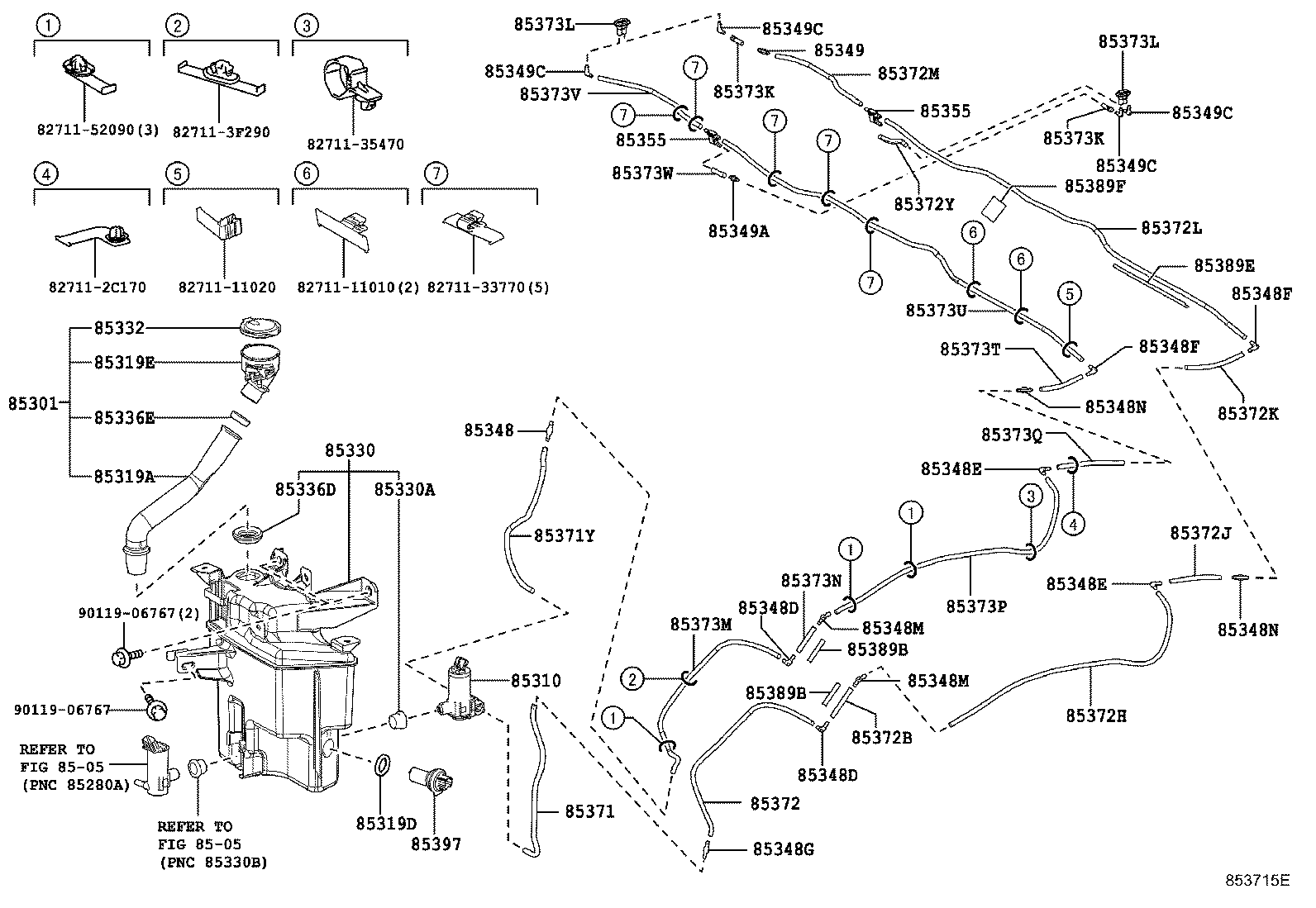

Windshield Washer
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85301 | Inlet Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85319A | Hose, Inlet |
| 85319D | Packing, Front Washer |
| 85319E | Inlet Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85336D | Packing, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85348M | Joint, Windshield Washer Hose, NO.3 |
| 85348N | Joint, Windshield Washer Hose, NO.4 |
| 85349 | Joint, Windshield Washer Hose, NO.1 |
| 85349A | Joint, Windshield Washer Hose, NO.2 |
| 85349C | Joint, Windshield Washer Elbow, NO.4 |
| 85355 | Valve, Windshield Washer Hose |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371Y | Hose, Windshield Washer (FROM MOTOR TO JOINT), NO.2 |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85372M | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7 |
| 85372Y | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.8 |
| 85373K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.9 |
| 85373L | Grommet, Washer |
| 85373M | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.10 |
| 85373N | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.11 |
| 85373P | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.12 |
| 85373Q | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.13 |
| 85373T | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.14 |
| 85373U | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.15 |
| 85373V | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.16 |
| 85373W | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.17 |
| 85389B | Protector, Windshield Washer |
| 85389E | Protector, Windshield Washer, NO.2 |
| 85389F | Protector, Windshield Washer, NO.3 |
| 85397 | Switch Assy,Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
