Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

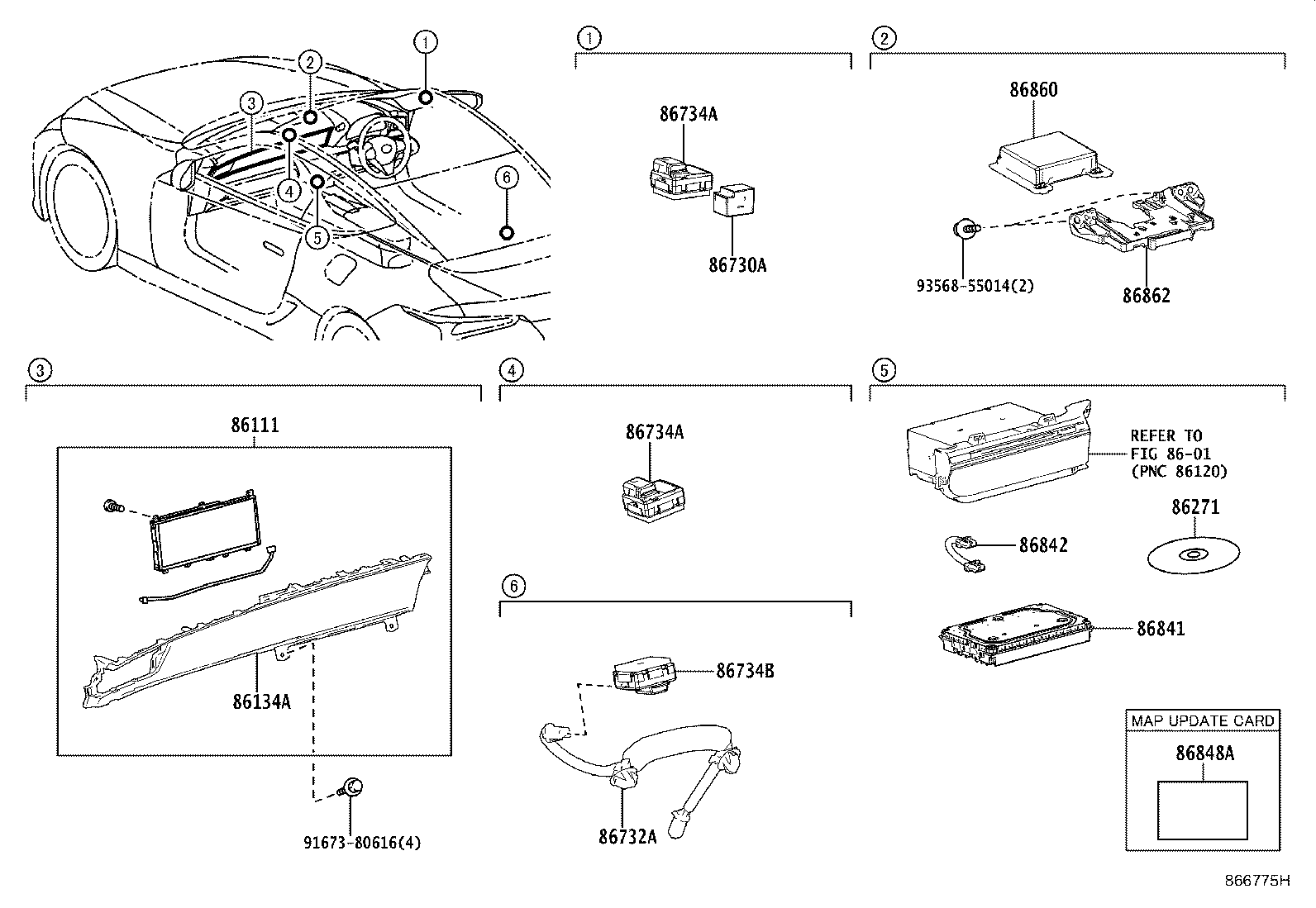

Figure 866776D 866776D 2017-05 → — Figure 866775H 866775H 2017-05 → —

Part groups

PNCDescription
86111 Multi-display
86134A Parts, Multi-display
86271 Disc, Disc Player
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86732A Wire,Microphone
86734A Microphone, Active Noise Control, Front
86734B Microphone, Active Noise Control, Rear
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
