Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

6 part groups · 2 illustrations

Illustrations

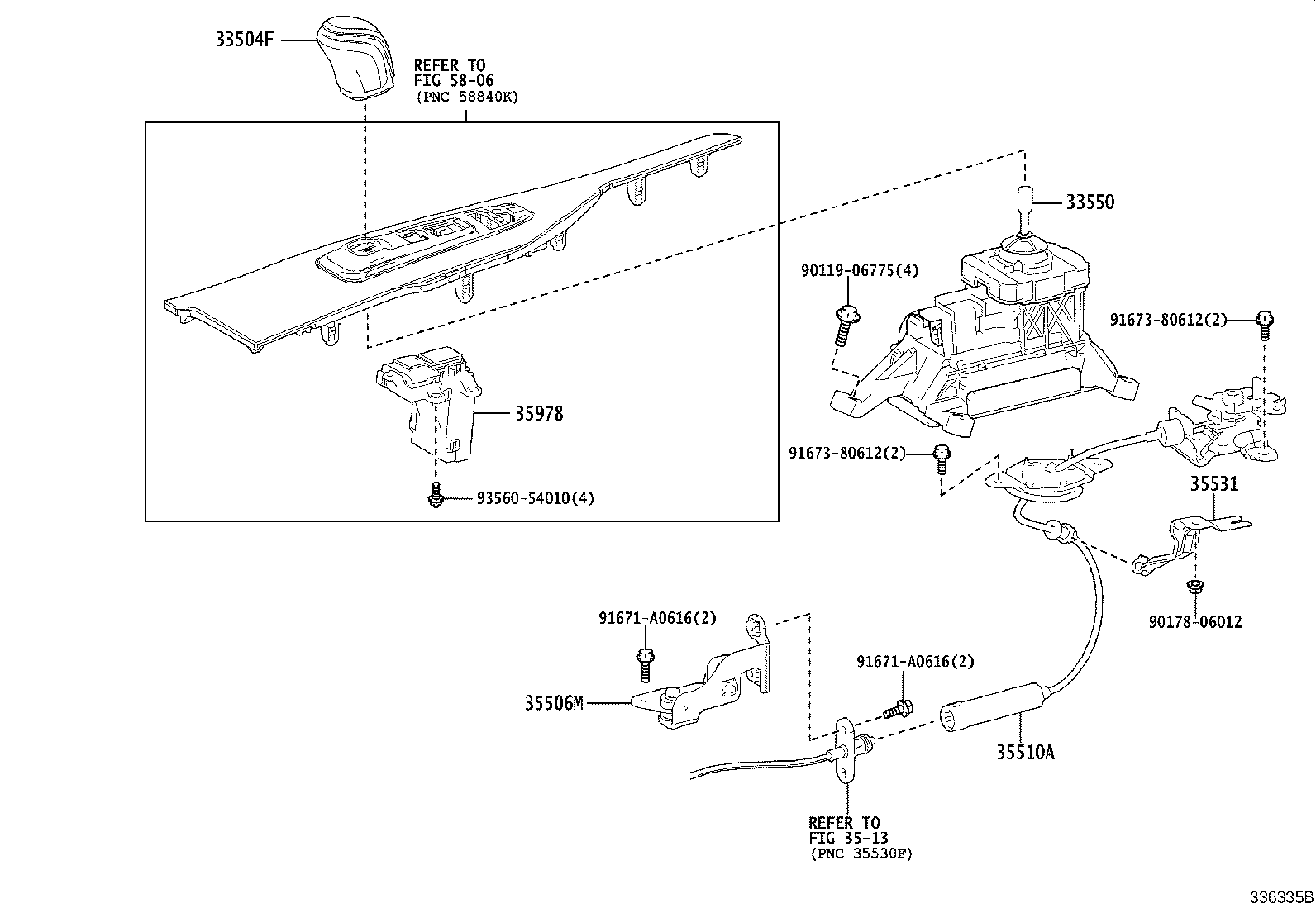

Figure 336336B 336336B 2020-07 → — Figure 336335B 336335B 2020-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
35506M Bracket Sub-assy, Parking Release Cable, NO.2
35510A Lever Assy, Parking Lock Release
35531 Bracket, Parking Lock Release Cable Clamp, NO.1
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
