Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

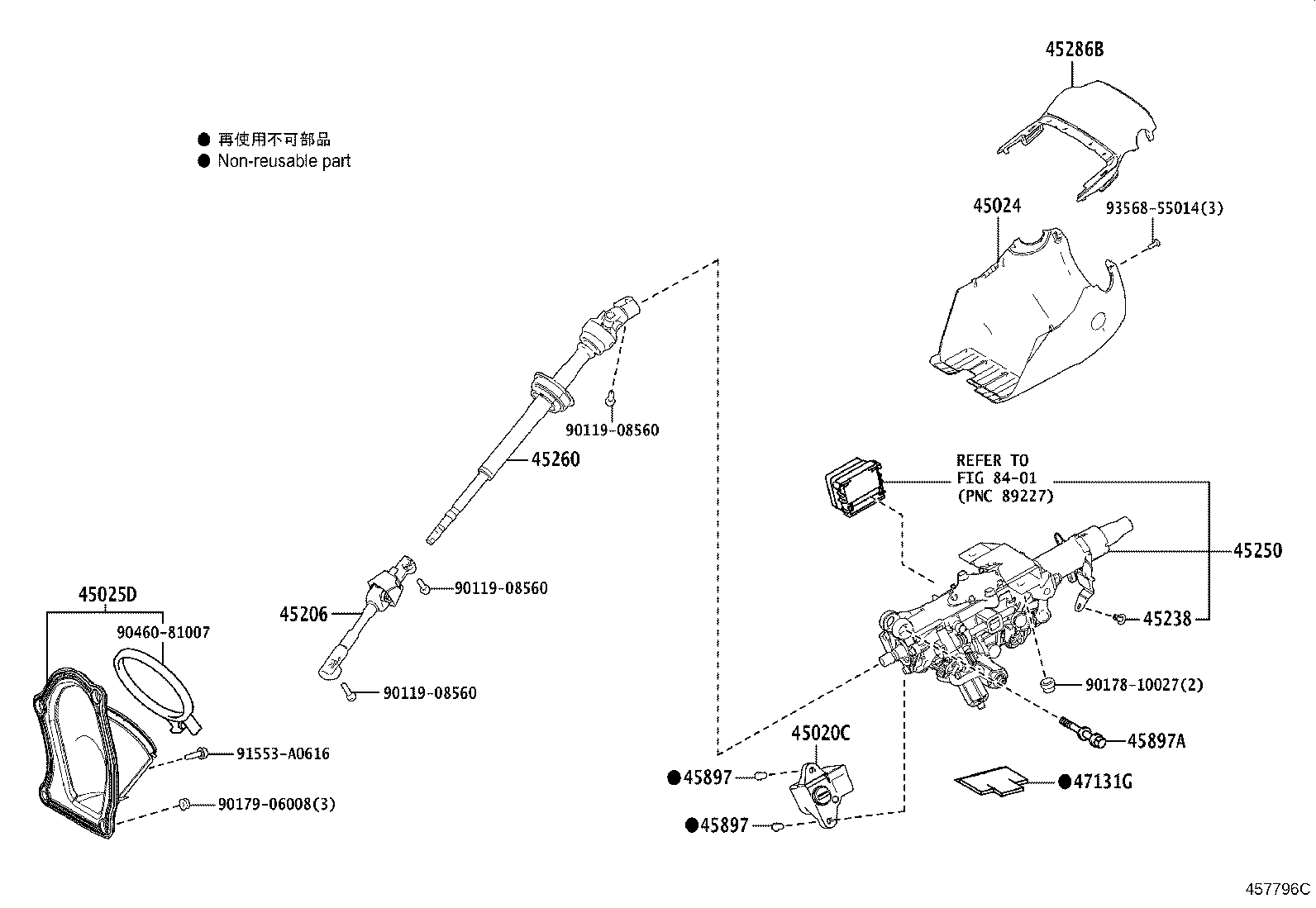

Figure 457795C 457795C 2020-07 → — Figure 457796C 457796C 2020-07 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286B Cover, Steering Column, Upr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
47131G Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
