Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06
Brake Tube & Clamp

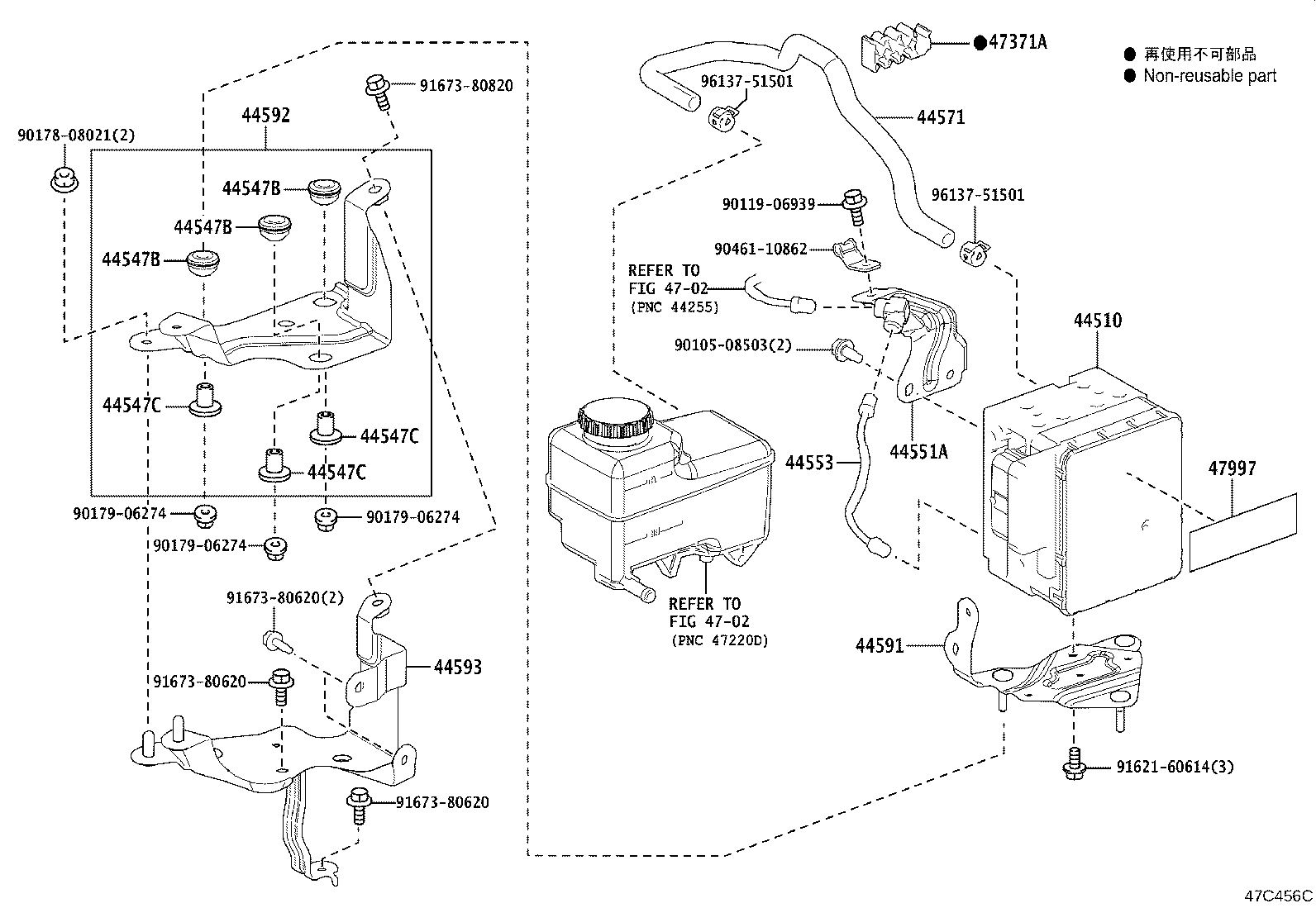

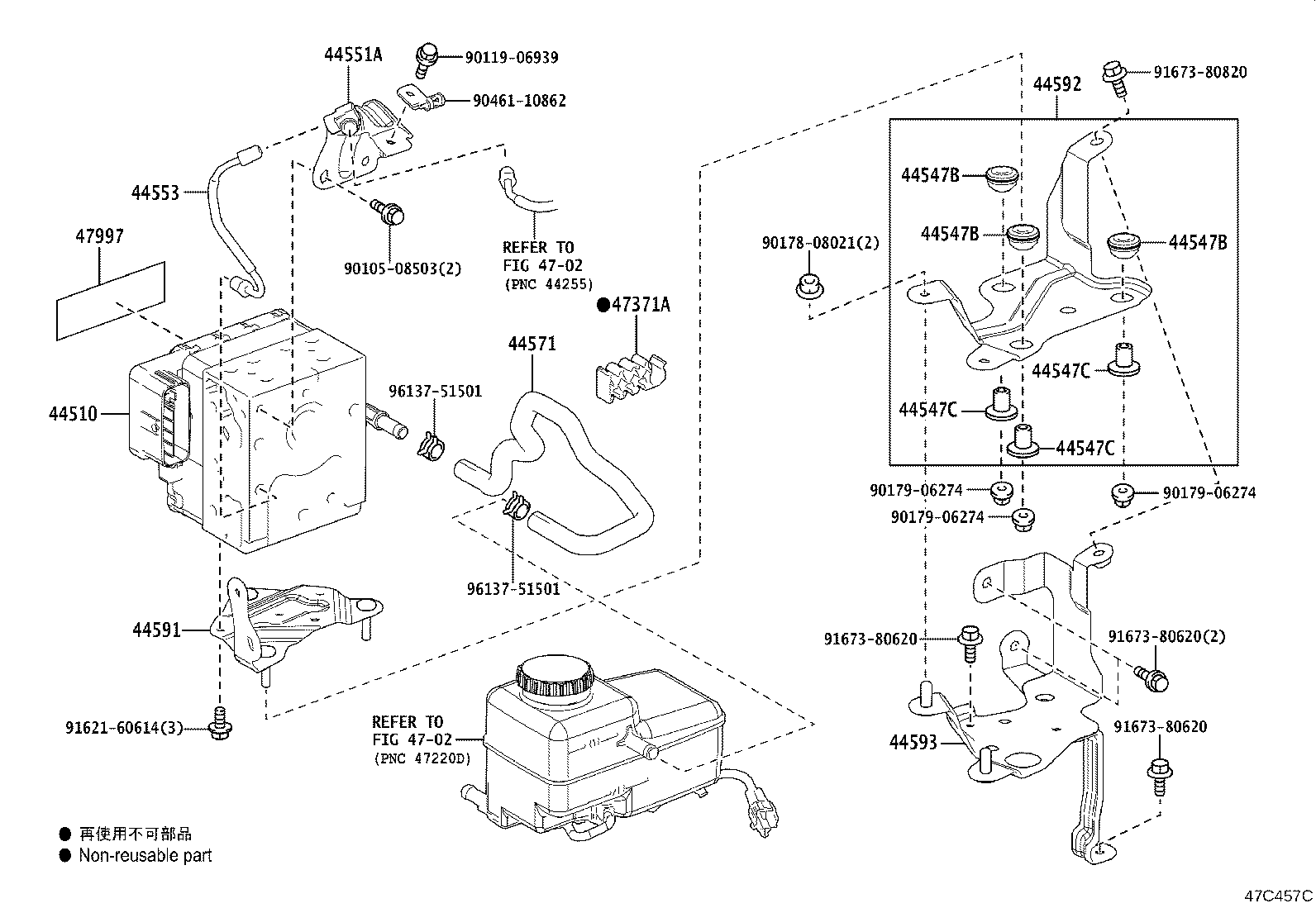

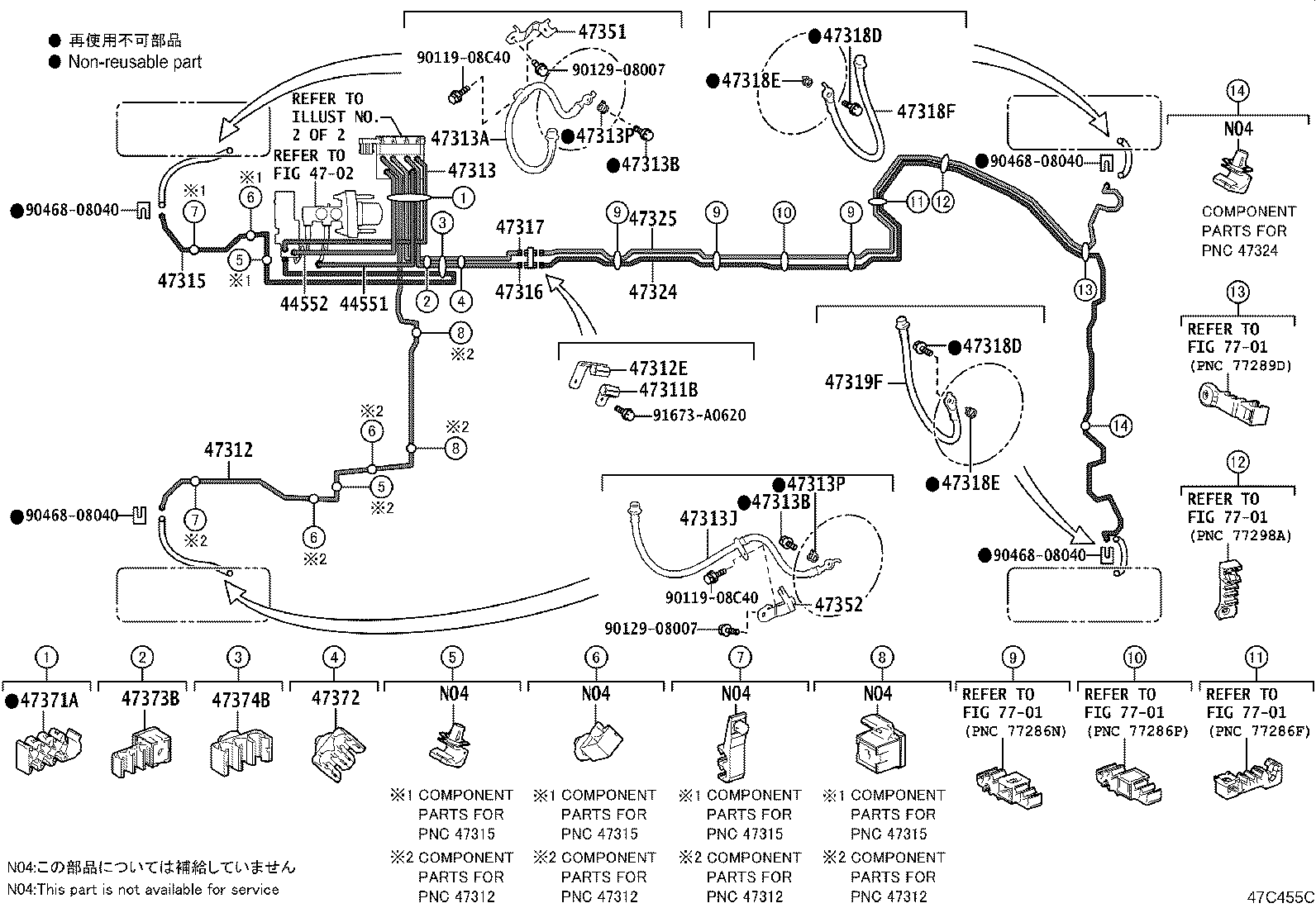

36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44547B | Cushion, Brake Actuator Bracket |
| 44547C | Spacer(FOR BRAKE ACTUATOR BRACKET) |
| 44551 | Tube, Brake Actuator, NO.1 |
| 44551A | Way, NO.1(FOR BRAKE ACTUATOR) |
| 44552 | Tube, Brake Actuator, NO.2 |
| 44553 | Tube, Brake Actuator, NO.3 |
| 44571 | Hose, Brake Actuator |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44592 | Bracket, Brake Actuator, NO.2 |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47997 | Label, Brake Booster Accumlator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
