Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06

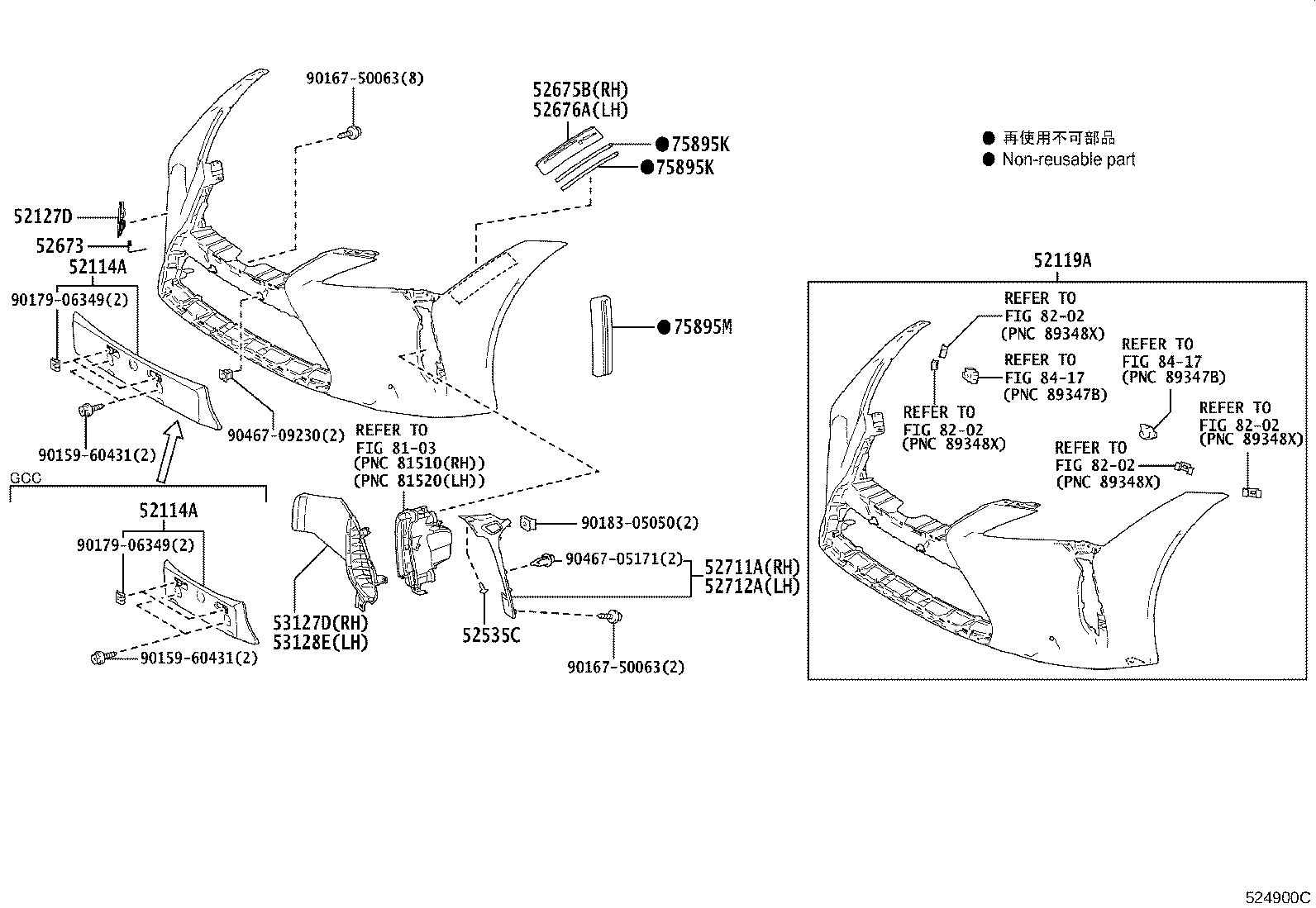

Front Bumper & Bumper Stay
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52127D | Cover, Front Bumper Hole, RH |
| 52147B | Bracket, Front Bumper Mounting |
| 52148H | Bracket, Front Bumper Mounting, NO.2 |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535C | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52673 | Arm, Front Bumper, NO.1 |
| 52675B | Support, Front Bumper Side, NO.1 RH |
| 52676A | Support, Front Bumper Side, NO.1 LH |
| 52711A | Garnish, Front Bumper |
| 52712A | Garnish, Front Bumper, LH |
| 53119J | Protector, Radiator Grille, RH |
| 53119K | Protector, Radiator Grille, LH |
| 53127D | Grille, Radiator, Lower Side RH |
| 53128E | Grille, Radiator, Lower Side LH |
| 53879H | Retainer, Front Fender Liner |
| 75895K | Tape, Moulding, NO.1 |
| 75895M | Tape, Moulding, NO.2 |
| 76851G | Grommet, Screw, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
