Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06

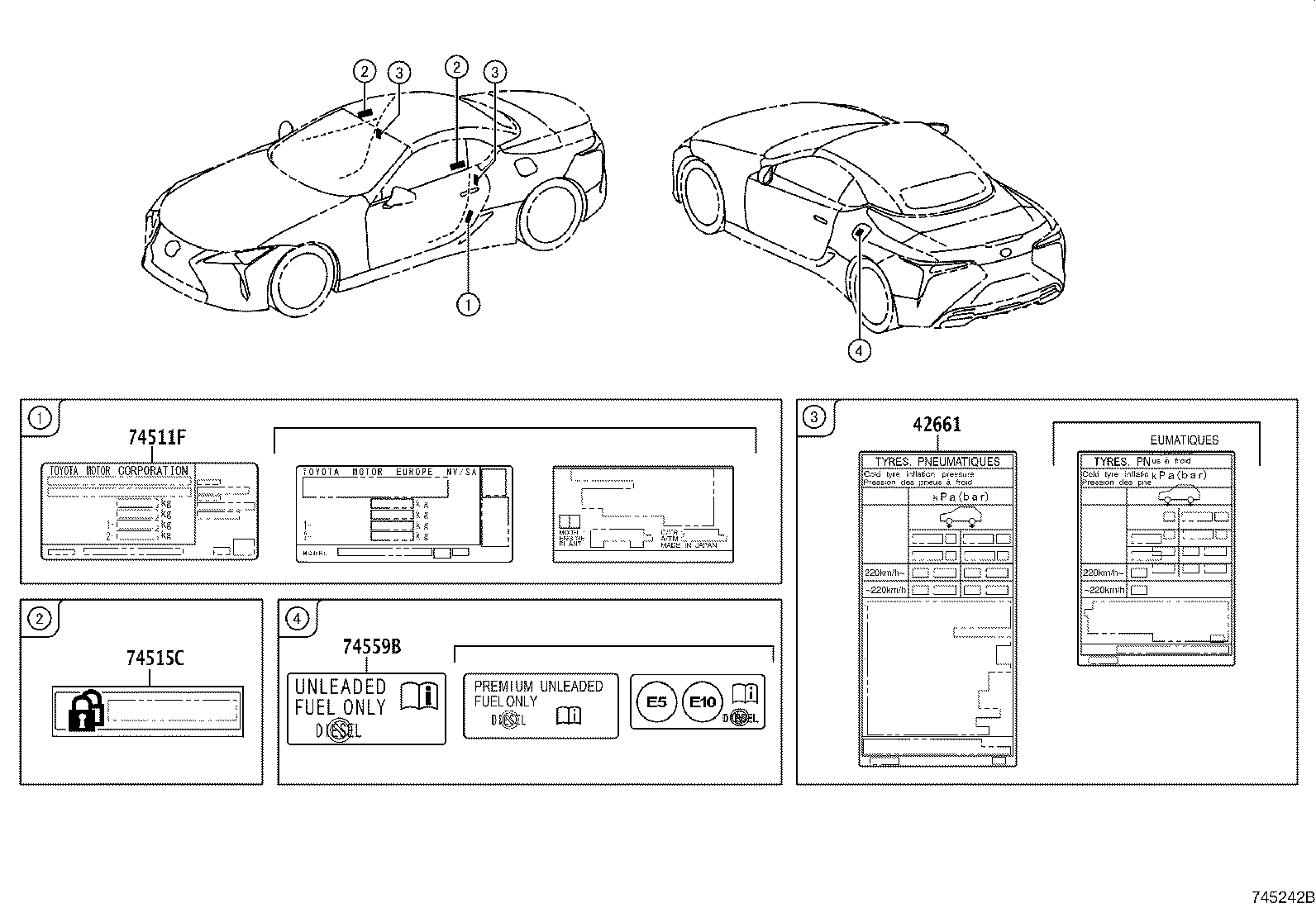

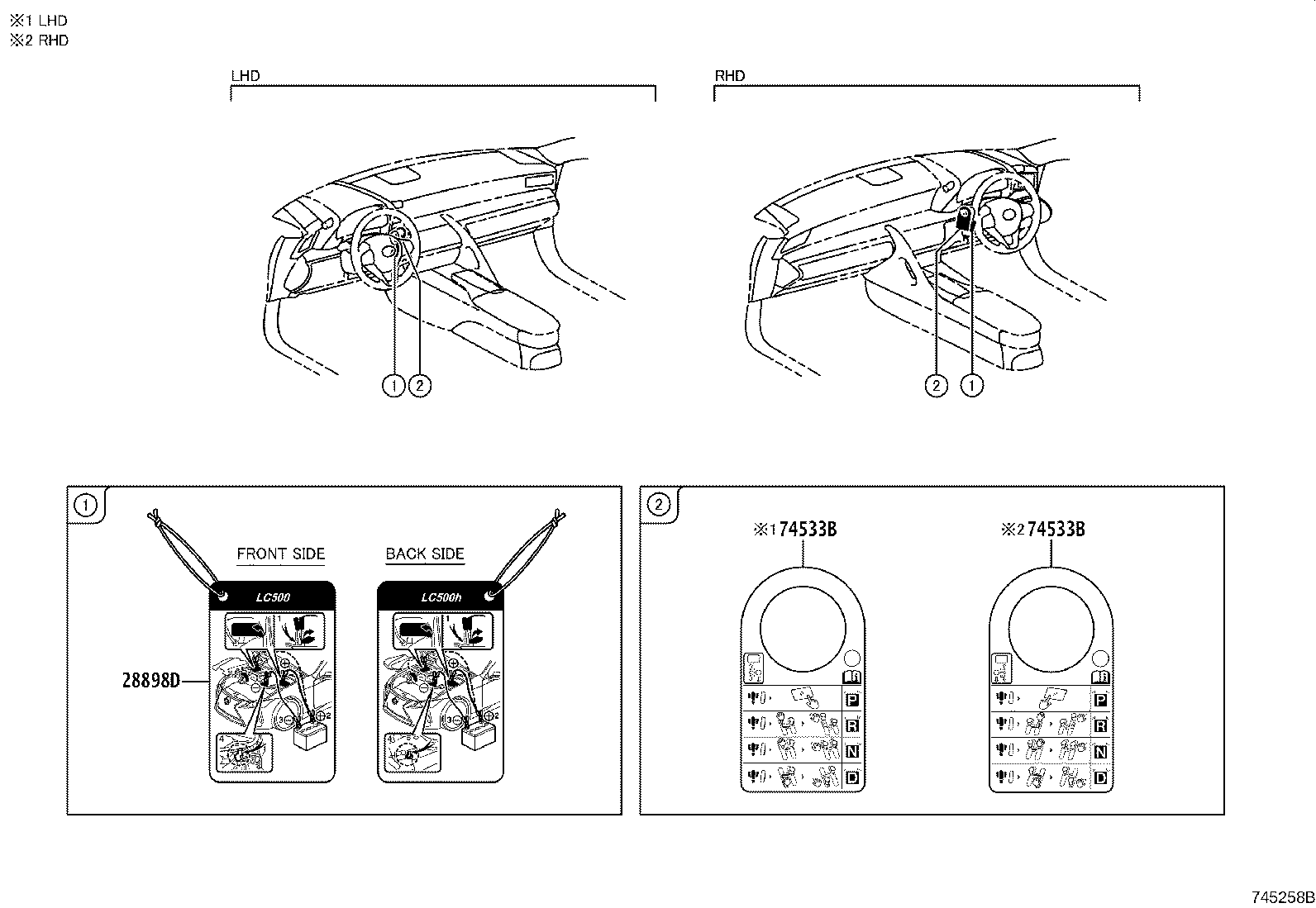

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 28812A | Label, Sub-battery Information |
| 28898D | Label, Battery Information |
| 42661 | Label, Tire Pressure Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74533B | Plate, Shifting Instruction |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
