Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

24 part groups · 2 illustrations

Illustrations

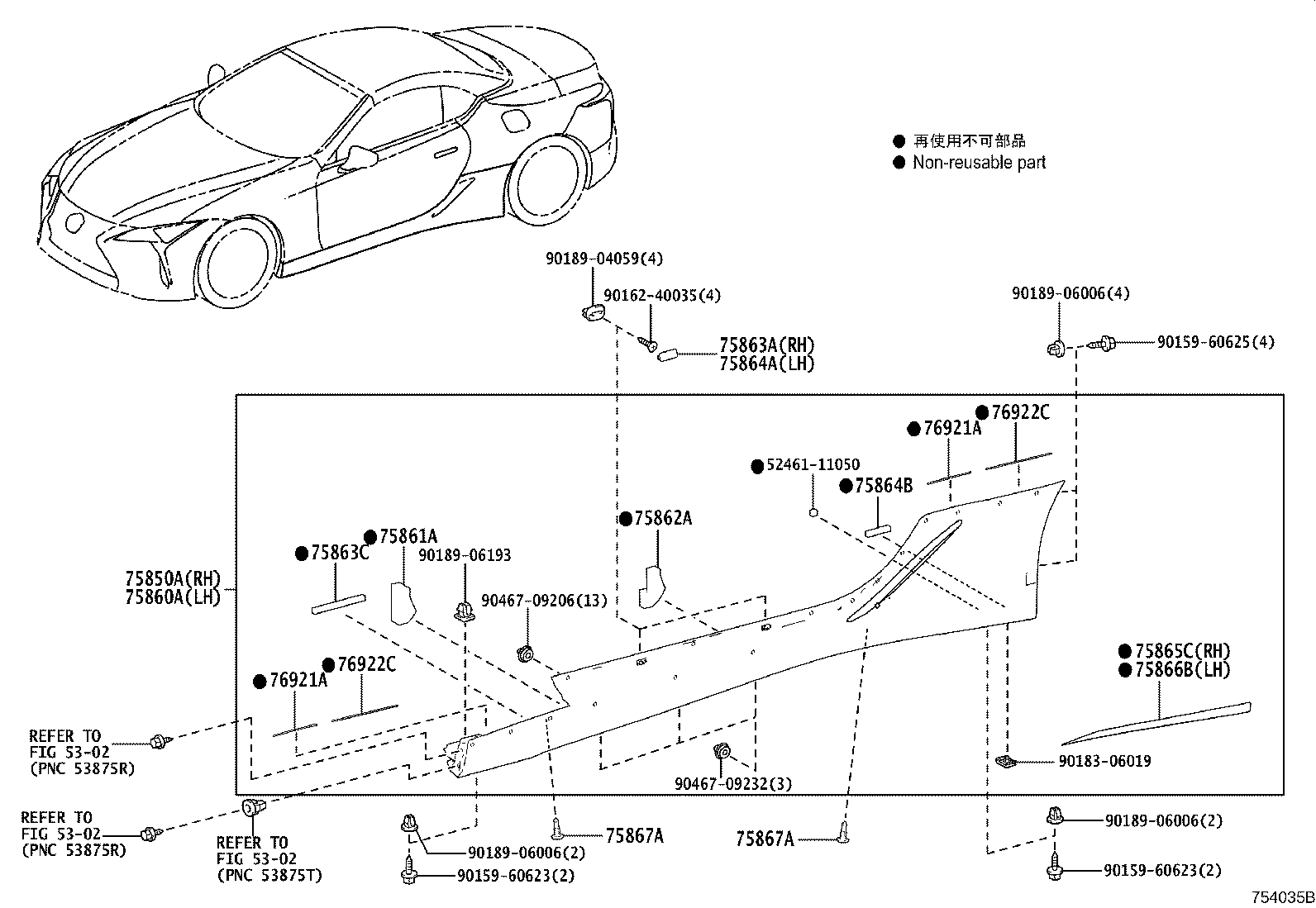

Figure 754034B 754034B 2020-07 → — Figure 754035B 754035B 2020-07 → —

Part groups

PNCDescription
67495C Cover, Front Door Front Lower Frame, Upper RH
67496C Cover, Front Door Front Lower Frame, Upper LH
75507B Garnish Sub-assy, Roof Side Rail, RH
75508B Garnish Sub-assy, Roof Side Rail, LH
75545E Clip, Roof Drip Side Finish Moulding, RH
75545G Clip, Windshield Outside Moulding, NO.1
75546C Clip, Roof Drip Side Finish Moulding, LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75850A Moulding Assy, Body Rocker Panel, RH
75860A Moulding Assy, Body Rocker Panel, LH
75861A Protector, Rocker Panel Moulding, NO.1
75862A Protector, Rocker Panel Moulding, NO.2
75863A Cover, Rocker Panel Moulding End, Rear RH
75863C Protector, Rocker Panel Moulding, NO.3
75864A Cover, Rocker Panel Moulding End, Rear LH
75864B Protector, Rocker Panel Moulding, NO.4
75865C Protector, Rocker Panel Moulding, NO.5
75866B Protector, Rocker Panel Moulding, NO.6
75867A Clip, Rocker Panel Moulding
76921A Protector, Side Mudguard, NO.1
76922C Protector, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
