Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

96 part groups · 5 illustrations

Illustrations

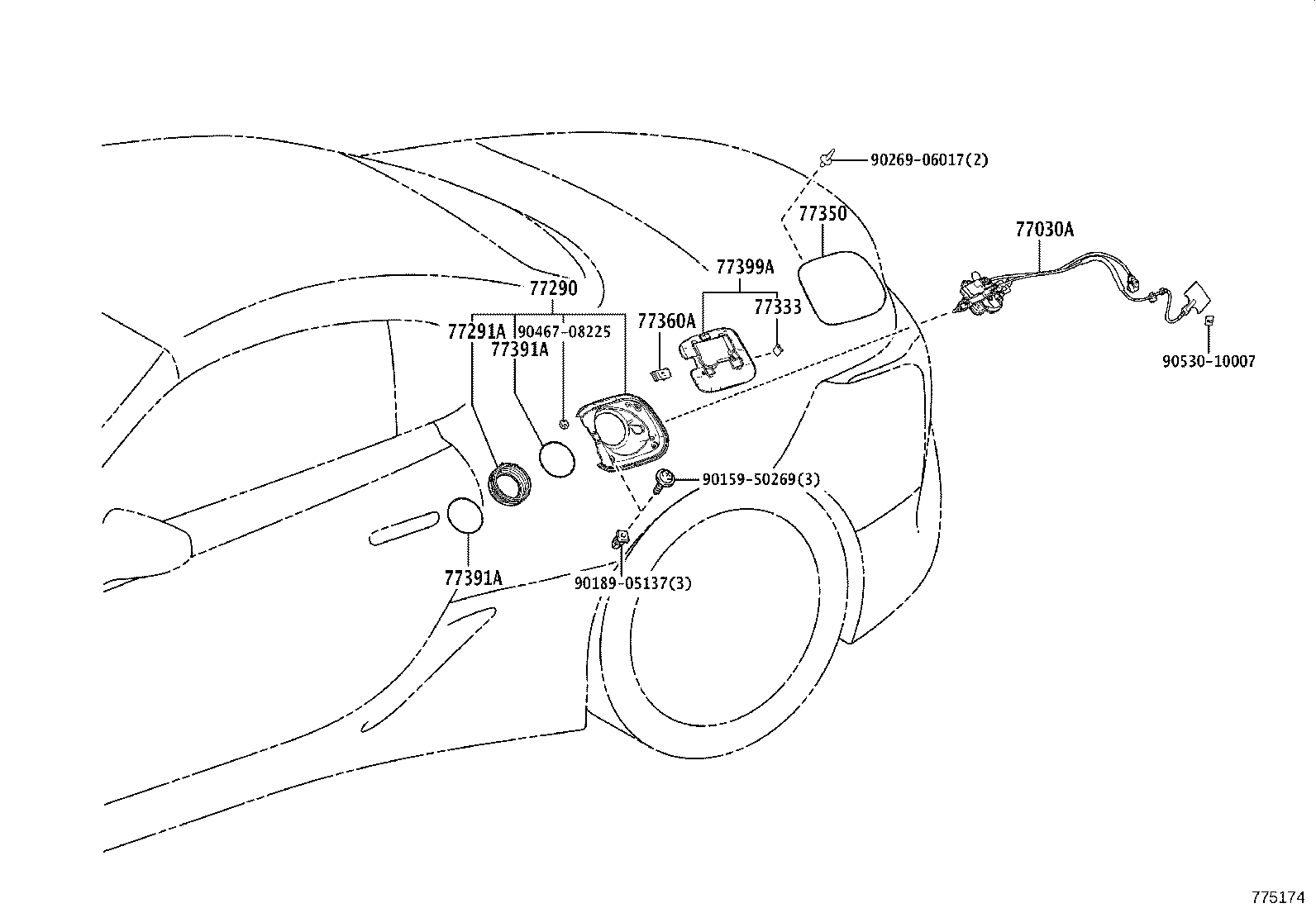

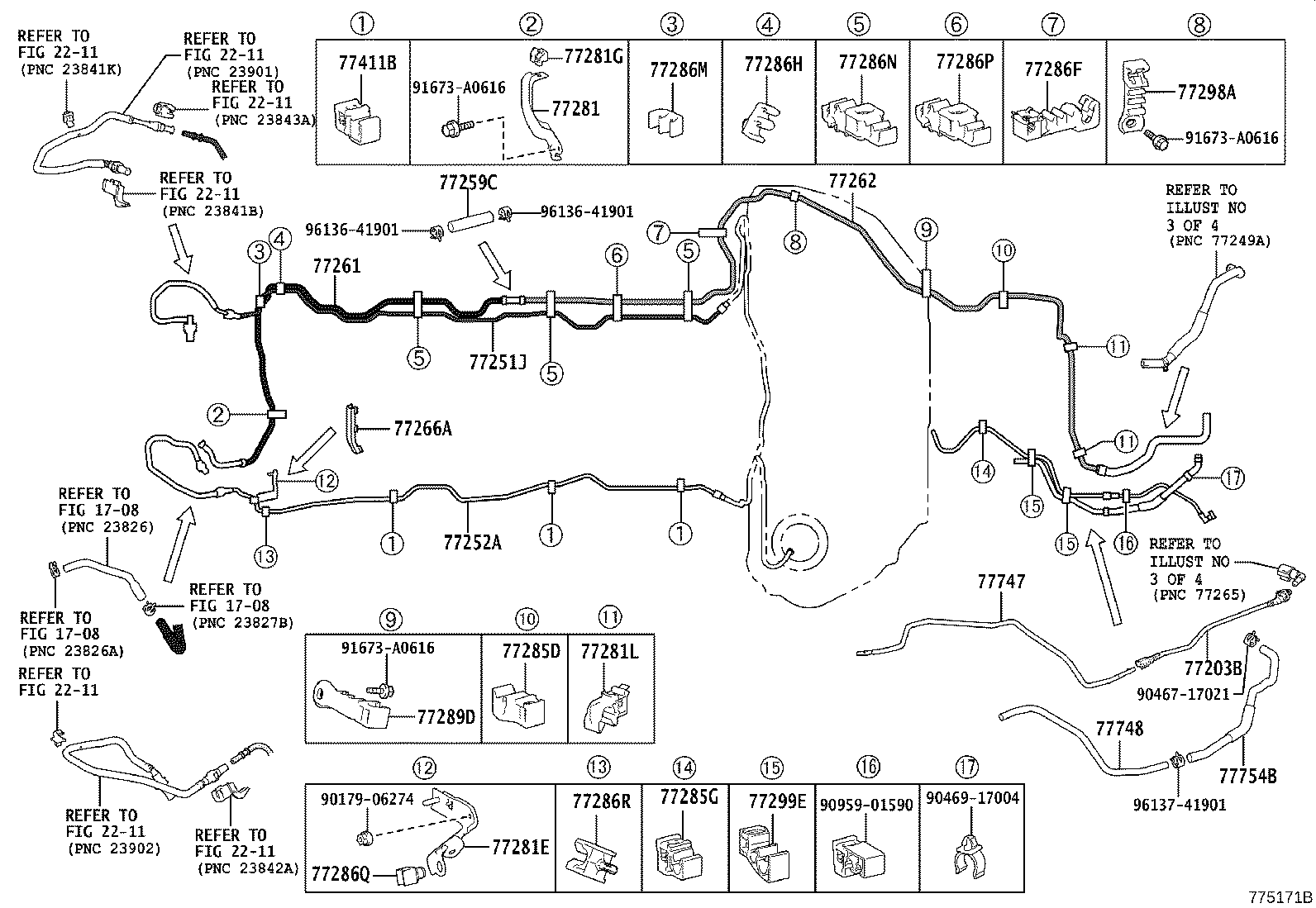

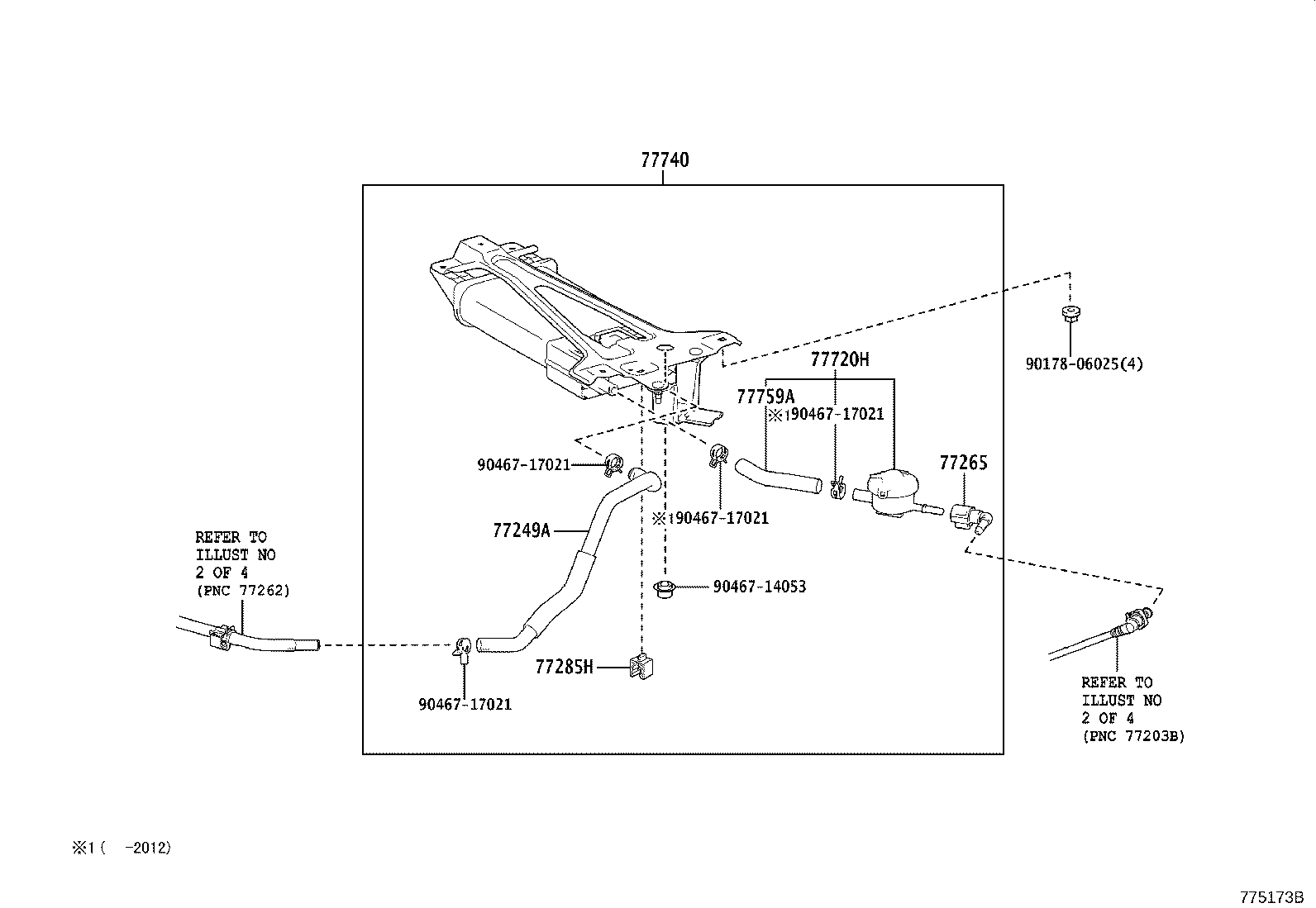

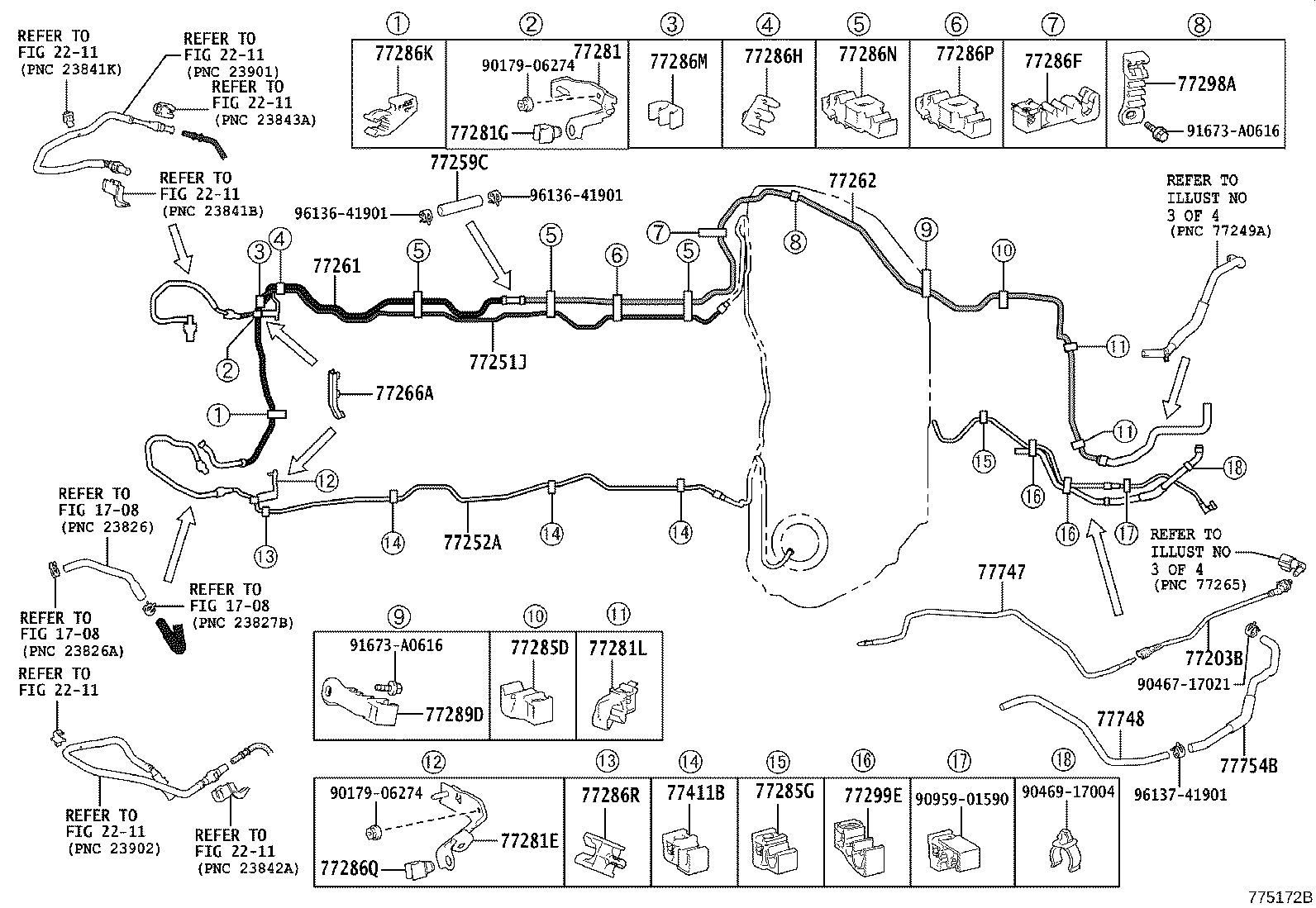

Figure 775170B 775170B 2020-07 → — Figure 775171B 775171B 2020-07 → — Figure 775172B 775172B 2020-07 → — Figure 775173B 775173B 2020-07 → — Figure 775174 775174 2020-07 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23283B Holder, Fuel Pressure Regulator
77012A Tube Sub-assy, Fuel Tank Breather, NO.1
77019J Tube Sub-assy, Fuel Tank TO Canister
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77030A Lock Assy, Fuel Lid W/Motor
77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77179A Gasket, Fuel Tank Breather Tube
77197A Clamp, Evaporation Vent Tube, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77203B Tube Sub-assy, Fuel Suction
77209F Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77226A Tube, Fuel Tank Breather, NO.6
77227B Tube, Fuel Tank Breather, NO.7
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251J Tube, Fuel Main, NO.1
77252A Tube, Fuel Main, NO.2
77259C Hose, Fuel
77261 Tube Sub-assy, Fuel Emission
77262 Tube, Fuel Emission, NO.2
77265 Connector, Fuel Main Tube
77266A Protector, Fuel Tube, NO.1
77269A Hose, Fuel Tank Breather
77272B Support, Breather Tube, NO.1
77281 Bracket, Fuel Main Tube, NO.1
77281A Clamp, Fuel Filler Pipe
77281E Bracket, Fuel Main Tube, NO.1
77281G Clamp, Fuel Hose
77281L Clamp, Fuel Hose
77285D Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286K Clamp, Fuel Tube, NO.2
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77286S Cushion, Fuel Tank Protector
77288 Clamp, Breather Hose
77289B Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77289D Clamp, Fuel Tube, NO.5
77289E Clamp, Fuel Tank, NO.1
77290 Shield Assy, Fuel Tank Filler Pipe
77291A Shield, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77299E Clamp (FOR CHARCOAL CANISTER PIPE)
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77333 Clip, Fuel Lid Switch
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77391A Ring, Fuel Inlet Box
77399A Cover, Fuel Filler Opening Lid
77411B Support, Fuel Tube Grommet, NO.1
77601A Band Sub-assy, Fuel Tank, NO.1
77606 Protector Sub-assy, Fuel Tank, NO.1
77607C Protector Sub-assy, Fuel Tank, NO.2
77613 Bolt, Fuel Tank Band Set
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77654A Cushion, Fuel Tank, NO.4
77681A Seat, Fuel Tank Band
77720H Valve Assy, Fuel Outlet
77740 Canister Assy, Charcoal
77747 Pipe, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77754A Hose, Charcoal Canister Outlet, NO.2
77754B Hose, Charcoal Canister Outlet
77754C Hose, Fuel Tank Breather
77759A Hose, Charcoal Canister
77777 Bracket, Fuel Tube Clamp
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
